Economy choice, Reliable quality, Easy operation, widely application
Superb cosmetic, slim housing
On-screen display (OSD)
LeadingTouch Multitouch 10point project capacitive touch technology
Front Bezel meet IP65 waterproof, and 3mm anti-vandal cover glass
Standard VESA hole as mounting option
Multi-interface apply to various mounting or connection

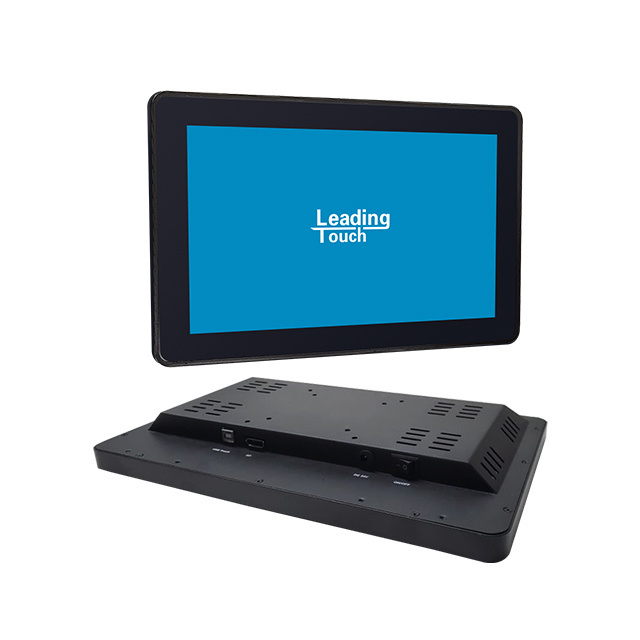

TM-1362 is 13.3inch 10point multitouch project capacitive open frame touch monitor; cost-effective touch solution which is designed for kiosk, ATM, Gaming, Casino, Interactive digital, Industrial, Education, Transportation etc., is easily connected and integrated by user.
|
13.3" Project Capacitive Multitouch Open Frame Touch Monitor
|
|
|
|
Products Model
|
TM-1362-G312BL
|
|
|
Description
|
13.3” Multitouch Capacitive Open Frame Touch Monitor
|
|
|
Case/Bezel Color
|
Steel/Black
|
|
|
Display Size
|
13.3inch 16:9 Active Matrix TFT LCD
|
|
|
Useful Screen Area
|
166.6mm x 295mm
|
|
|
Optimal Resolution
|
1920 x 1080
|
|
|
Color Depth
|
8bit,16.7 Million colors
|
|
|
Brightness
|
300cd/m²
|
|
|
Contrast Ratio
|
800:1 (Typical)
|
|
|
Viewing Angle(CR≥10)
|
Right/Left 85º/85º Up/Down 85º/85º
|
|
|
Video Input Format
|
VGA,DVI,HDMI Option
|
|
|
Input Video Signal Connector
|
VGA,DVI,HDMI Option
|
|
|
On Screen Display(OSD)
|
Controls(back):On/Off, Menu, Left, Right, Auto
|
|
|
Backlight Lamp Life
|
50000hrs
|
|
|
Touch Technology
|
PCAP (Project Capacitive) Multitouch Touch Technology
|
|
|
Touch Point
|
Standard 10point, Max 40point(option)
|
|
|
Touch Port Interface
|
USB interface
|
|
|
Touch Cover_Glass
|
3mm Physical Tempered Anti-vandal Glass(AR, AG option)
|
|
|
Support OS
|
HID-Mode: Windows7/8/10, Linux, Android, Mac etc.
|
|
|
Mounting Options
|
VESA Mount 75x75 and 100x100, Four side bracket option
|
|
|
Power Supply
|
External Adapter: 100-240VAC, 50-60Hz
|
|
|
Temperature Range
|
Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
|
|
|
Humidity Range(no condensing)
|
Operating: 20%-80%; Storage: 10%-90%
|
|
|
Dimension
|
334.5mm x 206.1mm x 41.5mm
|
|
|
Warranty
|
1 year
|
|
|
Agency Approvals
|
CCC, FCC, CE, RoHS
|
|
|
Q1: What is your main size for your PCAP capacitive touch screen monitor?
|
|
|
|
|
||||
|
A1: 7” 10.1” 10.4” 12.1” 13.3” 14” 15” 15.6” 17” 17.3” 18.5” 19” 19”W 19.5"
21.5” 22” 23” 23.8” 24” 27” 32” 43” 55” 65”
|
|
|
|
|
||||
|
Q2: Is it waterproof? Vandal proof?
|
|
|
|
|
||||
|
A2: Yes, the front panel is waterproof. It is anti-vandal.
|
|
|
|
|
||||
|
Q3: Is it anti-glare?
|
|
|
|
|
||||
|
A3: If you need anti-glare one, pls tell us before make order.
|
|
|
|
|
||||
|
Q4: Is the monitor IPS? Do you have 2K or 4K monitor?
|
|
|
|
|
||||
|
A4: Yes, we have IPS, 2K, 4K different type, any requirement pls contact us get confirm.
|
|
|
|
|
||||
|
Q5: Whether LeadingTouch PCAP capacitive touch screen monitor support OEM?
|
|
|
|
|
||||
|
A5: Yes, we support customization with size, brightness, function, appearance, resolution, etc.
|
|
|
|
|
||||
|
Q6: What is your capacitive touch monitor application?
|
|
|
|
|
||||
|
A6: Desktop touchmonitors, Open Frame Touchmonitors, Interactive Digital Signage, Point-of-information kiosks, Point-of-sale (POS) terminals, Gaming and lottery terminals, Self-service/Self-automation
Public environments : Hotel lobbies, Office buildings, Auto dealerships, Bank, Gaming casinos, Healthcare waiting rooms, Retail stores and train stations, Industrial Control, Education, Artificial Intelligence, etc. |
|
|
|
|
||||
|
Q7: What is your payment method?
|
|
|
|
|
||||
|
A7: T/T, Paypal, Credit card, secure payment on alibaba.
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
Q8: What is your guarantee period?
|
|
|
|
|
||||
|
A8: 1 Year. If you have any requirement, pls contact us.
|
|
|
|
|
||||
