Quick Details
-
Manufactory:
-
XKJGROUP
-
Color:
-
The order
-
Capacity:
-
The contract
-
Advantage:
-
China Top Cement Institution Grade
-
Rotary kiln:
-
Cement Rotary kiln
-
Brand:
-
famous brand
-
Name:
-
300tpd cement production line castable refractory for rotary kiln
Quick Details
-
Place of Origin:
-
Henan, China
-
Product name:
-
Cement production plant line
-
Application:
-
Construction,etc.
-
Manufactory:
-
XKJGROUP
-
Color:
-
The order
-
Capacity:
-
The contract
-
Advantage:
-
China Top Cement Institution Grade
-
Rotary kiln:
-
Cement Rotary kiln
-
Brand:
-
famous brand
-
Name:
-
300tpd cement production line castable refractory for rotary kiln
Delivery and packing

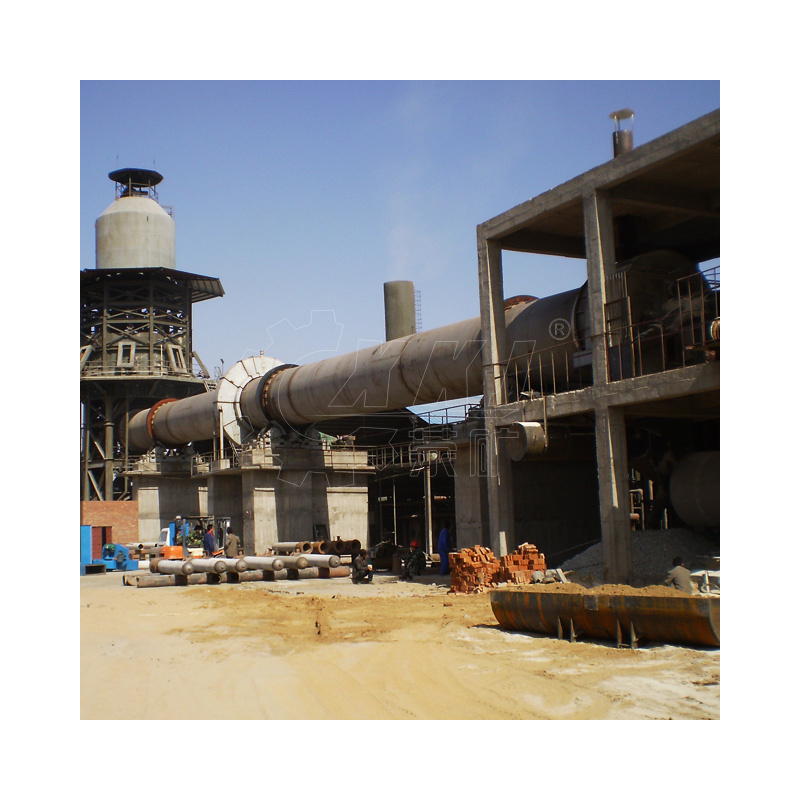

Rotary kiln is also known as rotation kiln. There are many kinds of rotary kiln produced by our company,according to applicable industries, it is divided into metallurgical rotary kiln and chemical rotary kiln; According to the applicable materials, it can be divided into cement rotary kiln, lime kiln, ceramic sand rotary kiln, metal magnesium rotary kiln, bauxite kiln etc.The rotary kiln is composed of barrel, supporting device, catch wheel supporting device, transmission device, movable kiln head, kiln tail sealing device, and coal injection pipe device.
Rotary Kiln is the key equipment dry -process and wet -process production line, and is also used in various industries such as metallurgical , chemical industry ,building refractory ,environ mental protection industry , etc .
|
Product Specification (m) |
Kiln dimensions |
Motor power (kw) |
Total weight (t) |
note | ||||
|
Diameter (m) |
Length (m) |
Obliquity (%) |
Capacity (t/d) |
Rotation speed (r/min) |
||||
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 | ----- |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 | ----- |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 280 | 0.48-1.45 | 55 | 196.29 | outside disassemble kiln |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 | ------ |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 450 | 0.437-2.18 | 55 | 201.58 | outside disassemble kiln |
| Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 | ------ |
| Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 | outside disassemble klin |
| Φ3.0×60 | 3 | 60 | 3 | 800 | 0.3-2 | 100 | 310 | ------ |
| Φ3.2×50 | 3.5 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 | disassemble klin |
| Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 | kiln with preheater precalcine |
| Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 | kiln with prehrater precalcine |
| Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 | Generating klin for usimg ofterheat |
| Φ4.0×56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | 456 | klin with prehrater precalcine |
| Φ4.0×60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | 510 | klin with prehrater precalcine |
| Φ4.2×60 | 4.2 | 60 | 4 | 2750 | 0.41-4.07 | 375 | 633 | klin with prehrater precalcine |
| Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | 583 | klin with prehrater precalcine |
| Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 | klin with prehrater precalcine |
| Φ4.7×74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 | 849 | klin with prehrater precalcine |
| Φ4.8×74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 | 899 | klin with prehrater precalcine |
| Φ5.0×74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 | 944 | klin with prehrater precalcine |
| Φ5.6×87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 | 1265 | klin with prehrater precalcine |
| Φ6.0×95 | 6 | 95 | 4 | 10000 | Max5 | 950×2 | 1659 | klin with prehrater precalcine |
About Us
Henan Xingkuang Machinery Co., Ltd., is a large sized joint-stock enterprise integrated with the scientific research,production and sales of heavy mining machinery. The company have five standard heavy industrial workshops covering 80,000 square meters,more than 160 machines used for gold processing,plug welding and assembling with large and medium sizes, and more than 500 works including over 50 administrators with intermediate and senior title and engineering technicians.
