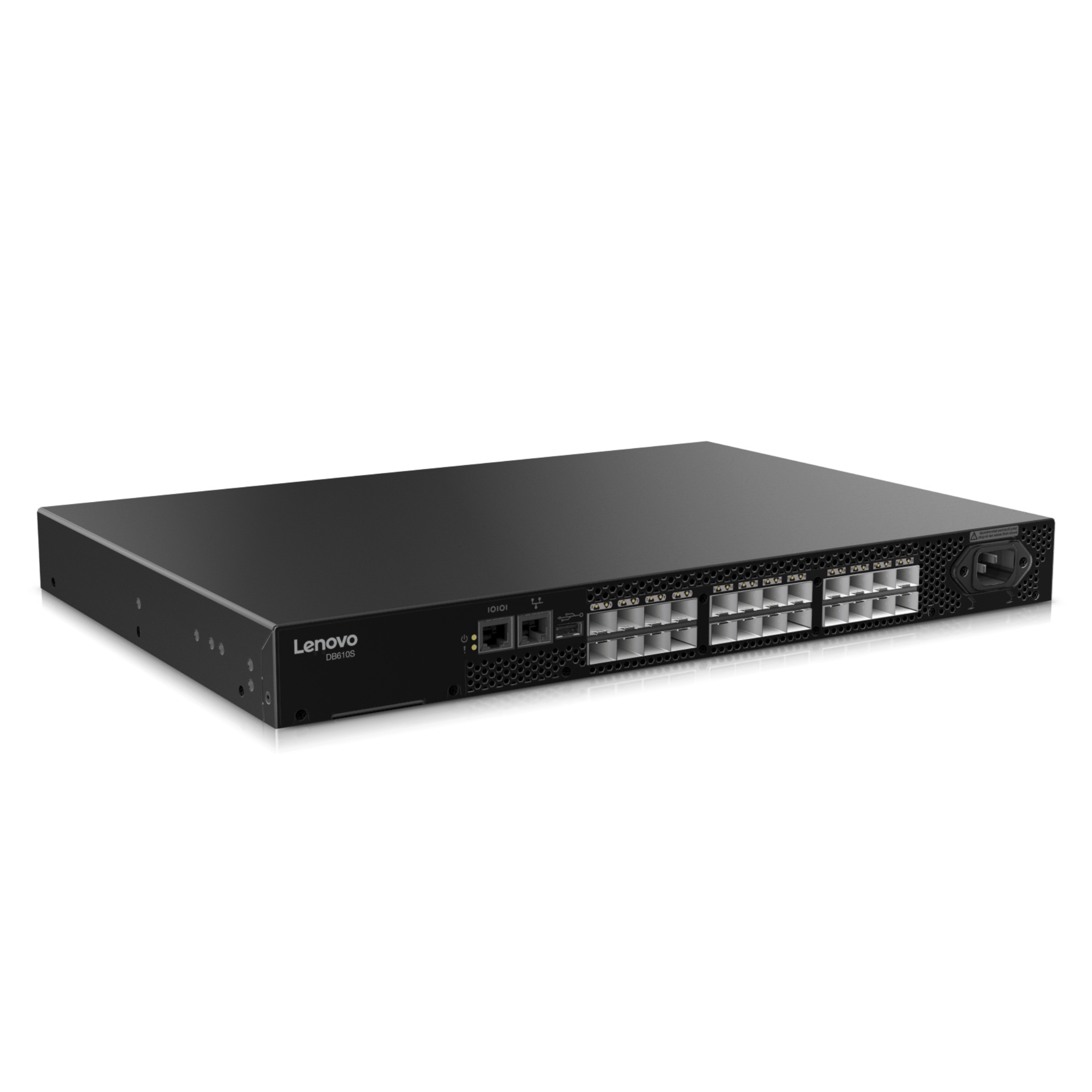

Lenovo Original lenovo switch Lenovo ThinkSystem DB610s Gen 6 FC SAN Switch 24x SFP+ optical switch

Lenovo Original lenovo switch Lenovo ThinkSystem DB610s Gen 6 FC SAN Switch 24x SFP+ optical switch

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2460

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Lenovo

Use:: Storage fiber switch

Form factor:: 1U rack mount

Ports:: 24x SFP+ physical ports

Media types:: 32 Gb FC SFP+ transceivers: 16 Gb FC SFP+ transceivers:

Classes of service:: Class 2, Class 3, Class F (inter-switch frames)

Data traffic types:: Unicast multicast, broadcast

Optional features:: Enterprise Bundle

Cooling:: Four fixed fans with N+1 cooling redundancy

Power supply:: One fixed 150 W AC (100 - 240 V) power supply

Hot-swap parts:: SFP+ transceivers

Weight:: 4.2 kg (9.3 lb)

Quick Details

Type:: Enterprise Switch

Model Number:: DB610S

Place of Origin:: China

Brand Name:: Lenovo

Use:: Storage fiber switch

Form factor:: 1U rack mount

Ports:: 24x SFP+ physical ports

Media types:: 32 Gb FC SFP+ transceivers: 16 Gb FC SFP+ transceivers:

Classes of service:: Class 2, Class 3, Class F (inter-switch frames)

Data traffic types:: Unicast multicast, broadcast

Optional features:: Enterprise Bundle

Cooling:: Four fixed fans with N+1 cooling redundancy

Power supply:: One fixed 150 W AC (100 - 240 V) power supply

Hot-swap parts:: SFP+ transceivers

Weight:: 4.2 kg (9.3 lb)

Form factor	Standalone or 1U rack mount
Ports	24x SFP+ physical ports
Media types	* 32 Gb FC SFP+ transceivers: short wavelength (SWL), long wavelength (LWL) * 16 Gb FC SFP+ transceivers: SWL, LWL, extended long wavelength (ELWL)
Port speeds	* 32 Gb FC SFP+ transceivers: 32/16/8 Gbps auto-sensing * 16 Gb FC SFP+ transceivers: 16/8/4 Gbps auto-sensing
FC port types	* Full Fabric mode: F_Port, M_Port (Mirror Port), E_Port, D_Port (Diagnostic Port) * Access Gateway mode: F_Port and NPIV-enabled N_Port
Standard features	Full Fabric mode, Access Gateway, Advanced Zoning, Fabric Services, Adaptive Networking, Advanced Diagnostic Tools
Performance	Non-blocking architecture with wire-speed forwarding of traffic: * 4GFC: 4.25 Gbit/sec line speed, full duplex * 8GFC: 8.5 Gbit/sec line speed, full duplex * 16GFC: 14.025 Gbit/sec line speed, full duplex * 32GFC: 28.05 Gbit/sec line speed, full duplex * Aggregated throughput: 768 Gbps * Up to 0.9 µs local switching latency
Scalability	* Maximum number of switches in the fabric: 239 * Maximum frame size: 2,112-byte payload * Maximum number of frame buffers per switch: 2,000 * Maximum number of ports per ISL trunk: 8x SFP+
Cooling	Four fixed fans with N+1 cooling redundancy. Non-port to port side airflow
Power supply	One fixed 150 W AC (100 - 240 V) power supply (IEC 320-C14 connector)
Hot-swap parts	SFP+ transceivers
Management ports	One 10/100/1000 Mb Ethernet port (UTP, RJ-45); one RS-232 port (RJ-45); one USB port
Dimensions	Height: 43 mm (1.7 in.); width: 429 mm (16.9 in.); depth: 307 mm (12.1 in.)
Weight	Empty: 4.2 kg (9.3 lb); Fully configured: 5.8 kg (12.7 lb)

Introduction

The Lenovo ThinkSystem DB610S FC SAN Switch provides exceptional price/performance value by delivering market-leading 32 Gb Gen 6 Fibre Channel technology and combining flexibility, simplicity, and enterprise-class functionality to meet the demands of growing
flash-based storage environments.

Designed to enable maximum flexibility and reliability, the ThinkSystem DB610S is a compact, 1U rack-mount FC switch that offers low-cost access to industry-leading Storage Area Network (SAN) technology while providing “pay-as-you-grow” scalability to meet
the needs of an evolving storage environment.
The DB610S FC SAN Switch offers 24x SFP+ ports that support 4/8/16/32 Gbps speeds.

The DB610S FC SAN switch provides easy integration into the existing SAN environments while realizing the benefits of Gen 6 Fibre Channel connectivity, and the switch offers a rich set of standard features with the options to expand its capabilities as needed.
The DB610S FC SAN Switch can be configured in Access Gateway Mode to simplify deployment. The switch provides full non-blocking performance with Ports On Demand scalability to support SAN expansion and enable long-term investment protection.
