Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
E-XON CNG kits
-
Car Model:
-
ALL
-
Car Make:
-
8 cyl. Vehicle
-
Model Number:
-
V5.0 Power Up (8cyl.)
-
Type:
-
CNG kits
-
Name:
-
CNG kits
-
Certification:
-
ECE, ISO15500,BV...
-
CNG kits:
-
ECU, Harness, Switch, Water Temperature Sensor
-
ECU:
-
V5.0 (6,8cyl.)
-
Reducer:
-
PRG3X CNG Reducer or SGV CNG Reducer
-
Rail Injection:
-
VIT-V rail injector
-
Function:
-
Gas leak alarm prompt
Quick Details
-
OE NO.:
-
EXCS816
-
Size:
-
30cm x 30cm x 25cm cartoon
-
Warranty:
-
1 Years
-
Place of Origin:
-
China
-
Brand Name:
-
E-XON CNG kits
-
Car Model:
-
ALL
-
Car Make:
-
8 cyl. Vehicle
-
Model Number:
-
V5.0 Power Up (8cyl.)
-
Type:
-
CNG kits
-
Name:
-
CNG kits
-
Certification:
-
ECE, ISO15500,BV...
-
CNG kits:
-
ECU, Harness, Switch, Water Temperature Sensor
-
ECU:
-
V5.0 (6,8cyl.)
-
Reducer:
-
PRG3X CNG Reducer or SGV CNG Reducer
-
Rail Injection:
-
VIT-V rail injector
-
Function:
-
Gas leak alarm prompt
CNG Sequential Injection System Conversion Kit (8cyl. ) V5.0 Power Up
Sequential Injection Kit 6 Cylinders — V5.0-6cyl.
V5.0 6/8cyl. Power Up sequential injection system designed for 6cyl, 8cyl engine. Equipped with powerful ECU V5.0, noiseless rail injector, provide stronger power and quiet drive experience. Advanced & simple interface with auto-calibration save more time. Open-loop function and detailed MAP table will save power more than 90% in Euro IV emission conditions. Sensata HP sensor with digital switch showing the gas level in figure.

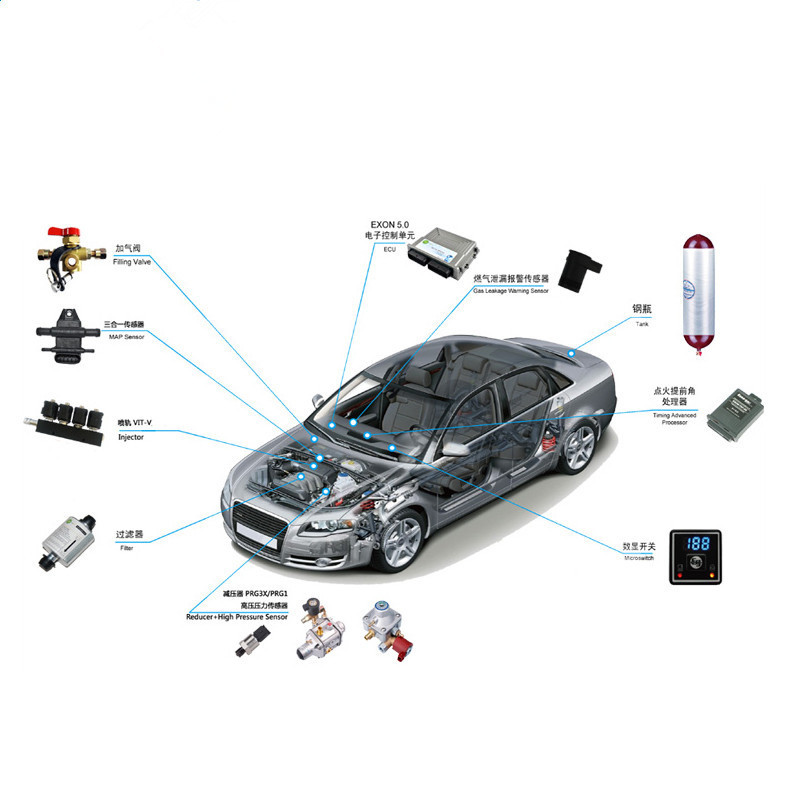

V 5.0-6/8cyl. CNG System kits Diagram :
V 5.0-8cyl. CNG System Kits List :
|
No. |
products name |
specification |
QTY. |
|
Electronic control system: |
|||
|
1 |
V5.0 ECU-6/8cyl |
V5.0-08-02 |
1 |
|
2 |
HarnessV5.0 8cyl |
HARNESS-V5.0-8-J |
1 |
|
3 |
Switch |
K10 |
1 |
|
4 |
Water TEMP. sensor |
4.7K |
2 |
|
6 |
3 in 1 Map sensor |
MPT01 |
1 |
|
7 |
High pressure sensor |
AB03WL |
1 |
|
Reducer: |
|||
|
8 |
CNG Sequential Injection reducer |
PRG3X(Without Water TEMP.sensor) |
2 |
|
Injector: |
|||
|
9 |
Injector |
VIT-V |
2 |
|
Other parts: |
|||
|
10 |
Pressure Gauge(5V-5-0) |
G806 |
1 |
|
11 |
Gas filter |
GLQ-11 |
2 |
|
12 |
High pressure pipe 6m/ φ6mm |
GYG-6 |
2 |
|
13 |
Vacuum hose 1m/φ4mm |
GJ004 |
3 |
|
14 |
Gas hose 1.2m/φ10.5mm |
GJ002 |
2 |
|
15 |
Gas hose 1.2m/φ5.5mm |
GJ003 |
2 |
|
16 |
Water hose 1m/φ7mm |
GJ001 |
3 |
|
17 |
Venting hose 0.8m/φ30mm |
GJ005 |
1 |
|
18 |
CNG 8cyl sequential injection accessory kits |
CNGFJB8 |
1 |
|
19 |
Nylon Strap |
NL01 |
10 |
V 5.0-6/8cyl. ECU :
V 5.0-6/8cyl. Software :
Smart Cellphone Calibration APP
|
MOQ |
100 Sets |
|
Package |
PE film, Foam corner, E-XON cartons |
|
Delivery Terms |
FOB, CFR, CIF, EXW, DDU, Express delivery |
|
Delivery Time |
20 days after confirmation |
|
Payment Terms |
T/T, L/C, Paypal,Western, Union |
|
Port |
Any Port, nearest is Shanghai port |
