Quick Details
-
Model Number:
-
AM-1308
-
Max. Current:
-
15A
-
Operating Temperature:
-
-15℃~+85℃
-
Protection Level:
-
IP40
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
AP, Auspicious
-
Model Number:
-
AM-1308
-
Max. Current:
-
15A
-
Operating Temperature:
-
-15℃~+85℃
-
Protection Level:
-
IP40

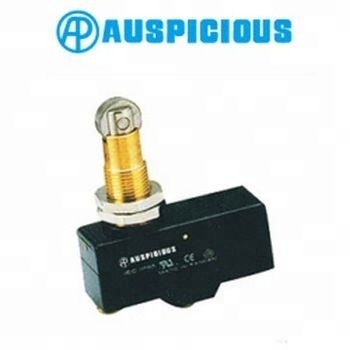

AM-1308 Z SERIES MICRO SWITCH
FEATURES
- Regular of sealed operating heads.
- Momentary contacts.
- Completely sealed constructure.
- Wide choice of heads and actuators.
- Plastic (Standard) or phenolic housing.
- Regular of light operating force.
- Temperature range +5°F to +175°F (-15°C to +80°C)
CHARACTERISTICS
| Operating Speed | 0.01mm to 1m/sec |
| Operating Frequency |
Mechanically: 240 operations/min. Electrically: 20 operations/min. |
| Contact Resistance | 15m Ω max. (initial) |
| Insulation Resistance | 100m Ω min. (at 500VDC) |
| Dielectric Strength |
1,000VAC, 50/60HZ for 1 minute between non-continuous terminals. 2,000VAC, 50/60HZ for 1 minute between current-carry part and ground. |
| Vibration | Malfunction durability: 10 to 55HZ 1.5mm double amplitude |
| Shock |
Mechanical durability: Approx. 1,000m/sec2 (approx. 100G's) Malfunction durability: Approx. 300m/sec2 (approx. 30G's) |
| Ambient Operating |
General purpose type: -25°C to +80°C
Sealed type: -15 ° C to +8 ° C |
| Temperature | |
| Humidity |
General purpose type: 85% RH max. Sealed type: 95% RH |
| Service Life |
Mechanically: 20,000,000 operations min. Electrically: 500,000 operations min. |
Please visit www.auspicious.com.tw for more detail information.
