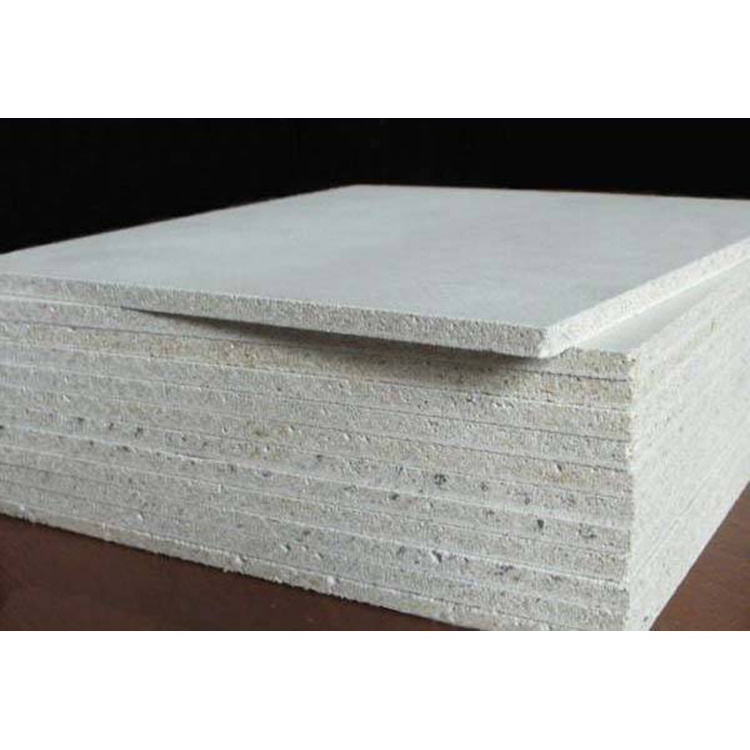

Asbestos Free Light Weight Fire Resistant Fireproof Material Mgo Board
SPECIFICATION
|
Convenient construction |
Durable Waterproof Fireproof Superior Cleanroom Wood Veneer Mgo Board is a kind of environmental friendly light weight construction material, and this new frameless decorative material is 100% no Asbestos Contained and no radioactivity. |
|
Raw material |
The materials of magnesium oxide board are Magnesia(MGO), Magnesium Chlorid(Mgcl2)and Alkali glass fiber net. |
|
Size |
1200*2400/ 1220*2440/ 1200*3000mm |
|
Thickness |
3.5-20mm |
|
Product capacity |
10,000/day |
|
Notes |
other specifications are available |
TECHNICAL DATA
|
Density |
0.95g/cm³ |
|
Bending strength |
19.5MPa |
|
Typical moisture content |
6% |
|
Drying shrinkage |
0.26% |
|
Moisture movement |
0.50% |
|
Impact strength |
6.2KJ/m² |
|
Pull put force of Screw |
37.1N/mm |
|
Non combustible performance |
According to GB8624-1997, Combustibility is A1 Class. |
|
Fire rating limited |
6mm:>2Hours; 12mm:>4Hours; |
|
Thermal Coefficient |
0.109W/(m.k) |
DESCRIPTION
Durable Waterproof Fireproof Superior Cleanroom Wood Veneer Mgo Board is made from Magnesium Oxide(MGO), Magnesium Chloride(Mgcl2), fiberless mesh, sawdust, perlite etc. Using highly purified active Mgo as the main fireproof material of board, high-quality Mgcl2 as the main cementing material to solidify other materials, alkali-resistance fiberglass mesh to ensure the high strength of board, soft sawdust and light non-combustible perlite as filling materials. It is a kind of Eco-friendly fireproof board widely used in construction and decoration.
FEATURE
1). Fireproof
Durable Waterproof Fireproof Superior Cleanroom Wood Veneer Mgo Board was tested by the National Center for Quality Supervision and Testing of Fire Building Materials (NFTC). Its fireproof level is rated level A (nonflammable level).
2). Dam proof
It is excellent in moisture-resistance. Dry bending strength is 15Mpa. Bending strength under absorbed moisture is 22Mpa.
3). Heat insulation
It has heat prevention material incorporated and great feature of heat prevention. Thermal resistance is 1.14m2k/w.
4). Soundproof
It is proved to have good noise insulation property after inspected by the National Center for Quality Supervision and Testing of Fire Building Materials (NFTC). The noise insulation factor of the wall canreach 44dB and 47dB. It has the best noise insulation constitution in China, especially the 95mm wall comprised by the 10mm board. It is light, it can save time, space, weight and expense. It is a new and high efficient wall.
5). Compact resistance
It is a light board. Its density is less than 1.0×1.03kg/m3. At the same time its bending strength and impact resistance is excellent. Also, it will maintain its' quality during construction.
SURFACE
1) XPS Sandwich Panel& EPS Sandwich Panel
2)HPL MGO Board
3)UV Coated MGO Board
APPLICATION
1)Durable Waterproof Fireproof Superior Cleanroom Wood Veneer Mgo Board can be used for interior or exterior partition and ceiling.
2) Exterior sheathing
3) Trim Materials
4) Fascias
5) Soffits
6) Shaft-liner & area separthing wall board
7) Tile backing( backer board) and underlayment
8) Substrates for coating and insulated system such as Direct-Applied Finish Systems,EIFS, SIPS, Portland type Stucco and Synthetic Stuccos.
WORKINGSHOP OF DURABLE WATERPROOF WOOD VENEER MGO BOARD
PRODUCTION LINE OF SUPERIOR WOOD VENEER MGO BOARD
PACKING OF FIREPROOF CLEANROOM WOOD VENEER MGO BOARD
INSTALLATION
OTHERS
We also have Steel Channel,You can click on the following URL:
https://www.alibaba.com/product-detail/Zinc-Coated-Metal-Different-Sizes-Furring_60508064547.html
ACCESSORIES
We can also provide the accessories, such as:
1. Main channel, furring channel, wall angel, U track etc, sizes upon your detailed request
2. Joint compound: 5kg/bag
3. Drywall screws: 3.5mmx25mm, 3.5mmx35mm, 3.5mmx50mmm etc
4. Paper Joint Tape: 50mmx50m etc
5. Self adhesive fiber glass tape: 50mmx90m etc.
