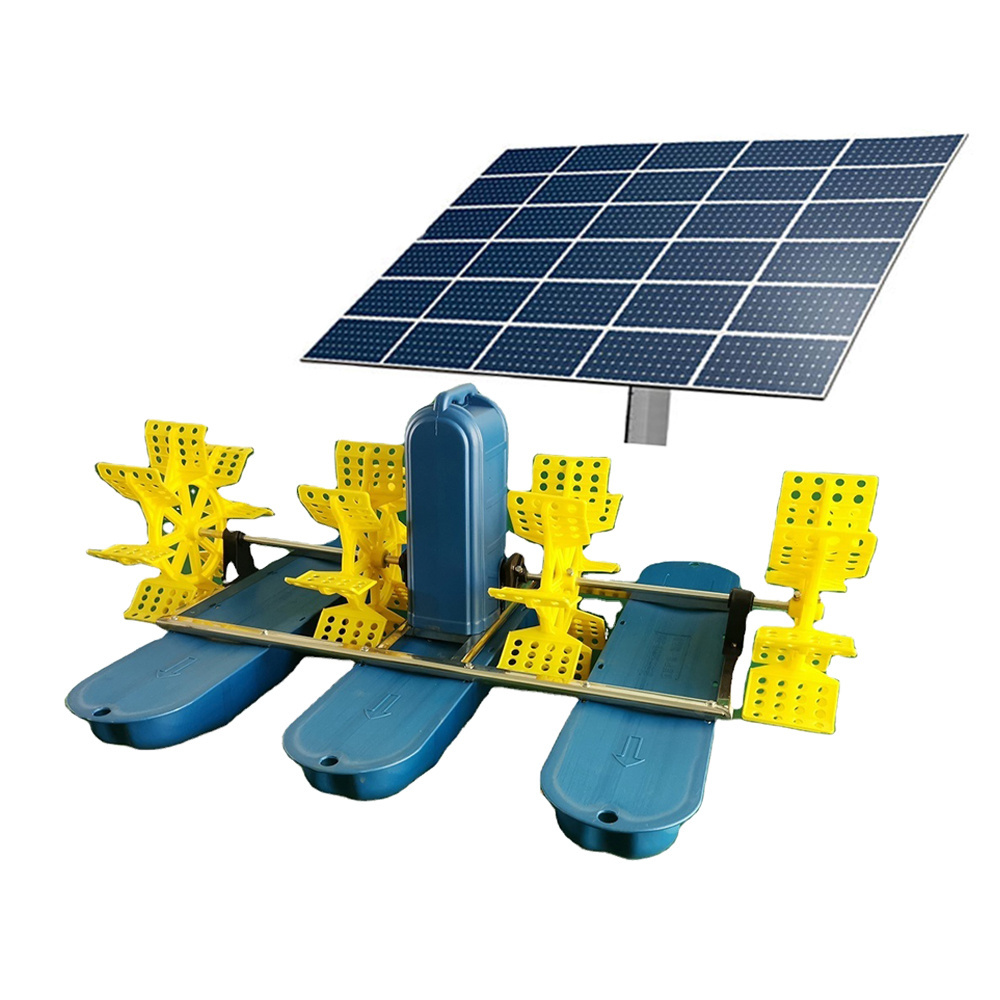

New Product High Efficiency 4 Impeller 1.5Kw 380V Solar Powered Paddle Wheel Aerator for Fish Pond

New Product High Efficiency 4 Impeller 1.5Kw 380V Solar Powered Paddle Wheel Aerator for Fish Pond

FOB Reference Price: Get Latest Price

≥1 Sets

US $200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 76 KG, 76kg

Name:: Paddle wheel aerators

Application filed:: Fish Farming Fish Pond

Application:: Fish Farming Oxygen Increasing

Material:: 304 Stainless Steel

Motor:: Electric Motor

Power:: 1.5kw

Voltage:: 380V

Function:: Increasing Dissolved Oxygen

Usage:: Fishing Farming Water Paddle Wheel Aerator

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: OEM

Model Number:: SC04-304-1.5-380(Solar)

Weight:: 76 KG, 76kg

Name:: Paddle wheel aerators

Application filed:: Fish Farming Fish Pond

Application:: Fish Farming Oxygen Increasing

Material:: 304 Stainless Steel

Motor:: Electric Motor

Power:: 1.5kw

Voltage:: 380V

Function:: Increasing Dissolved Oxygen

Usage:: Fishing Farming Water Paddle Wheel Aerator

Product Details

Name	Solar Powered Paddle wheel aerators
Application filed	Fish Farming Fish Pond
Application	Fish Farming Oxygen Increasing
Material	304 Stainless Steel
Motor	Electric Motor
Power	1.5kw
Voltage	380V
Function	Increasing Dissolved Oxygen
Usage	Fishing Farming Water Paddle Wheel Aerator

Product Details

Model	Power	Voltage	Loading Area	Power efficiency(kg02/kwh)	oxygentranster capacity(KgO2/kwh)	Noise db(A)
QT-0.75	0.75kw	220V	1-5	≥1.25	≥1.1	≤78
QT-0.75	0.75kw	380V	1-5	≥1.25	≥1.1	≤78
QT-1.5	1.5kw	220V	3-10	≥1.25	≥1.5	≤78
QT-1.5	1.5kw	380V	3-10	≥1.25	≥1.5	≤78
QT-2.2	2.2kw	380V	4-12	≥1.5	≥2.0	≤78

Main Feature

1.adopt the arc beve; gear,instead of a turbine scroll bar,energy efficient,than traditional machine Energy sacing more than 20%;

2.the arc bevel gear production of chromium manganese titanium alloy steel manufacture,the surface carbonitriding,high hardness,Long service life; 3.use of mechanical seal,to ensure no leakage pollution; 4.motor built-in protection device,to avoid accidentally burned out motor; 5.the overall plastic pontoon,nylon impeller,stainless steel shaft and bracket.

Optional impeller

Application Scenario

Main Feature

1.Motor built-in protection device,when the three-phase power phase or motor overheating will automatically jump to avoid accidents,motor burned out;

2.gear using material chromiun manganese titanium alloy steel,tooth surface after carbonitriding,prolonging the service life greatly;

3.according to the special requirements of different use of the environmentand the user,developed engineering plastics and stainless steel impller,ensure in sea water or industrial corrosive wasterwater in the long-time use,without frequent replacement of the impeller or brush paint.

Main Feature

1.Vane type oxygen increasing efficiency,can quickly and effectively increase the dissolved oxygen in the water

2.Push water slurry leaves slowly,prompting the upper and lower water exchange

3.Special planetary gear motor speed independent research and development,energy saving and low consumption and development,energy saving and low consumption

4.Has strong pumping capacity,improve the bottom of the pond water quality

5.Push the wave function has a certain

Main Feature

1 easy to use: as long as the pump into the water, contact power supply, can start to pump, no port, not afraid of rain, not limited suction, particularly light weight, mobile is very convenient.

2 energy saving: variable water head,no matter what kind of specifications and models, inlet aria far below the water surface 25-50CM, always in the best position of water absorption, which can shorten the pipeline and without install bottom valve, so it can save electricity 10-30%.

3 long service life: floating pump shaft seal is not affected by the impact of submerged sand, no deep water pressure, could not sink into the mud, so the seal and long service life.

4 can increase the yield of crops: because the floating pump suction river river water than the water temperature is high, so it is conducive to the growth of rice and other crops, with rice as an example, the general can be more than A control group of early ice yield per mu increased by 5%，
