- Product Details
- {{item.text}}
Quick Details
-
Electrical System:
-
48V
-
Battery:
-
48V150AH Maintenance-free lead-acid batteries
-
Charger:
-
Intelligent Cart Charger 48V/18AH,Charging time 8h
-
Controller:
-
48V/350A With CAN communication
-
DC:
-
High Power Non-Isolated DC-DC 48V/12V-300W
-
Front/Rear Wheel Track:
-
Front 920mm/Rear 1015mm
-
Front and Rear Wheelbase:
-
1662mm
-
Min Turning Radius:
-
3.15m
-
Braking Distance:
-
<3.5m
Quick Details
-
Tire Size:
-
11inches
-
Dimension:
-
2520*1340*1895mm
-
Motor:
-
KDS 48V5KW AC motor
-
Electrical System:
-
48V
-
Battery:
-
48V150AH Maintenance-free lead-acid batteries
-
Charger:
-
Intelligent Cart Charger 48V/18AH,Charging time 8h
-
Controller:
-
48V/350A With CAN communication
-
DC:
-
High Power Non-Isolated DC-DC 48V/12V-300W
-
Front/Rear Wheel Track:
-
Front 920mm/Rear 1015mm
-
Front and Rear Wheelbase:
-
1662mm
-
Min Turning Radius:
-
3.15m
-
Braking Distance:
-
<3.5m
Product Paramenters
|
Product series
|

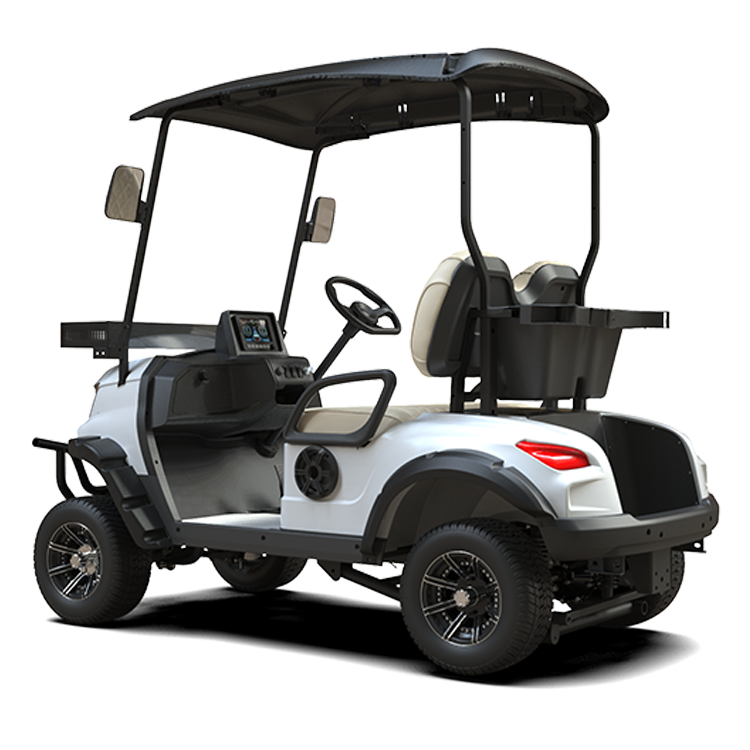

G-Series C2 Golf cart
|
|
Braking system
|
Front disc+Rear drum
|
|
Minimum ground clearance
|
150-200mm
|
|
Size
|
2520*1340*1895mm
|
|
Quality
|
400-500kg
|
|
Maximum speed
|
≤30Km/h
|
|
Charging time
|
5-7 hours
|
|
Climbing Angle
|
20-25°
|
|
Tail caddie standing position
|
Unequipped
|
|
Seats
|
3-4
|
|
Fuel
|
Electric
|
|
Certification
|
DOT, CE, GCC, Eec
|
Confortable Performance:
★IP66 advanced multimedia instrument, colourful auto-colour change buttons, Bluetooth function, with vehicle detection function
★ IP66 Full Range Hi-Fi Speaker H065B (Voice-activated Lighting) ★First class seat (integral foam moulded seat cushion + solid colour premium microfibre leather)
★High-strength aluminium alloy oxidised non-slip flooring, corrosion and ageing resistant
★DOT certified anti-aging premium folding plexiglass; wide-angle centre mirror ★Premium car steering wheel + aluminium alloy base ★Advanced Automotive Painting Process
Suspension and brake system:
frame; painting process: pickling + electrophoresis + spraying
★Front suspension: double swing arm independent front suspension + coil springs + cartridge hydraulic dampers.
★Rear suspension: Integral rear axle, 16:1 ratio Coil spring dampers + hydraulic cartridge dampers + wishbone suspension
★Brake system: 4-wheel hydraulic brakes, 4-wheel disc brakes + electromagnetic brakes for parking (with vehicle towing function)
★Steering system: bidirectional rack and pinion steering system, automatic backlash compensation function
Personalisation:
★Cushion: leather can be colour-coded, embossed (stripes, diamond), logo silkscreen/embroidery
★Wheels: black, blue, red, gold
★Colour light: chassis & roof can be installed, seven-colour light strip + voice control + remote control ★Others: body & front LOGO; body colour; instrument on LOGO animation; hubcap, steering wheel, key can be customized LOGO (from 100 cars)
