Quick Details
-
Brand Name:
-
CAMC
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
> 8L
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service
-
Engine Brand:
-
CAMC
-
Size:
-
7640*2495*3850mm
-
Gross Vehicle Weight:
-
8805 kg
-
WheelBase:
-
3900+1350mm
-
Tire:
-
315/70R22.5(18PR)
-
CNG system:
-
8*150L+4*80L
-
Transmission:
-
12JSDX220TA-B
-
Engine:
-
CM6T28.410 50(CNG)
-
Rear axle:
-
16T(Disc type)
-
Front axle:
-
7.5T
-
Saddle:
-
50# or 90#
-
Driving type:
-
6x4 Left Hand Drive
-
Frame:
-
310(8+5mm)
Quick Details
-
Condition:
-
New
-
Horsepower:
-
270-550hp
-
Emission Standard:
-
EURO 5
-
Brand Name:
-
CAMC
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
> 8L
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service
-
Engine Brand:
-
CAMC
-
Size:
-
7640*2495*3850mm
-
Gross Vehicle Weight:
-
8805 kg
-
WheelBase:
-
3900+1350mm
-
Tire:
-
315/70R22.5(18PR)
-
CNG system:
-
8*150L+4*80L
-
Transmission:
-
12JSDX220TA-B
-
Engine:
-
CM6T28.410 50(CNG)
-
Rear axle:
-
16T(Disc type)
-
Front axle:
-
7.5T
-
Saddle:
-
50# or 90#
-
Driving type:
-
6x4 Left Hand Drive
-
Frame:
-
310(8+5mm)
PRODUCT OVERVIEW

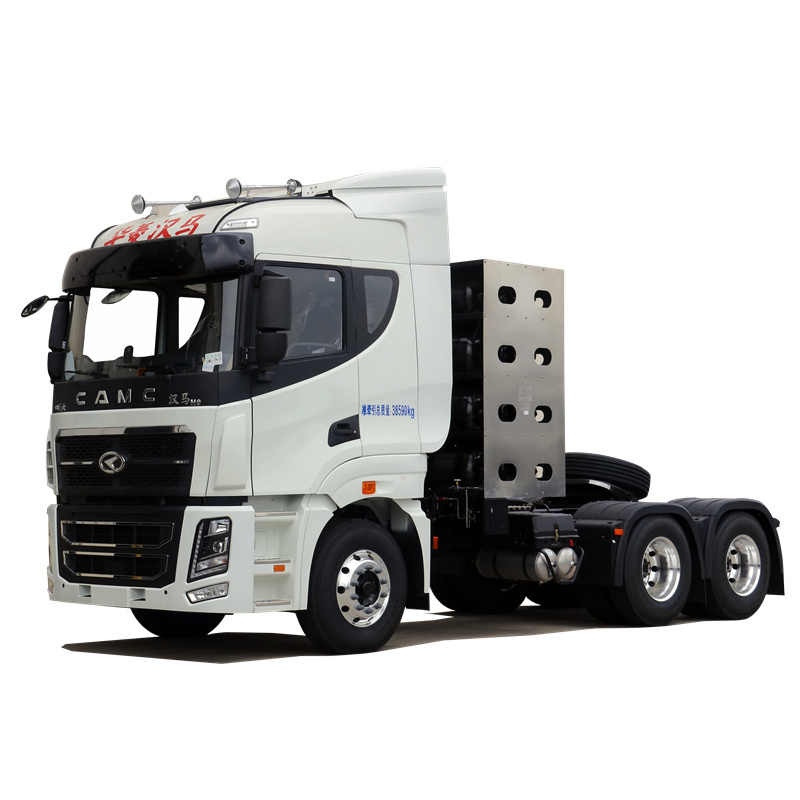

CAMC CNG Tractor
truck
Feature：
1、European style, strong dynamic
2、Luxurious interior, humanized design
3、Intelligent electrical system and Intelligent fuel saving management system
4、The three core assemblies of engine, gearbox and are all independently developed
2、Luxurious interior, humanized design
3、Intelligent electrical system and Intelligent fuel saving management system
4、The three core assemblies of engine, gearbox and are all independently developed
PRODUCT SPECIFICATIONS
|
No.
|
Item
|
Parameter
|
|
|
||
|
1
|
Drive type
|
6x4
|
|
|
||
|
2
|
Wheel base(mm)
|
3900+1350
|
|
|
||
|
3
|
Quasi-tow mass (kg)
|
40000
|
|
|
||
|
4
|
Kerb Weight (kg)
|
8805
|
|
|
||
|
5
|
GVW (kg)
|
25000
|
|
|
||
|
6
|
Overall dimension (mm)
|
7640x2495x3850
|
|
|
||
|
7
|
Driving position
|
Left or Right hand drive available
|
|
|
||
|
8
|
Saddle
|
JOST 50
|
|
|
||
|
9
|
Model
|
CM6T28.410 50
|
|
|
||
|
10
|
Type
|
7640x2495x3850In-line 6-cylinder, water-cooled, four-stroke, supercharged intercooled, lean burn
|
|
|
||
|
11
|
Maximum power/horsepower（kw/hp）
|
300/410
|
|
|
||
|
12
|
Maximum rated speed(rpm)Gearbox
|
190
|
|
|
||
|
13
|
Max torque（N.m/rpm）
|
1750/1100-1450
|
|
|
||
|
14
|
Cylinders
|
6
|
|
|
||
|
15
|
Bore x Stroke （mm）
|
130*160
|
|
|
||
|
16
|
Displacement (L)
|
11.81
|
|
|
||
|
17
|
Controller type
|
Electrical
|
|
|
||
|
18
|
Air cleaner
|
Dry paper element
|
|
|
||
|
19
|
Emission Standard
|
Euro5
|
|
|
||
|
20
|
CNG system
|
8×150L+4×80L,Mounted at behind of cabin, with CNG leaking warning.Material :steel
|
|
|
||
|
21
|
Supplier
|
FAST
|
|
|
||
|
22
|
Model
|
12JSDX220TA-B
|
|
|
||
|
23
|
Type
|
Mechanical & manual with PTO
|
|
|
||
|
24
|
Speed ratio
|
12 forward ratio: 12.10, 9.52,7.31，5.71，4.46，3.48，2.71，2.13，1.64, 1.28, 1.00,0.78
|
|
|
||
|
|
|
2 reverse ratio：11.57, 2.59
|
|
|
||
product show
Product details
OUR FACTORY
Our company is specialized in different kinds of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishmet of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
Successful Projects
Global preserce&Regional support
Packing&Shipping
FAQ
Q:How about the warranty?
A: 24 months unlimited mileages or 200000km which occur first.
A: 24 months unlimited mileages or 200000km which occur first.
Q:Do you have ISO certificate?
A:Yes , we have,please contact us to get our certificates.
Q:How about the delivery time?
A: Normally we need around 35 days for production.
Q: How many units of truck does your factory produce per year?
A:Almost 100000 units.Nearly 8500 units per month.
Q: How do you control the quality of product?
A:Our Factory has standard production workshop,gets ISO CCC BV certificates,our workers are well trained. Every unit of product undergoes a rigorous inspection process.
Q: How about your product after-sales service system?
A:Our main export countries have accepted after-sales service,some countries use the third party service.
Q: Do you accept custom order? What's is your MOQ order?
A:Yes, we do, our MOQ is 1 unit.
Q: What's the payment terms?
A:By T/T or L/C at sight.
Q: How about shipment?
A:20FT container, 40FT container,40FT high container,open-top container,flat bed container,Ro-Ro ship or bulk
ship according to the size the products.
Q:Which country do you have exported to?
A:We have exported to More than 60 countries and regions in Eastern Europe, North Africa, Southeast Asia and South America.
A:Yes , we have,please contact us to get our certificates.
Q:How about the delivery time?
A: Normally we need around 35 days for production.
Q: How many units of truck does your factory produce per year?
A:Almost 100000 units.Nearly 8500 units per month.
Q: How do you control the quality of product?
A:Our Factory has standard production workshop,gets ISO CCC BV certificates,our workers are well trained. Every unit of product undergoes a rigorous inspection process.
Q: How about your product after-sales service system?
A:Our main export countries have accepted after-sales service,some countries use the third party service.
Q: Do you accept custom order? What's is your MOQ order?
A:Yes, we do, our MOQ is 1 unit.
Q: What's the payment terms?
A:By T/T or L/C at sight.
Q: How about shipment?
A:20FT container, 40FT container,40FT high container,open-top container,flat bed container,Ro-Ro ship or bulk
ship according to the size the products.
Q:Which country do you have exported to?
A:We have exported to More than 60 countries and regions in Eastern Europe, North Africa, Southeast Asia and South America.
