SMD3030 LED chip
low light degradation
high light efficiency
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Input Voltage(V):
-
100-240
-
CRI (Ra>):
-
70
-
Working Temperature(℃):
-
-35 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Yourlite
-
Model Number:
-
LG603
-
Lamp Body Material:
-
Aluminum
-
Power Factor:
-
>0.9
-
Power:
-
50W/100W/150W/200W/300W
-
CCT:
-
4000K/6500K
-
Color body:
-
Grey
-
LED Driver:
-
Isolated driver
-
Material:
-
Aluminium + Glass
-
Type:
-
Waterpoof IP65 LED tunnel lamps
-
LED Light Source:
-
SMD3030
-
Certification:
-
ce, RoHS
Quick Details
-
Color Temperature(CCT):
-
4000K/6500K
-
Lamp Luminous Flux(lm):
-
20000
-
Warranty(Year):
-
5
-
Input Voltage(V):
-
100-240
-
CRI (Ra>):
-
70
-
Working Temperature(℃):
-
-35 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Yourlite
-
Model Number:
-
LG603
-
Lamp Body Material:
-
Aluminum
-
Power Factor:
-
>0.9
-
Power:
-
50W/100W/150W/200W/300W
-
CCT:
-
4000K/6500K
-
Color body:
-
Grey
-
LED Driver:
-
Isolated driver
-
Material:
-
Aluminium + Glass
-
Type:
-
Waterpoof IP65 LED tunnel lamps
-
LED Light Source:
-
SMD3030
-
Certification:
-
ce, RoHS
Specification

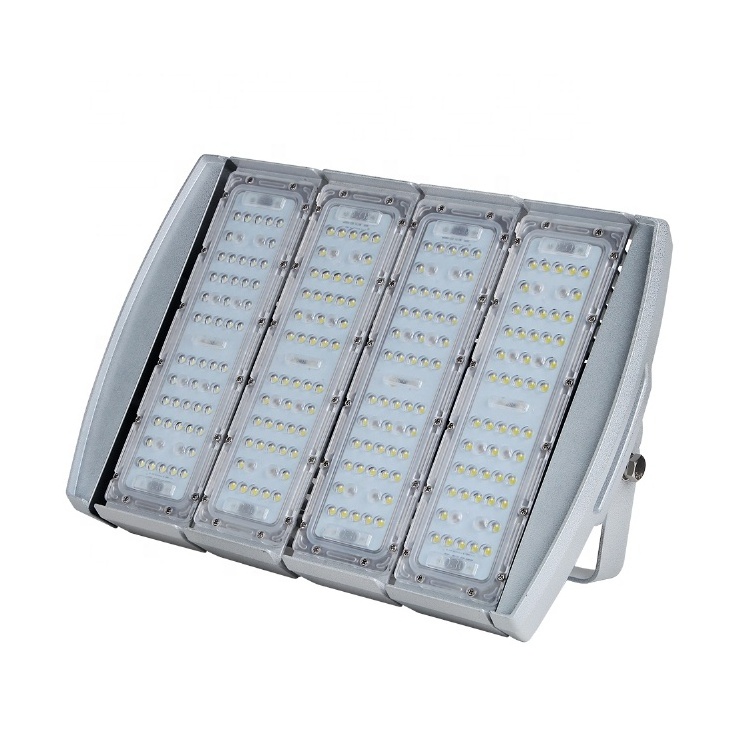

High Quality IP65 Tunnel LED Light, 50W Each Module LED Tunnel Lamp, 200W LED Tunnel Light
|
Setting Information
|
|
|
|
Item No.
|
LG603
|
|
|
Voltage
|
100-277V
|
|
|
Efficiency
|
100l
m/W
|
|
|
Watage
|
50W/100W/150W/200W/300W
|
|
|
Beam Angle
|
60°/90x140°
|
|
|
CCT
|
4000K/6500K Optional
|
|
|
LED Source
|
SMD3030
|
|
|
Warranty
|
5 years
|
|
Product Description
Product Details
Product Details
Heat dissipation can be increased: the street light body is advanced aluminum, and adopts the hollow design, the heat dissipation performance is good.
The LED Module
50W/100W/150W/200W/300W
|
Wattage
|
Lumen
|
Material
|
Size
|
|
50W
|
5000lm
|
Alu. + Glass
|
161*281*118mm
|
|
100W
|
10000lm
|
Alu. + Glass
|
237*281*118mm
|
|
150W
|
15000lm
|
Alu. + Glass
|
322*281*118mm
|
|
200W
|
20000lm
|
Alu. + Glass
|
402*281*118mm
|
|
300W
|
30000lm
|
Alu. + Glass
|
483*281*118mm
|
