Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dehe Motor
-
Model Number:
-
DHE- 36P555 HS
-
Torque:
-
0.1-60kg.cm, 0.1-60kg.cm
-
Product Name:
-

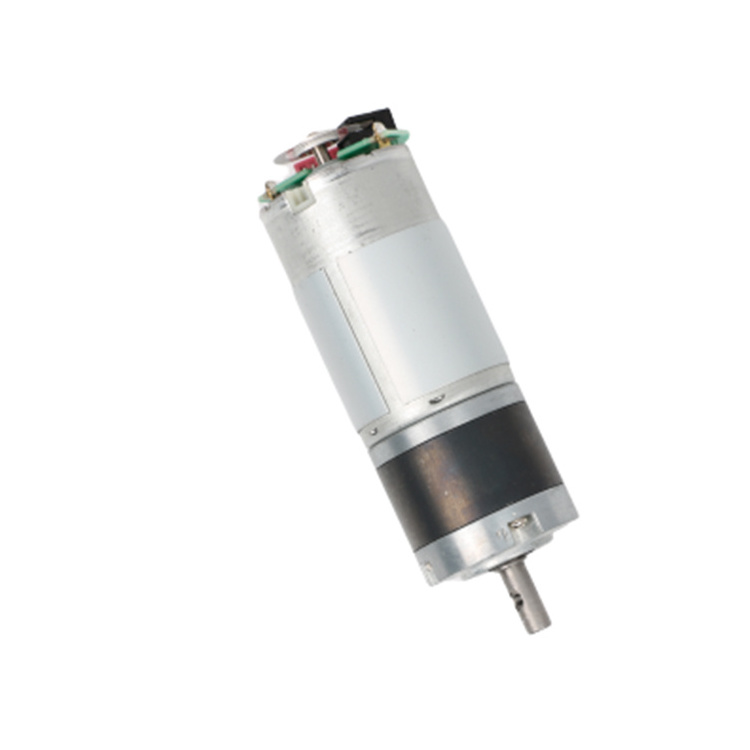

Mini Micro Small 12 Volt Gear Electric Motors For Household Appliances
-
Model:
-
DHE- 36P555 HS
-
Diameter:
-
36mm
-
Rated Voltage:
-
12VDC Could customized
-
Speed:
-
1-1500rpm
-
Rotation:
-
CW/CCW Running
-
Gears:
-
36mm Planetary Gearbox
-
Typical Applications:
-
Acuator
-
Feature:
-
With Encoder
Quick Details
-
Speed(RPM):
-
1-1500
-
Continuous Current(A):
-
≤350mA No Load
-
Efficiency:
-
75%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dehe Motor
-
Model Number:
-
DHE- 36P555 HS
-
Torque:
-
0.1-60kg.cm, 0.1-60kg.cm
-
Product Name:
-
Mini Micro Small 12 Volt Gear Electric Motors For Household Appliances
-
Model:
-
DHE- 36P555 HS
-
Diameter:
-
36mm
-
Rated Voltage:
-
12VDC Could customized
-
Speed:
-
1-1500rpm
-
Rotation:
-
CW/CCW Running
-
Gears:
-
36mm Planetary Gearbox
-
Typical Applications:
-
Acuator
-
Feature:
-
With Encoder
| Place of Origin: | Guangdong, China |
| Brand Name: | Dehe Motor |
| Model Number: | DHE- 36P555 HS |
| Usage: | Home Appliance |
| Certification: | CCC |
| Type: | Gear Motor |
| Torque: | 0.1-60kg.cm, 0.1-60kg.cm |
| Construction: | Permanent Magnet |
| Commutation: | Brush |
| Protect Feature: | Drip-proof |
| Speed(RPM): | 1-1500 |
| Continuous Current(A): | ≤350mA No Load |
| Efficiency: | 75% |
| Product Name: | 12VDC Acuator Motor |
| Model: | DH36P555E |
| Diameter: | 36mm |
| Rated Voltage: | 12VDC Could customized |
| Speed: | 1-1500rpm |
| Rotation: | CW/CCW Running |
| Gears: | 36mm Planetary Gearbox |
| Typical Applications: | Acuator |
| Feature: | With Encoder |
Gear Ratio Data
| Gear Ratio Stage | 1 | 2 | 3 | 4 | 5 |
| Gear Ratio | 3.7 | 13.7 | 50.9 | 188 | 699 |
| 5.2 | 19.2 | 71.2 | 264 | 977 | |
| 26.9 | 99.5 | 369 | 1367 | ||
| 139 | 516 | 1911 | |||
| 721 | 2672 | ||||
| Length(mm) | 25.9 | 33 | 40 | 47 | 54 |
Motor Data
| Model | Voltage | No Load | At Rated Load | ||||
| Operation Range | Nominal | Speed | Current | Speed | Current | Torque | |
| r/min | mA | r/min | A | kg.cm | |||
| DH-36P555H-121150 | 8-14 | 12VDC | 1150 | ≤350 | 961 | ≤1.7 | 1.1 |
| DH-36P555H-12428 | 8-14 | 12VDC | 428 | ≤350 | 357 | ≤1.7 | 2.8 |
| DH-36P555H-12315 | 8-14 | 12VDC | 315 | ≤350 | 263 | ≤1.7 | 3.8 |
| DH-36P555H-12222 | 8-14 | 12VDC | 222 | ≤350 | 185 | ≤1.7 | 5.5 |
| DH-36P555H-12117 | 8-14 | 12VDC | 117 | ≤350 | 98 | ≤1.7 | 9 |
| DH-36P555H-1284 | 8-14 | 12VDC | 84 | ≤350 | 70 | ≤1.7 | 13 |
| DH-36P555H-1260 | 8-14 | 12VDC | 60 | ≤350 | 50 | ≤1.7 | 18 |
| DH-36P555H-1243 | 8-14 | 12VDC | 43 | ≤350 | 36 | ≤1.7 | 25 |
| DH-36P555H-1232 | 8-14 | 12VDC | 32 | ≤350 | 26 | ≤1.7 | 31 |
| DH-36P555H-1223 | 8-14 | 12VDC | 23 | ≤350 | 19 | ≤1.7 | 43 |
| DH-36P555H-1216 | 8-14 | 12VDC | 16 | ≤350 | 13.5 | ≤1.7 | 60* |
| DH-36P555H-1211.5 | 8-14 | 12VDC | 11.5 | ≤350 | 9.5 | ≤1.7 | 60* |
| DH-36P555H-128.3 | 8-14 | 12VDC | 8.3 | ≤350 | 7 | ≤1.7 | 60* |
| DH-36P555H-120.6 | 8-14 | 12VDC | 6 | ≤350 | 5 | ≤1.7 | 60* |
| DH-36P555H-124.3 | 8-14 | 12VDC | 4.3 | ≤350 | 3.6 | ≤1.7 | 60* |
| DH-36P555H-121.6 | 8-14 | 12VDC | 1.6 | ≤350 | 1.3 | ≤1.7 | 60* |
