Quick Details
-
Brand Name:
-
AV
-
product name:
-

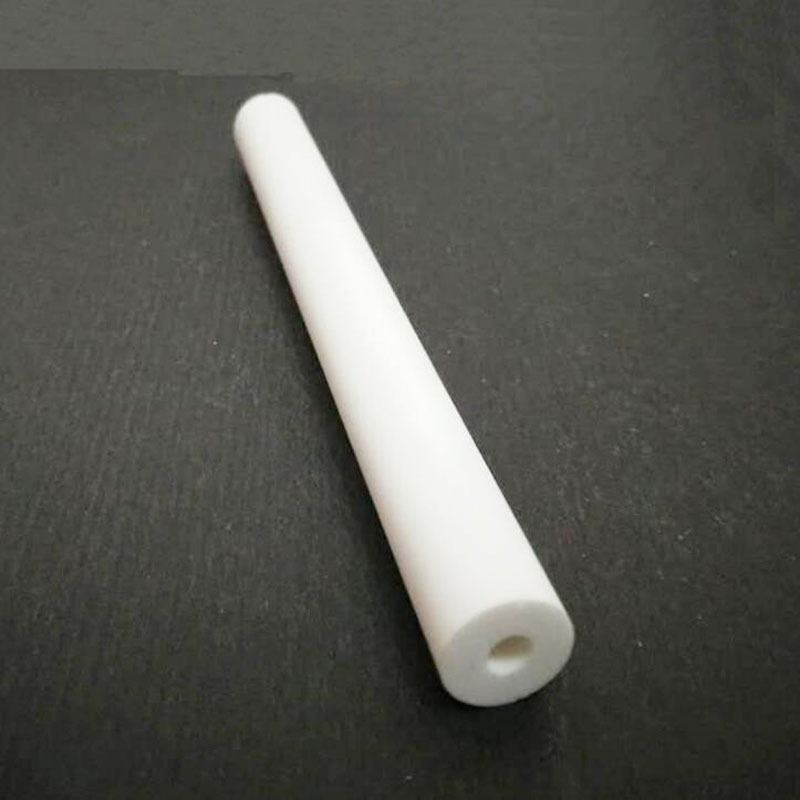

alumina ceramic tube 99% al2o3
-
Color:
-
White,black ,pink,,brown,grey or as you need
-
material:
-
zirconia ceramic structure,alumina
-
Size:
-
According To Technical Drawing
-
Advantage:
-
10 years structural ceramics experience
-
Surface roughness:
-
Ra 0.4
-
Tolerance:
-
+/-0.01mm
-
Sample:
-
Available
-
Feature:
-
Wear resistance
Quick Details
-
Material:
-
Alumina Ceramic
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
AV2014123104
-
Brand Name:
-
AV
-
product name:
-
alumina ceramic tube 99% al2o3
-
Color:
-
White,black ,pink,,brown,grey or as you need
-
material:
-
zirconia ceramic structure,alumina
-
Size:
-
According To Technical Drawing
-
Advantage:
-
10 years structural ceramics experience
-
Surface roughness:
-
Ra 0.4
-
Tolerance:
-
+/-0.01mm
-
Sample:
-
Available
-
Feature:
-
Wear resistance
Corrosion-resistant Zirconia alumina ceramic porcelain tube
Specifications
1.With smooth surface
2.Long working life
3.High quality with competitive price
4.Fast delivery time
Type: Pigtails, slit guide, hook guide, traverse guide etc
Color: white, yellow, milk white, pink, black, green, etc
Raw material: zirconia, alumina,
Size can be depend on your drawings
Features:
1. The inside surface Polish degree: Ra0.2~0.8.
2. The material: 99% AI2O3 with density of 3.85.
3. The hardness: HRa88.
Flanged ceramic pigtails
This kind of ceramic(Eyelets ,Rods and tubes,Rollers,pigtails,slit guides,hook guides, traverse guides,diverse guides) made in 95%, 99% alumina, or Zirconia.
Our products are famous of our high quality and performance, with our more than 8 years manufacturering experince, we have great advantage in tenology and cost.
Due to our seriously / professional service, quick response and fast delivery, we are confident in help your business.
Applications:
These products are mainly used in Aerospace, Research, Food Processing, Fluid Handling, Scientific, Automotive, Defense, Thermal Processing, Eletronic and Electrical, Process Control, Textile, Pulp and Paper, Mechanical, Glass Processing, Mineral Processing and other Industrial.
|
Item |
Testing condition |
Unit |
75% al2o3 |
90% al2o3 |
95% al2o3 |
99% al2o3 |
99.5% al2o3 |
zirconia |
steatite |
|
Bulk density |
|
g/cm3 |
>3.20 |
>3.40 |
>3.60 |
3.7 |
3.7 |
6 |
≥2.6 |
|
Flexural Strength |
|
N/m2×103 |
1.96 |
2.25 |
2.24 |
>2.24 |
>2.74 |
11 |
1.37 |
|
Coefficient of linear expansion |
20~800°C |
×10-6/°C |
/ |
6.3~7.3 |
6.5~8.0 |
6.5~8.0 |
6.5~8.0 |
9.5 |
≤8 |
|
Permittivity |
1MHz |
|
≤9 |
8.5~9.5 |
9~10 |
9~10.5 |
9~10.5 |
/ |
≤7.5 |
|
10GHz |
|
/ |
/ |
9~10 |
9~10.5 |
/ |
/ |
/ |
|
|
Insertion loss |
1MHz |
×10-6 |
≤10 |
≤8 |
≤4 |
≤2.5 |
≤1.5 |
/ |
≤8.0 |
|
10GHz |
×10-6 |
/ |
/ |
≤10 |
≤6 |
/ |
/ |
/ |
|
|
Bulk density resistance |
100°C |
Ω·Cm |
>1012 |
>1013 |
>1013 |
>1013 |
>1014 |
>10 12 |
>10 12 |
|
Puncture strength |
|
KV/mm |
20 |
15 |
15 |
15 |
/ |
/ |
20 |
|
Thermal conductivity |
20°C |
W/m·k |
/ |
16.8 |
25.2 |
25.2 |
29.2 |
3 |
2.9 |
