Quick Details
-
BCD Curve:
-
C
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HONI
-
Model Number:
-
CFH-125
-
Rated Frequency (Hz):
-
50/60
-
Number of Pole:
-
2
-
Product name:
-
Photovoltaic over voltage and under voltage automatic circuit recloser
-
Pole:
-
2
-
Certificate:
-
CE
-
Rated Voltage Ue:
-
230/400v
-
Electrical Life(Time):
-
20000
-
Automatic closing time(S):
-
≤3
-
Power on delay(S):
-
4≤t≤5
-
Overload short circuit protection type:
-
C
-
control mode:
-
Remote automatic control
Quick Details
-
Breaking Capacity:
-
10kA
-
Rated Voltage:
-
230/400V
-
Rated Current:
-
125A, 125A
-
BCD Curve:
-
C
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HONI
-
Model Number:
-
CFH-125
-
Rated Frequency (Hz):
-
50/60
-
Number of Pole:
-
2
-
Product name:
-
Photovoltaic over voltage and under voltage automatic circuit recloser
-
Pole:
-
2
-
Certificate:
-
CE
-
Rated Voltage Ue:
-
230/400v
-
Electrical Life(Time):
-
20000
-
Automatic closing time(S):
-
≤3
-
Power on delay(S):
-
4≤t≤5
-
Overload short circuit protection type:
-
C
-
control mode:
-
Remote automatic control
Product Description

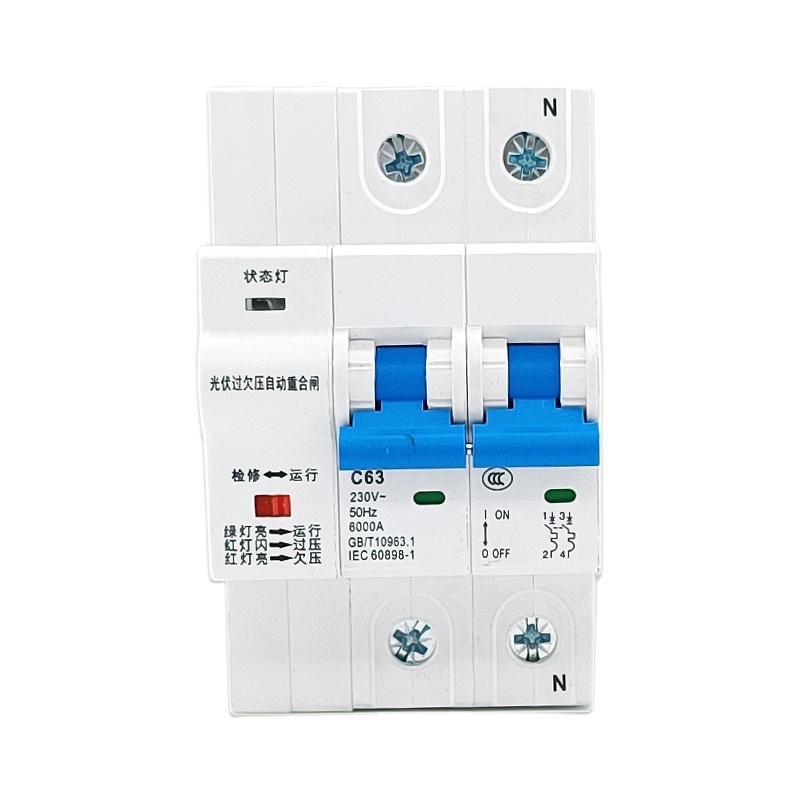

Product Overview
CFH-125ARD PV over and under voltage automatic Reclosing circuit breakers (hereinafter referred to as circuit breakers) meet standards:
IEC60898-1《Electrical accessories for household use and similar places Over-current protection circuit breakers - Part 1: circuit breakers for alternating current》.
The circuit breaker is suitable for AC50Hz, rated power Voltage 230V(1P+N, 2P), 400V(3P+N, 4P). Automatic intelligent closing when power circuit operating ,Automatic break, in the case of power failure and at the same time offer protection of overload and short circuit .
It can also be used as infrequent operation of the line under normal conditions, It is widely used in the intelligent transformation of power grid.
The front of the product is provided with a green signal indicator light and the main circuit
The indicator light keeps on when there is electricity; Main circuit power failure The lower indicator is off.
Automatic brake opening in case of power failure ( after power failure Manual Operating handle cannot lose).
IEC60898-1《Electrical accessories for household use and similar places Over-current protection circuit breakers - Part 1: circuit breakers for alternating current》.
The circuit breaker is suitable for AC50Hz, rated power Voltage 230V(1P+N, 2P), 400V(3P+N, 4P). Automatic intelligent closing when power circuit operating ,Automatic break, in the case of power failure and at the same time offer protection of overload and short circuit .
It can also be used as infrequent operation of the line under normal conditions, It is widely used in the intelligent transformation of power grid.
The front of the product is provided with a green signal indicator light and the main circuit
The indicator light keeps on when there is electricity; Main circuit power failure The lower indicator is off.
Automatic brake opening in case of power failure ( after power failure Manual Operating handle cannot lose).
Check before installation
A. After unpacking, check whether the circuit breaker is intact. Whether the wiring terminal is rusted, whether the wiring board is seriously oxidized, for example
Please contact the supplier in time.
B.Close and open the circuit breaker with ease.
Please contact the supplier in time.
B.Close and open the circuit breaker with ease.
Installation and reliable connection of circuit breaker
A. During installation, clamp the circuit breaker directly to TH35-7.5 Install the guide rail until you hear the "click" sound.
B. When disassembling, turn all bottom restraint parts outward with tools Pull about 5mm until you hear the "click" and remove the circuit breaker.
C.Use a cross screwdriver to fix the wire to the wiring socket.
B. When disassembling, turn all bottom restraint parts outward with tools Pull about 5mm until you hear the "click" and remove the circuit breaker.
C.Use a cross screwdriver to fix the wire to the wiring socket.
Mounting dimensions
Check
A. After the circuit breaker is installed, check whether the cables are correctly connectedAfter confirm connecting correct then close the circuit breaker, when power failured ,manual operation levers cannot close.
B. The circuit breaker meets the following functions:
1. Rated working voltage AC230V;
2. Over-voltage action cut-off value: A300V±5V;
3. Over-voltage recovery value: AC260V±5V;
4. Under-voltage action cut-off value:AC44V-160V;
5. Under-voltage recovery value: AC196V±5V;
6. Delay of power supply after power failure: > 5s;
7. Action delay time: > 5s;
8. Automatically cut off after no-voltage .
B. The circuit breaker meets the following functions:
1. Rated working voltage AC230V;
2. Over-voltage action cut-off value: A300V±5V;
3. Over-voltage recovery value: AC260V±5V;
4. Under-voltage action cut-off value:AC44V-160V;
5. Under-voltage recovery value: AC196V±5V;
6. Delay of power supply after power failure: > 5s;
7. Action delay time: > 5s;
8. Automatically cut off after no-voltage .
Packing & Delivery
STANDARD EXPORT CARTON
CARTON SIZE:42*24*17CM
