Quick Details
-
Type:
-
video balun
-
Product Name:
-

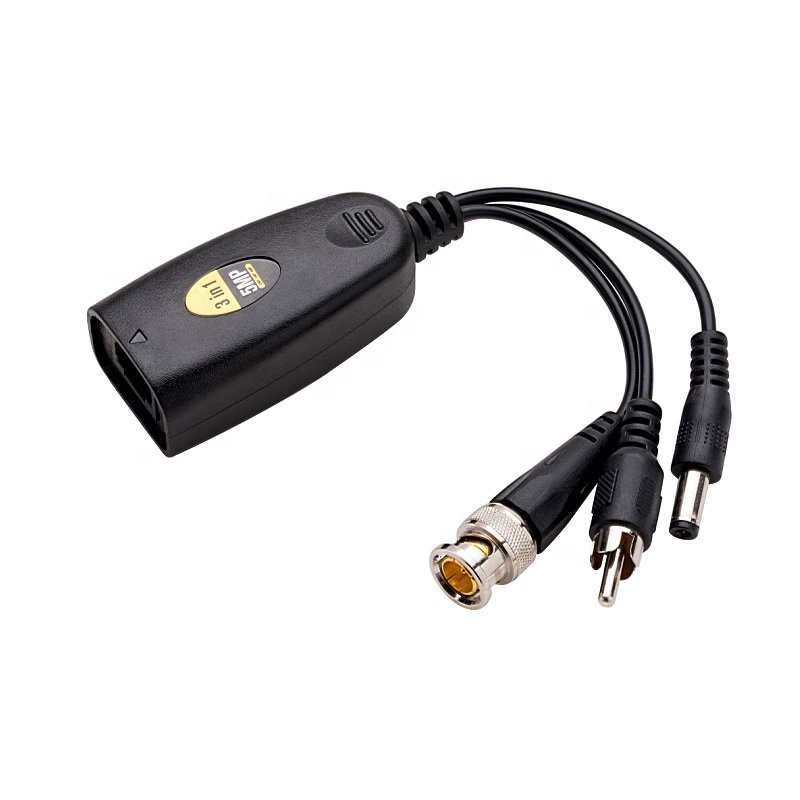

HD power video balun
-
Transmission distance:
-
AHD/CVI:4MP/5MP:250M 8MP(4K):200M
-
distance:
-
TVI:4MP/5MP:200M 8MP:150M
-
MTBF:
-
>10000 Hours
-
Compatible Format:
-
CVI/TVI/AHD/CVBS
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EBORM-OEM
-
Model Number:
-
HD video balun
-
Type:
-
video balun
-
Product Name:
-
HD power video balun
-
Transmission distance:
-
AHD/CVI:4MP/5MP:250M 8MP(4K):200M
-
distance:
-
TVI:4MP/5MP:200M 8MP:150M
-
MTBF:
-
>10000 Hours
-
Compatible Format:
-
CVI/TVI/AHD/CVBS
|
|
ITEM |
SPECIFICATION |
|
Properties |
Transmission signal |
1 channel |
|
Transmission distance |
AHD/CVI:3MP 300M/4MP 200M/5MP 150M |
|
|
TVI/CVBS:3MP 200M/ 4MP 150M/5MP 100M |
||
|
Category Type |
Category 5e/ Category 6 only |
|
|
Stability |
MTBF |
>10000 Hours |
|
Video Transmission Contents and Port |
Coaxial Video Connector |
BNC-M |
|
Twisted-pair Video Connector |
Push-terminal |
|
|
Compatible Format |
CVI/TVI/AHD/CVBS |
|
|
Resolution |
720P/960P/1080P/3MP/4MP/5MP |
|
|
Anti-interference |
>60db |
|
|
Protection |
ESD |
1a contact discharge electricity level 3 |
|
1b air discharge electricity level 3 |
||
|
Per: IEC61000-4-2 |
||
|
Coaxial Cable Connector |
2KV(common-code)Per:IEC1000-4-5 |
|
|
UTP Cable Connector |
2KV(different-code),4KV(common-code) Per: IEC1000-4-5 |
|
|
Power |
Power Transmission |
Power Voltage Drop Calculation:For 12V DC 1Amp,cable distance shoule not exceed 90feet/27meters.For longer distance,please use 14V DC,16V DC,18V DC,20-48V DC. |
