Quick Details
-
Jacket:
-
Xlpe
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
huashuo
-
Model Number:
-
solar cable
-
Product name:
-
PV Cable Solar DC Panel Power Cable
-
Color:
-
Customized
-
Conductor:
-
Tinned Copper
-
Certificate:
-
TUV
-
Standard:
-
IEC60228
-
Insulation:
-
XLPE LSZH
-
Core:
-
1-2 Core
-
Rated voltage:
-
0.6/1KV AC 1500V DC
-
Keywords:
-
solar cable 4MM 6MM 10MM 16MM 35MM 240MM
-
Working temperature:
-
-40℃-125℃
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Power Station
-
Conductor Material:
-
Copper
-
Jacket:
-
Xlpe
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
huashuo
-
Model Number:
-
solar cable
-
Product name:
-
PV Cable Solar DC Panel Power Cable
-
Color:
-
Customized
-
Conductor:
-
Tinned Copper
-
Certificate:
-
TUV
-
Standard:
-
IEC60228
-
Insulation:
-
XLPE LSZH
-
Core:
-
1-2 Core
-
Rated voltage:
-
0.6/1KV AC 1500V DC
-
Keywords:
-
solar cable 4MM 6MM 10MM 16MM 35MM 240MM
-
Working temperature:
-
-40℃-125℃
Products Description

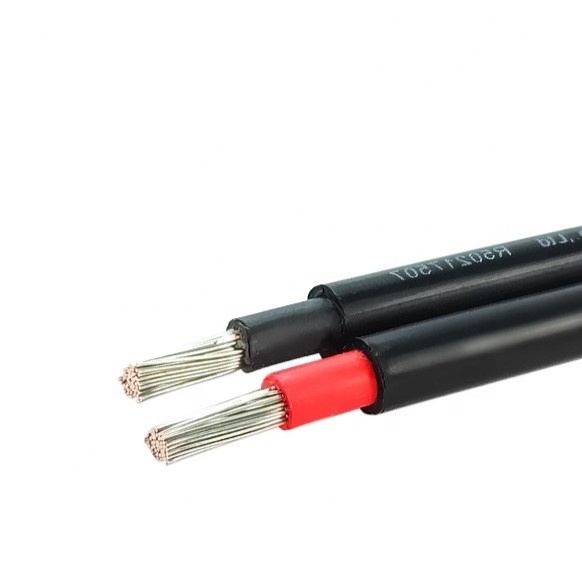

1.The 0.6/1KV solar cable is a tinned copper conductor, XLPO insulation, and LSZH sheath.
2.Which is designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.
3.It has the characteristics of UV resistance, wears resistance, and aging resistance, and the service life is more than
25 years.
25 years.
|
No. Of cores x Construction
（mm2）
|
Conductor Construction
（n / mm）
|
Conductor No./mm
|
Insul.Thick. (mm)
|
Current Aarring Capacity (A)
|
|
1x1.5
|
30/0.25
|
1.58
|
4.9
|
30
|
|
1x2.5
|
50/0.256
|
2.06
|
5.45
|
41
|
|
1x4.0
|
56/0.3
|
2.58
|
6.15
|
55
|
|
1x6
|
84/0.3
|
3.15
|
7.15
|
70
|
|
1x10
|
142/0.3
|
4.0
|
9.05
|
98
|
|
1x16
|
228/0.3
|
5.7
|
10.2
|
132
|
|
1x25
|
361/0.3
|
6.8
|
12.0
|
176
|
|
1x35
|
494/0.3
|
8.8
|
13.8
|
218
|
|
1x50
|
418/0.39
|
10.0
|
16.0
|
280
|
|
1x70
|
589/0.39
|
11.8
|
18.4
|
350
|
|
1x95
|
798/0.39
|
13.8
|
21.3
|
410
|
