Fruit Powder Punch Spray Dryer Buttermilk Fermentation Liquid Dryer Centrifugal Spray Dryer for Alkaline Dyes

Product descriptions from the supplier

Working Principle:

• Spray drying is a more widely used process in the liquid process forming and drying industry. It is
  particularly suitable for generating solid products in the form of powders and granules from
  solutions, emulsions, suspensions and pasty liquid raw materials. Spray drying is therefore
  a good process when the particle size distribution, residual moisture content, bulk density
  and particle shape of the finished product must meet high standards.


• The air is filtered and heated, and enters into the air distributor at the top of the dryer, and the hot
  air enters into the drying chamber in a spiral shape uniformly. The material liquid is sprayed into
  very fine mist liquid beads by the high-speed centrifugal atomizer at the top of the tower (rotating),
  and can be dried into finished products in a very short time with the hot air in parallel contact.
  The finished product is continuously output from the bottom of the drying tower and cyclone
  separator,and the exhaust gas is exhausted by the fan.

Performance Features:

• The drying speed is fast, the surface area of the material is greatly increased after atomization, and 95%-98% of the water can be evaporated instantly in the hot air stream, and the drying time takes
  only a few seconds, especially suitable for drying heat-sensitive materials.



• The product has good uniformity, fluidity and solubility, high purity and good quality.

  The production process is simplified and the operation control is convenient. For the moisture content
  of 40-60% (special materials can be up to 90%) of the liquid can be dried into powder products, drying without crushing and screening, reducing the production process, improve product purity. The product
  particle size, bulk density, moisture, within a certain range can be adjusted by changing the operating conditions, control and management are very convenient.

Installation Demo:

Applicable materials:

• Chemical industry: Sodium fluoride (potassium), alkaline dyestuff and pigment, dyestuff intermediates, compound fertilizer, formaldehyde silicic acid, catalyst, sulfuric acid agent, amino acid, silica, etc.
• Plastic resin: AB, ABS emulsion, urea-formaldehyde resin, phenol-formaldehyde resin, mastic (urea) formaldehyde resin, polyethylene, polyvinyl chloride and so on.
• Food industry: enriched milk powder, tickle prion, cocoa milk powder, milk replacer powder, hunting blood powder, egg white (yolk) and so on.
• Food and plant: oats, chicken juice, coffee, instant tea, flavored spices meat, protein, soybean, peanut protein, hydrolysis, etc.
• Sugar: corn syrup, corn starch, glucose, pectin, maltose, potassium sorbate, etc.
• Ceramics: aluminum oxide, tile materials, magnesium oxide, talcum powder, etc.

technical specification:

Note: The evaporation of water is related to the characteristics of the material and the hot air inlet and outlet temperatures. When the outlet temperature is 90oC, the water evaporation curve is shown above
(for selection reference), with the continuous updating of the product, the relevant parameters change
without prior notice.

Ordering instructions

• Material name, physical properties: solid content (or water content), viscosity, surface tension, PH value.
• Capacity of powder after drying, permissible residual moisture content, particle size, permissible upper
  limit of temperature.
• Production capacity, daily opening time.
• Available energy: steam pressure available, electric capacity, available coal, oil, gas combustion.
• Control requirements: whether the inlet and outlet temperatures need self-control.
• Powder collection requirements: whether to install a bag catcher, the environment on the discharge of exhaust gas requirements.
• Other special requirements.

Example of LPG-200 centrifugal spray dryer configuration:

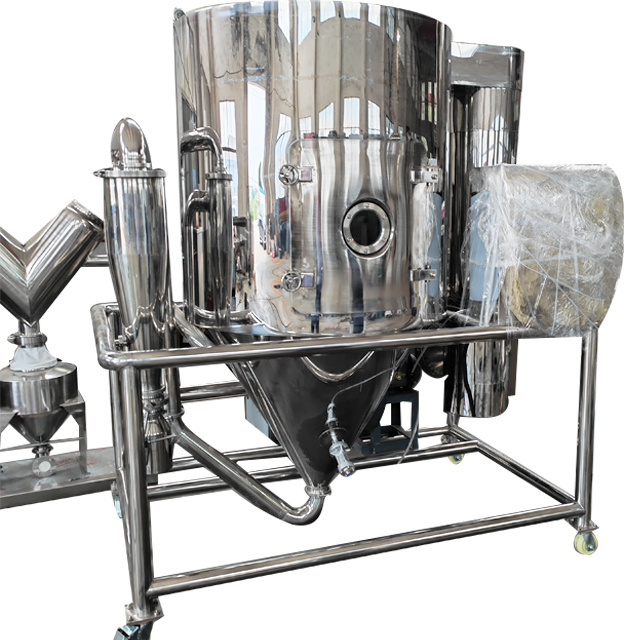

Equipment Picture:

WHY CHOOSE US:

Packaging & Shipping :

FAQ :
