Quick Details
-
Weight:
-
21000 KG
-
Marketing Type:
-
New Product 2021
-
Product name:
-
Water Well Drilling Rig
-
Drilling depth:
-
600m
-
Drilling diameter:
-
105-400mm
-
Drilling method:
-
Top Drive Hydraulic Rotary Drilling
-
Walking speed:
-
2.5 km/h
-
Lifting power:
-
30T
-
Rotation Speed:
-
45-140 rpm
-
Engine Power:
-
153kw
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Unique
-
Dimension(L*W*H):
-
10750x2550x4100mm
-
Weight:
-
21000 KG
-
Marketing Type:
-
New Product 2021
-
Product name:
-
Water Well Drilling Rig
-
Drilling depth:
-
600m
-
Drilling diameter:
-
105-400mm
-
Drilling method:
-
Top Drive Hydraulic Rotary Drilling
-
Walking speed:
-
2.5 km/h
-
Lifting power:
-
30T
-
Rotation Speed:
-
45-140 rpm
-
Engine Power:
-
153kw

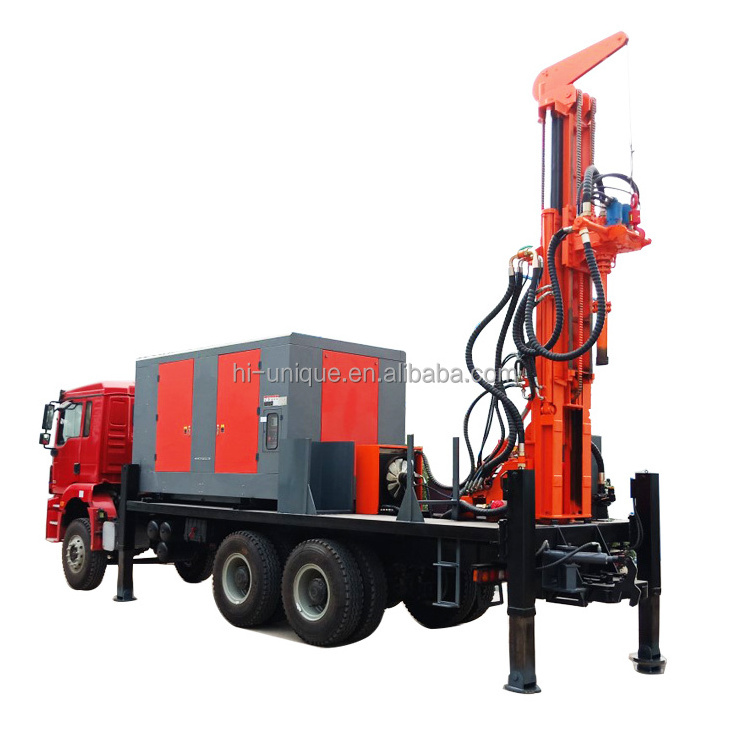

Truck mounted water well drilling rig
is adopts truck mounted and is a rotary and DTH drilling rig, and it can drill on clay, sand and rock. Easy operation, easy maintenance, whole drilling system install on heavy duty truck, it solves mountain,field work transport and lifting problems.
It is widely used in industrial and agricultural water conservancy engineering, wells and other exploration well hole, also can meet the engineering foundation reinforcement, loose sand and gravel strata with pipe drilling.
| 600m Crawler Water Well Drilling Rig Specification | |||
| The hole diameter | 140-400mm | Drill pipe diameter | φ102 φ108 φ114 |
| Drilling depth | 680m | Drill pipe length | 1.5m 2.0m 3.0m 6.0m |
| One- time advance length | 6.6m | Rig lifting force | 30T |
| Walking speed | 2.5 km/h | Rapid rise speed | 20 m/min |
| Equipped capacitor | 153kw | Fast feeding speed | 40 m/min |
| Using air pressure | 1.7-3.5 MPA | Hoisting force of winch | 2T |
| Air consumption | 17-42 m3/min | Swing torque | 8850-13150 N.m |
| Swing speed | 45-140 rpm | Equipped with hammer |
Medium and high wind pressure series |
| The penetration efficiency | 15-35 m/h | The engine brand | Cummins engine |
