Quick Details
-
Brand Name:
-
KATU
-
Model Number:
-
FS210
-
Operating Temperature:
-
-20...85°C(-30...120°C)
-
IP level:
-
IP67
-
Power supply::
-
18-30Vdc
-
Pressure range::
-
100Bar
-
Respone time::
-
1-13s, typical value 2s
-
Initialization time::
-
<8s
-
No-load current loss::
-
<40mA, under 24VDC
-
Medium temperature::
-
-20--85 ℃ (-30...120 ℃)
-
Probe ::
-
304 Stainless steel
-
Material::
-
304 Stainless steel
-
Electronic protection::
-
Reverse phase, short circuit, overload protection
-
Protection grade::
-
IP67
Quick Details
-
Media Type:
-
gas liquid
-
Flow Rate:
-
1-150cm/s(water) 3-300cm/s(oil) 20-2000cm/s(air)
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KATU
-
Model Number:
-
FS210
-
Operating Temperature:
-
-20...85°C(-30...120°C)
-
IP level:
-
IP67
-
Power supply::
-
18-30Vdc
-
Pressure range::
-
100Bar
-
Respone time::
-
1-13s, typical value 2s
-
Initialization time::
-
<8s
-
No-load current loss::
-
<40mA, under 24VDC
-
Medium temperature::
-
-20--85 ℃ (-30...120 ℃)
-
Probe ::
-
304 Stainless steel
-
Material::
-
304 Stainless steel
-
Electronic protection::
-
Reverse phase, short circuit, overload protection
-
Protection grade::
-
IP67
Products Description
Product principle

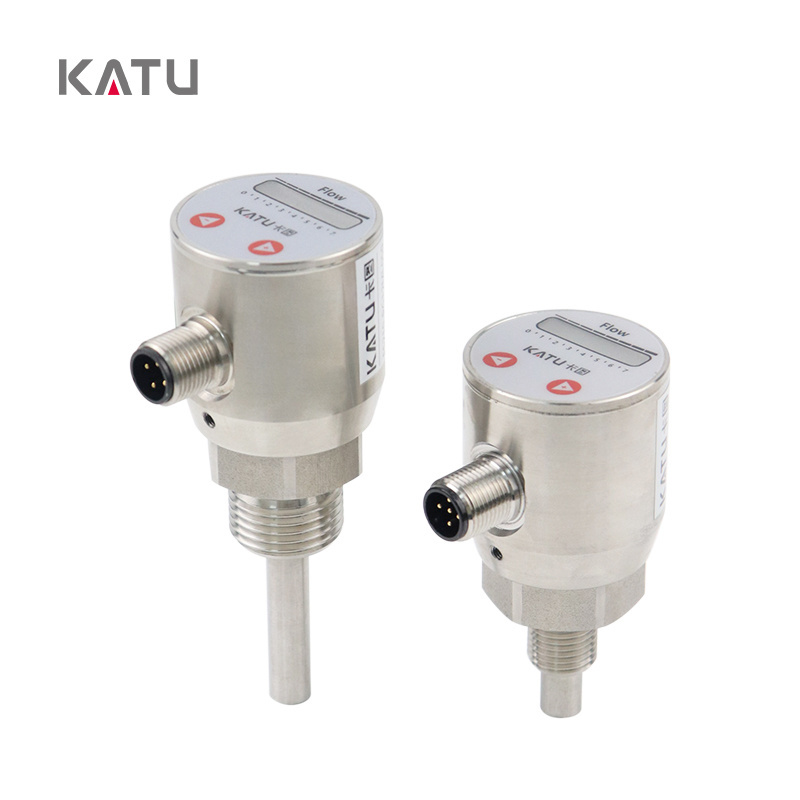

FS210 series thermal flow switches adopt the principle of thermal diffusion. There are two temperature sensors in the probe, one is used as a reference sensor to measure the temperature of the medium, the other is heated as a measurement sensor, the temperature difference between the two sensors as the basis for measuring the flow rate, when the flow rate of the medium increases, the temperature difference value decreases, and vice versa. The temperature difference value is converted into a standard electrical signal and displayed.
The FS210 series are all designed with an all-metal housing, 8-bit LED displays flow trends and switching status, and one product is suitable for a variety of pipe diameters. Can be set by keypad or computer. No moving parts, maintenance-free, can be used in a variety of media.
Product characteristics
- Wide range
- Set the switch point or define the range by pressing the button
More parameters can also be set through a handheld setter or computer
-8 leds display flow trends and switch status
-PNP/NPN/ Relay Output Optional
- Inductive button setting is easy to operate
- Protection level IP67
- Compact structure 36mm diameter
- The outlet direction can be rotated 330°
|
◇ Measuring range
|
Water: 1... 150cm/s (The default display value is water, other media specified)
Oil: 3... 300cm/s
Air: 20...2000cm/s
|
|
◇ Repeatability:
|
1%@ < 0.6m/s; 3%@ < 1.5m/s; 10%@ > 1.5m/s
|
|
◇ Switch output (normally open + normally closed) Output type:
|
PNP/NPN/ Relay optional/Normally open normally closed can be set
Load capacity: 500mA at 24Vdc power supply (NPN and PNP type) 24Vdc/1A (Relay type) |
|
◇ Display: Design:
|
3 red leds (flow rate < switch point) 1 yellow LED (flow rate = switch point) 4 green leds (flow rate > switch point)
|
|
◇ Temperature:
|
Operating/storage temperature: -40... 85 ℃
Medium temperature: -20... 85℃ (-30... 120℃)
|
|
◇ Materials
|
Housing: stainless steel 304
Probe: stainless steel 304/ stainless steel 306
|
Selection examples:
FS210-P/G14M/L030
(Output mode: PNP, connection thread: G1/4 external thread, rod length: 30mm)
