There are two types:
-Positive pressure in work area only protects sample.
-Negative pressure in work area protects operator and environment.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Material:
-
SS
-
Size:
-
/
-
Capacity:
-
/
-
Product name:
-
Laminar Flow Cabinet
-
External Size(W*D*H):
-
550*460*700 mm
-
Internal Size(W*D*H):
-
480*340*370 mm
-
Display:
-
LED Display
-
Airflow Velocity:
-
0.3~0.6m/s
-
Main Body:
-
Cold-rolled steel with anti-bacteria powder coating
-
Work Table:
-
304stainless steel
-
Pre-filter:
-
Polyester fiber, washable
-
HEPA Filter:
-
99.999%efficiency at 0.3um
-
Noise:
-
<60dB
Quick Details
-
Warranty:
-
1
-
Brand Name:
-
BIOBASE
-
Model Number:
-
BBS-V500
-
Place of Origin:
-
Shandong, China
-
Material:
-
SS
-
Size:
-
/
-
Capacity:
-
/
-
Product name:
-
Laminar Flow Cabinet
-
External Size(W*D*H):
-
550*460*700 mm
-
Internal Size(W*D*H):
-
480*340*370 mm
-
Display:
-
LED Display
-
Airflow Velocity:
-
0.3~0.6m/s
-
Main Body:
-
Cold-rolled steel with anti-bacteria powder coating
-
Work Table:
-
304stainless steel
-
Pre-filter:
-
Polyester fiber, washable
-
HEPA Filter:
-
99.999%efficiency at 0.3um
-
Noise:
-
<60dB
Product Description

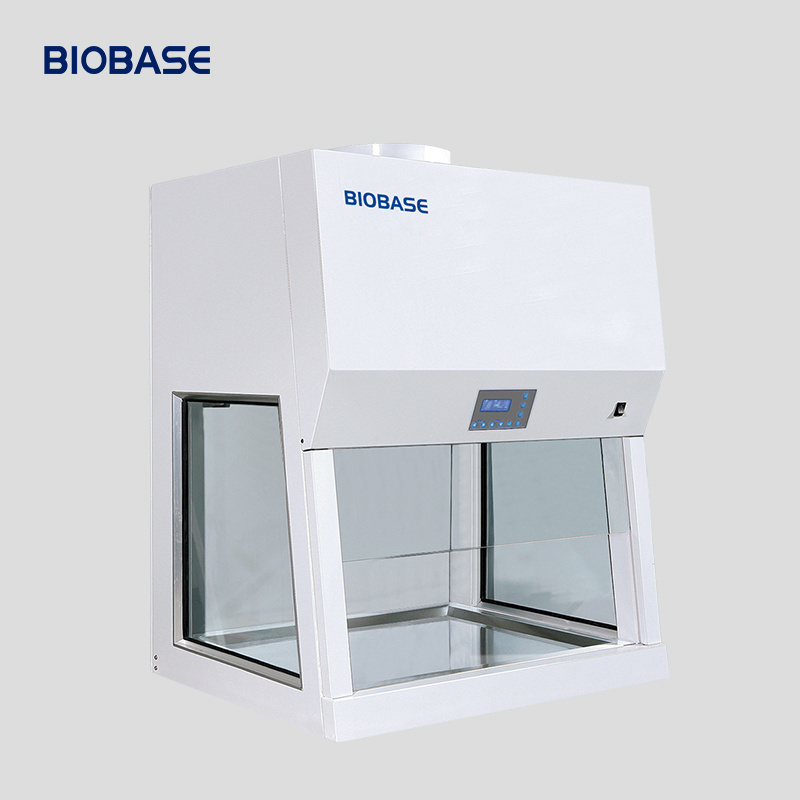

Vertical
Laminar Flow Cabinet
BBS-V500
There are two types:
-Positive pressure in work area only protects sample.
-Negative pressure in work area protects operator and environment.
ADVANTAGE
1.Air speed adjustable.
2.Tabletop type,easy to carry and save space.
3.Microprocessor control system,LED Display.
4.HEPA Filter with efficiency:99.999% at 0.3 μm.
1.Air speed adjustable.
2.Tabletop type,easy to carry and save space.
3.Microprocessor control system,LED Display.
4.HEPA Filter with efficiency:99.999% at 0.3 μm.
Product Introduction
|
Model
|
|
BBS-V500
|
BYKG-VII
|
BBS-V600
|
BYKG-VIII
|
BBS-V700
|
BYKG-IX
|
||||||
|
External Size (W*D*H)
|
|
550*460*700mm
|
|
600*581*1115mm
|
|
700*620*1150mm
|
|
||||||
|
Internal Size (W*D*H)
|
|
480*340*370mm
|
|
580*520*613mm
|
|
640*550*700mm
|
|
||||||
|
Display
|
|
LED Display
|
|
LCD Display
|
|
LED Display
|
|
||||||
|
Airflow Velocity
|
|
0.3~0.5m/s
|
≥0.5m/s
|
0.3~0.5m/s
|
0.3~0.8m/s
|
0.3~0.5m/s
|
0.3~0.8m/s
|
||||||
|
Material
|
Main Body
|
Cold-rolled steel with anti-bacteria power coating
|
|
|
|
|
|
||||||
|
|
Work Table
|
304 Stainless steel
|
|
|
|
Chemical resistant phenolic resin
|
|
||||||
|
Pre-Filter
|
|
Polyester fiber, washable(for model BBS-V500,BBS-V600 and BBS-V700)
|
|
|
|
|
|
||||||
|
Filter
|
|
HEPA Filter
|
Active Carbon Filter,
HEPA Filter |
HEPA Filter
|
Active Carbon Filter
|
HEPA Filter
|
Active Carbon Filter
|
||||||
|
Noise
|
|
≤65dB
|
≤60dB
|
≤52dB
|
≤68dB
|
≤65dB
|
≤68dB
|
||||||
|
Front Window
|
|
Manual, 5mm toughened glass, anti UV
|
|
Manual, acrylic material
|
|
Manual, acrylic material
|
|
||||||
|
Max Opening
|
|
310mm
|
|
590mm
|
|
660mm
|
|
||||||
|
LED Lamp
|
|
4W*1
|
|
4W*1
|
|
4W*2
|
|
||||||
|
UV Lamp
|
|
8W*1
|
|
8W*1
|
|
15W*1
|
|
||||||
|
|
|
Emission of 253.7 nanometers
|
|
|
|
|
|
||||||
|
Consumption
|
|
100W
|
|
150W
|
|
300W
|
|
||||||
|
Power Supply
|
|
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
|
|
|
|
|
|
||||||
|
Standard Accessory
|
|
HEPA Filter,
LED Lamp, UV Lamp*2. |
Active Carbon Filter,
HEPA Filter, LED Lamp, UV Lamp*2. |
HEPA Filter,
LED Lamp, UV Lamp*2, Waterproof Socket. |
Active Carbon Filter,
LED Lamp, UV Lamp*2. |
HEPA Filter,
LED lamp*2, Pipe Strap. |
Active Carbon Filter,
LED lamp*2, 4 meters PVC exhaust duct, Pipe Strap. |
||||||
|
Optional Accessory
|
|
Electric height adjustable base stand
|
|
|
|
UV Lamp*2
|
|
||||||
|
Gross Weight
|
|
57kg
|
|
90kg
|
|
45kg
60kg(with base stand) |
|
||||||
|
Package Size (W*D*H)
|
|
700*610*830mm
|
|
760*740*1280mm
|
|
840*760*1400mm
840*960*1400mm(with base stand) |
|
||||||
