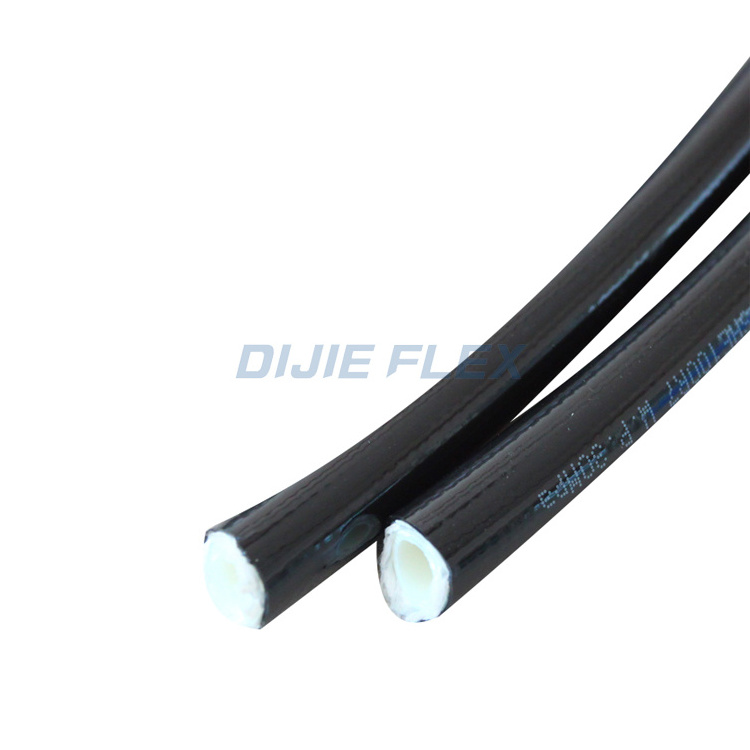

High quality LGP gas hose 3/8" plastic pipe for gas stove

FOB Reference Price: Get Latest Price

≥100 Meters

US $1.35

≥500 Meters

US $1.3

≥1000 Meters

US $1.2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: E0080D

Specification:: 8*12.5mm

Length:: 200meters

Thickness:: 2.1mm

Color:: Black/ red/ yellow/ blue

Working temperature:: -40℃-+93℃

W.P. MAX:: 120bar/1740PSI

B.P. MIN:: 480bar/6960PSI

HOSE I.D.:: 8mm

HOSE O.D:: 12.5mm

Minimum Mechanical Bending Radius:: 50mm

Fittings:: Swage and reusable fittings

Hose Weight:: 85g/m

Usage:: Low pressure hydraulics

Quick Details

Processing Service:: Moulding, Cutting

Place of Origin:: Shandong, China

Brand Name:: DIJIEFLEX

Model Number:: E0080D

Specification:: 8*12.5mm

Length:: 200meters

Thickness:: 2.1mm

Color:: Black/ red/ yellow/ blue

Working temperature:: -40℃-+93℃

W.P. MAX:: 120bar/1740PSI

B.P. MIN:: 480bar/6960PSI

HOSE I.D.:: 8mm

HOSE O.D:: 12.5mm

Minimum Mechanical Bending Radius:: 50mm

Fittings:: Swage and reusable fittings

Hose Weight:: 85g/m

Usage:: Low pressure hydraulics

High quality LGP gas hose 3/8" plastic pipe for gas stove

Product Description

Low pressure service hose suitable for hydraulic applications where there is a requirement for increased resistance to abrasion and limited grip cover at the same time.For use with petroleum synthetic or water based hydraulic fluids in hydraulic systems,Suitable for hydraulic and pneumatic pilot control lines.

INCH	HoseI.D	HoseO.D	Model No.	Working Pressure			Minimum BendRadius			Test Pressure	Min.Bend Radius	Hose Weight
INCH	(MM)	(MM)	Model No.	(Mpa)	(Bar)	(Psi)	(Mpa)	(Bar)	(Psi)	(Bar)	(mm)	(gr/m)
5/32	4	8	E0080A	15	150	2100	60	600	8000	300	20	30
3/16	5	8.5	E0080B	13	130	1850	52	520	7540	260	25	45
1/4	6.3	10.4	E0080C	13	130	1850	52	520	7540	260	40	60
5/16	8	12.5	E0080D	12	120	1740	48	480	6960	240	50	85
3/8	10	14.7	E0080E	12	120	1740	48	480	6960	240	60	105
