Priority Wire & Cable’s aluminum conductor MC Cable is suitable for use as follows: Branch, feeder and service power distribution
in commercial, industrial, and multi-residential buildings, power, lighting, control and signal circuits. Suitable for use in cable trays, approved raceways, concealed or exposed installations, environmental air-handling spaces, risers, as well as hazardous locations as permitted in articles 501,502,503 and 504.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Henan, China, Henan China
-
Brand Name:
-
Aoguli
-
Model Number:
-
MC cable, MC-002
-
Conductor:
-
Copper
-
Color:
-
Gray
-
Conductor Type:
-
Stranded
-
Gauge:
-
14/2+12/2+10/2
-
Rated voltage:
-
125V
-
Temperature range:
-
Minus40 to 105 degree
Quick Details
-
Insulation Material:
-
PVC
-
Application:
-
Overhead
-
Conductor Material:
-
Copper or Aluminum
-
Jacket:
-
PVC
-
Place of Origin:
-
Henan, China, Henan China
-
Brand Name:
-
Aoguli
-
Model Number:
-
MC cable, MC-002
-
Conductor:
-
Copper
-
Color:
-
Gray
-
Conductor Type:
-
Stranded
-
Gauge:
-
14/2+12/2+10/2
-
Rated voltage:
-
125V
-
Temperature range:
-
Minus40 to 105 degree

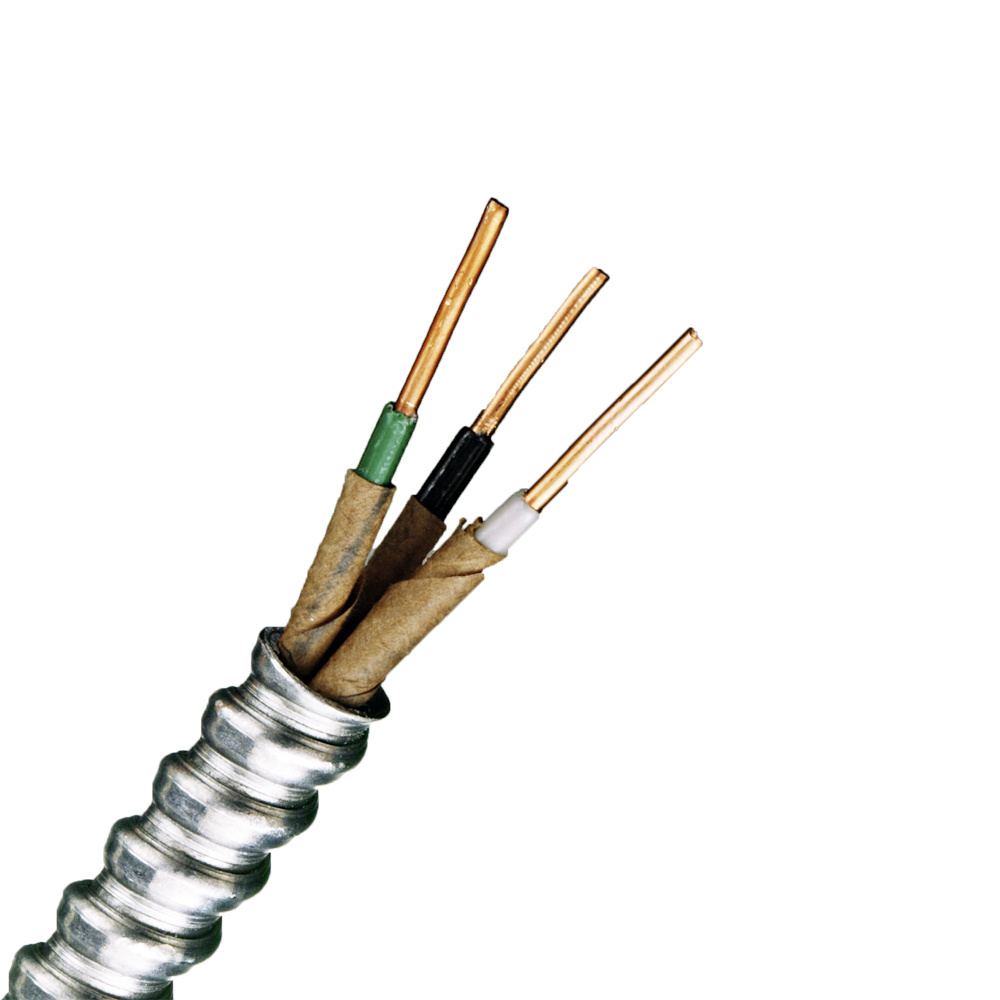

MC CABLE CONSTRUTION
|
Conductor
|
|
Compact strand 8000 series aluminum alloy conductors
|
|
||
|
Insulation
|
|
Color coded cross-linked polyethylene XHHW-2 AA-8000 XLP insulation. A binder tape is wrapped over the insulated conductors’ assembly
|
|
||
|
ARMOR
|
|
Overall aluminum interlocked armor Or steel
|
|
||
|
STANDARDS
|
|
UL 44, 83, 1569 for Type MC Cable for CT Use
NEMA WC-70/ICEA S-95-658
IEEEE 1202 70,000 BTU/HR Vertical Tray Flame Test
ASTMB800 & B801
NEC 518.4, NEC 520.5, NEC 645.5, and NEC 300.22 for environmental air-handling spaces
|
|
||
MC Cable
Description
MC Cable Technical Data
|
Part Number
|
Conductor
Size |
No.of
Cond. |
Ground
Size |
Insulation
Thickness |
Diameter
Over Armor |
Net
Weight |
Ampacity
|
|
|
AWG/kcmil
|
|
AWG/kcmil
|
inches
|
inches
|
lbs/kft
|
at 90℃
|
|
6-03GALUM-MC
|
6
|
3
|
6
|
0.045
|
0.91
|
265
|
55
|
|
6-04GALUM-MC
|
6
|
4
|
6
|
0.045
|
0.98
|
328
|
44
|
|
4-03GALUM-R-MC
|
4
|
3
|
6
|
0.045
|
1.01
|
335
|
75
|
|
4-04GALUM-R-MC
|
4
|
4
|
6
|
0.045
|
1.09
|
408
|
60
|
|
2-03GALUM-R-MC
|
2
|
3
|
6
|
0.045
|
1.13
|
438
|
100
|
|
2-04GALUM-R-MC
|
2
|
4
|
6
|
0.045
|
1.23
|
540
|
80
|
|
1-03GALUM-R-MC
|
1
|
3
|
4
|
0.055
|
1.25
|
548
|
115
|
|
1-04GALUM-R-MC
|
1
|
4
|
4
|
0.055
|
1.36
|
677
|
92
|
|
1/0-03GALUM-R-MC
|
1/0
|
3
|
4
|
0.055
|
1.33
|
633
|
135
|
|
1/0-04GALUM-R-MC
|
1/0
|
4
|
4
|
0.055
|
1.45
|
787
|
108
|
|
2/0-03GALUM-R-MC
|
2/0
|
3
|
4
|
0.055
|
1.42
|
735
|
150
|
|
2/0-04GALUM-R-MC
|
2/0
|
4
|
4
|
0.055
|
1.55
|
920
|
120
|
|
3/0-03GALUM-R-MC
|
3/0
|
3
|
4
|
0.055
|
1.52
|
862
|
175
|
|
3/0-04GALUM-R-MC
|
3/0
|
4
|
4
|
0.055
|
1.67
|
1,084
|
140
|
|
4/0-03GALUM-R-MC
|
4/0
|
3
|
2
|
0.055
|
1.64
|
1,038
|
205
|
|
4/0-04GALUM-R-MC
|
4/0
|
4
|
2
|
0.055
|
1.82
|
1,350
|
164
|
|
250-03GALUM-R-MC
|
250
|
3
|
2
|
0.065
|
1.79
|
1,198
|
230
|
|
250-04GALUM-R-MC
|
250
|
4
|
1
|
0.065
|
1.98
|
1,600
|
184
|
|
300-03GALUM-R-MC
|
300
|
3
|
2
|
0.065
|
1.92
|
1,415
|
260
|
|
300-04GALUM-R-MC
|
300
|
4
|
1
|
0.065
|
2.11
|
1,805
|
208
|
|
350-03GALUM-R-MC
|
350
|
3
|
2
|
0.065
|
2.02
|
1,586
|
280
|
|
350-03GALUM-R-MC-1/0
|
350
|
3
|
1/0
|
0.065
|
2.02
|
1,706
|
280
|
|
350-04GALUM-R-MC
|
350
|
4
|
1/0
|
0.065
|
2.22
|
2,047
|
224
|
|
400-03GALUM-R-MC
|
400
|
3
|
1
|
0.065
|
2.12
|
1,770
|
305
|
|
400-03GALUM-R-MC-2/0
|
400
|
3
|
2/0
|
0.065
|
2.12
|
1,910
|
305
|
|
400-04GALUM-R-MC
|
400
|
4
|
1/0
|
0.065
|
2.33
|
2,552
|
244
|
|
400-04GALUM-R-MC-3/0
|
400
|
4
|
3/0
|
0.065
|
2.33
|
2,446
|
244
|
|
400-04GALUM-R-MC-350
|
400
|
4
|
350
|
0.065
|
2.48
|
2,800
|
244
|
Please contact us for more parameters
