Quick Details
-
Brand Name:
-
VAM
-
Model Number:
-
VAM
-
Weight::
-
1.25kg
-
Dimension(L*W*H):
-
280*130*100mm
-
Application::
-
Measuring the material location of silo,Level Control
-
Power(Kw)::
-
3/4 W AC
-
Type::
-
rotary paddle type
-
Installation::
-
screw
-
Product name::
-
Non-Contact Water Level Sensor
-
Power supply::
-
24V DC
-
Working temperature::
-
-20~+80
-
Certificates::
-
CE
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
VAM
-
Model Number:
-
VAM
-
Weight::
-
1.25kg
-
Dimension(L*W*H):
-
280*130*100mm
-
Application::
-
Measuring the material location of silo,Level Control
-
Power(Kw)::
-
3/4 W AC
-
Type::
-
rotary paddle type
-
Installation::
-
screw
-
Product name::
-
Non-Contact Water Level Sensor
-
Power supply::
-
24V DC
-
Working temperature::
-
-20~+80
-
Certificates::
-
CE
Product Overview
IP67 Custom Made Fuel Water Tank Liquid Radar Level Meter Transmitter Non-Contact Water Level Sensor
mechanical level indicator, it is one silos part. Used to measure, or showing the raw materials quantity in the silos.
Resistance rotary switch is used for solid materials including powder, massive, granular, gel, etc.)
FEATURES AT A GLANCE
level controller. It has good sealing; overload capacity is strong, lightweight drag large capacity, output, contacts, etc. In view of the different proportion of material can be done by adjustable tension of the spring, contact material part of its full stainless steel material.
|
No
|
Item
|
Data
|
|
1
|
Contact capacity:
|
250 vac / 10 a SPDT (single pole double throw)
|
|
2
|
Power
|
4 w
|
|
3
|
The blade speed:
|
1 RPM (revolutions per minute)
|
|
4
|
Moment:
|
1.0 kg * cm
|
|
5
|
Insulation resistance:
|
100 m Ω or higher
|
|
6
|
Dielectric strength:
|
1500 v * 1 min
|
|
7
|
Protection grade:
|
IP65
|
|
8
|
Leaf blade material:
|
SUS304 SUS316
|
|
9
|
Voltage:
|
220V/24DC
|
Rotating level indicator, have been designed for electric signalling by rotary action of minimum or maximum material level inside bins, hoppers or silos.
Resistance rotary switch in the chemical, plastic, cement, medicine, feed, food and other industries widely used.
Powder charge mechanical level indicator, the working principle of resistance spin material level meter is the use of permanent magnet motor drive the blades rotating, When tested materials to rise to a leaf position, blade rotation is blocked, the resistance Force to the terminal box testing device, testing devices, phase output a switch Signals, and to cut off the power supply to rotate the blade to stop. When the materials fall, leaves resistance disappeared, rely on spring tension detection device Back to the original state, in view of the different proportion of tensile strength of the material can be adjusted, than a major When the spring tension adjustment to the strongest, the opposite adjustment to the weak.

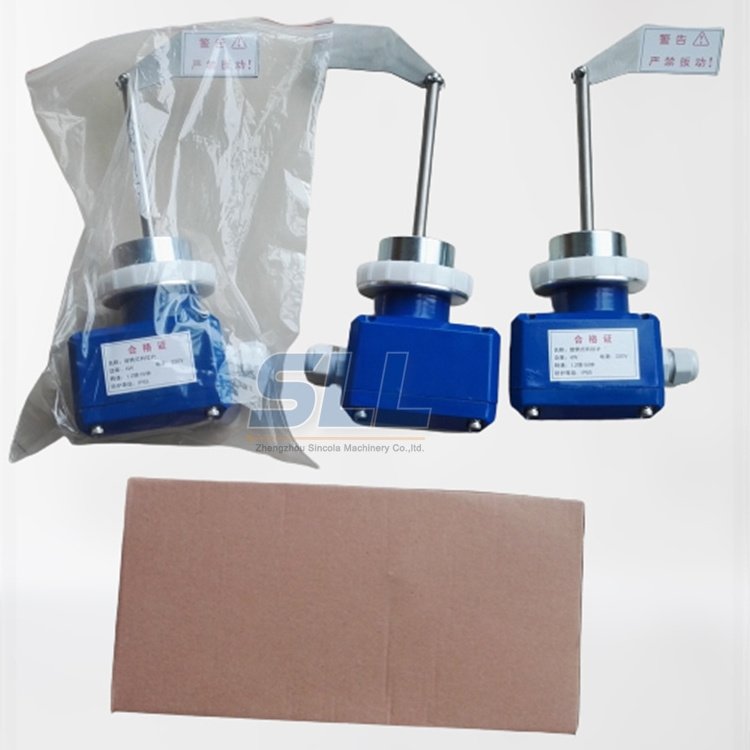

Product packaging
Packing: Carton Case Packing for less quantity, light weight, small volume, transportation cost will be cheaper.
When quantity is large, will use wooden case packing and by ship transportation.
Cement Silo Parts
Sincola also can provide cement silo accessories together with silo, such as screw conveyor, arch breaker device, butterfly valve, relief valve, Supply silo storage bulk powder storage silos level indicator, dust filter etc.
