Quick Details
-
Voltage:
-
220V/380V/415V
-
Dimension(L*W*H):
-
2.6*2.0*2.0M
-
Weight:
-
5
-
After-sales Service Provided1:
-
Free spare parts
-
After-sales Service Provided2:
-
Online support
-
After-sales Service Provided3:
-
Video technical support
-
After-sales Service Provided4:
-
Engineers available to service machinery overseas
-
TYPE:
-
single station or double station
-
ejector device:
-
2RT/3RT/4RT
-
Certification:
-
CE
-
Power:
-
32KW
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Core Components:
-
other
-
Brand Name:
-
TAYU
-
Voltage:
-
220V/380V/415V
-
Dimension(L*W*H):
-
2.6*2.0*2.0M
-
Weight:
-
5
-
After-sales Service Provided1:
-
Free spare parts
-
After-sales Service Provided2:
-
Online support
-
After-sales Service Provided3:
-
Video technical support
-
After-sales Service Provided4:
-
Engineers available to service machinery overseas
-
TYPE:
-
single station or double station
-
ejector device:
-
2RT/3RT/4RT
-
Certification:
-
CE
-
Power:
-
32KW
Rubber heat press molding machine , hydraulic press machine 100T
1. Machine Features:
1. With double-motor double-pump double-oil-circuit system design, two working positions are controlled independently, and operate independently.
2. Adopting former top mold opening and closing, so that a mold is pushed out from the clamping mechanism, which is opened in front of the machine, thus it is easy to take out the product;
3. Using high negative pressure vacuum hood design, so that a mold can be in a nearly full vacuum environment, improving mold venting;
5. The vacuum hood can achieve vacuum of -650mmHG or above within 4 seconds, so it is most suitable for products difficult in molding and requiring precision;
2. Application:
Applicable to o-rings, packing, keyboards, rotary drums, pharmaceutical stoppers, anti-shock supplies, black rubber products, daily necessities, gaskets, conductive products, electronic equipment, etc. whose appearance require beautiful and edges
3. Main model and parameter :
|
No. |
Item |
Unit |
Model Item Parameters |
|
||
|
1 |
Clamping Force |
ton |
200 |
250 |
300 |
400 |
|
2 |
Master Cylinder Diameter |
mm |
φ350 |
φ400 |
φ450 |
φ500 |
|
3 |
Master Cylinder Stroke |
mm |
250 |
250 |
250 |
300 |
|
4 |
Mold Stroke |
mm |
660/840 |
750/840 |
750/840 |
750/840 |
|
5 |
Former Top Cylinder Stroke |
mm |
250 |
300 |
300 |
300 |
|
6 |
Upper Hot Plate Dimensions |
mm |
503X508 |
600X600 |
600×600 |
700×700 |
|
7 |
Lower Hot Plate Dimensions |
mm |
540X560 |
650X600 |
650×650 |
700×760 |
|
8 |
Heating Power |
kW |
13.5x2 |
18x2 |
18×2 |
18x2 |
|
9 |
Oil Pump Motor Power |
kW |
7.5x2 |
7.5x2 |
7.5×2 |
7.5×2 |
|
1 0 |
Oil Tank Capacity |
L |
450 |
450 |
450 |
500 |
|
1 1 |
System Pressure |
bar |
200 |
200 |
200 |
200 |
|
1 2 |
Total Power |
kW |
42 |
51 |
51 |
55 |
|
1 3 |
Dimensions |
3.0×2.4×2.0 |
3.5×2.3×2.65 |
3.35×2.55×2.4 |
4.0×2.8×2.8 |
|
|
14 |
Weight |
T |
9 |
11.7 |
13.5 |
22 |

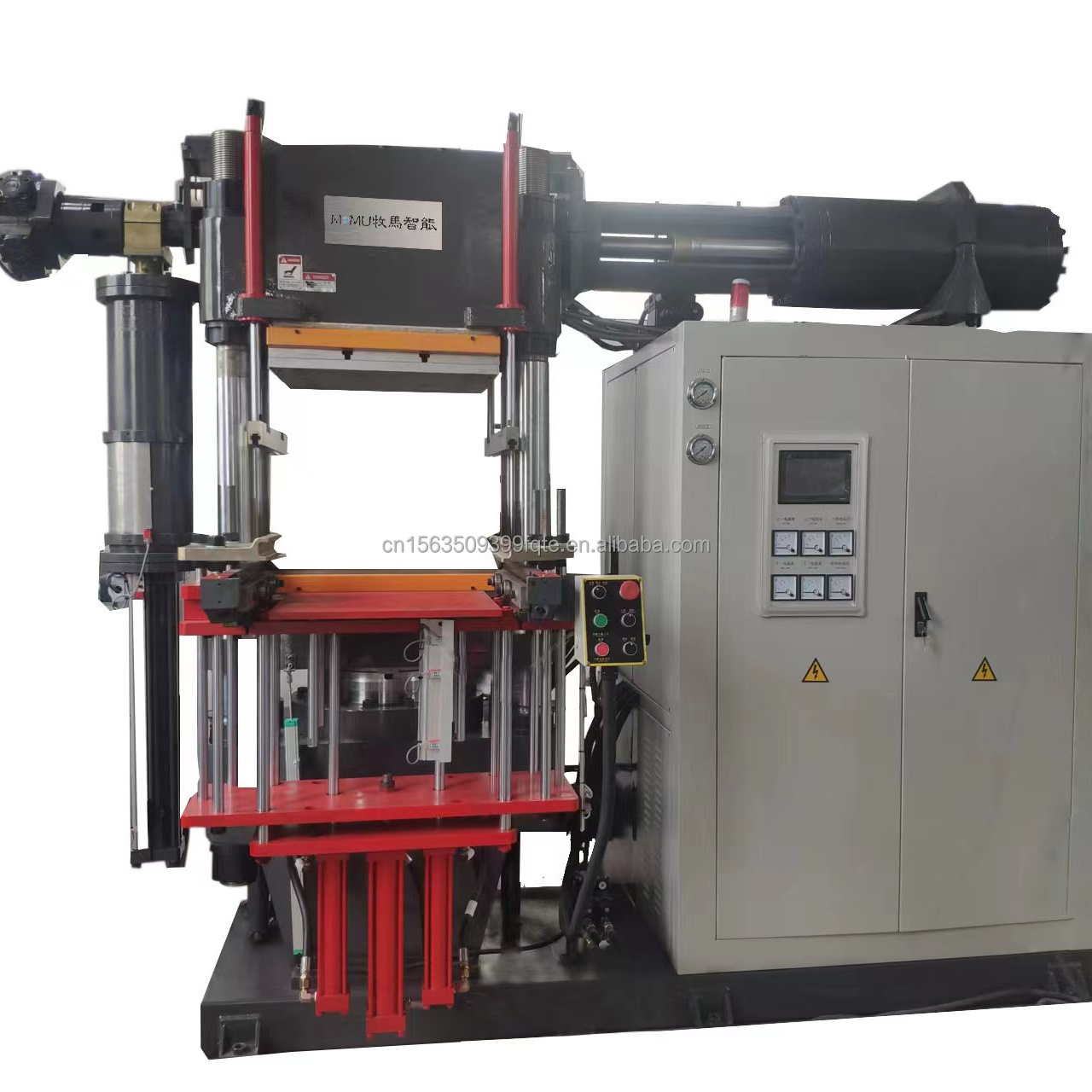

4. Machine and products pictures :
5. Package :
6. Our exhibition :
7.Our factory:
8.The main service item on our machine
- installation and debugging: Our engineers will teach you about the installation and debugging for free.
- Technology training : Our company will offer technology training for your operation.
- After-sales service: We will supply the free repairment on this machine for one year,
but will supply the maintenance lifetime. ( the service is only for natural damage)
