Quick Details
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
FT-OPTO
-
Model Number:
-
FB0550
-
Product name:
-
Microscopio 4K zoom lens ratio 1:10 FB0550 C-mount microscope lens
-
Zoom body:
-
0.5-5X
-
ratio:
-
1:10
-
Feature:
-
4K high resolution
-
Application:
-
mobile phone repair,PCB/SMT inspect,solding
Quick Details
-
Warranty:
-
1 year
-
Theory:
-
Video Microscope
-
Drawtube:
-
Monocular
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
FT-OPTO
-
Model Number:
-
FB0550
-
Product name:
-
Microscopio 4K zoom lens ratio 1:10 FB0550 C-mount microscope lens
-
Zoom body:
-
0.5-5X
-
ratio:
-
1:10
-
Feature:
-
4K high resolution
-
Application:
-
mobile phone repair,PCB/SMT inspect,solding
Ft-Opto FB0550 0.5-5.0X Ultra high Resolution 4K Apochromatic Zoom Lens
Standard list:0.5-5X zoom body+C mount +objetive lens
Product Description
Main Feature
Apochromatic optical system. Ultra 4K image. Greatly improve the analysis and automated intelligent computing judgment.

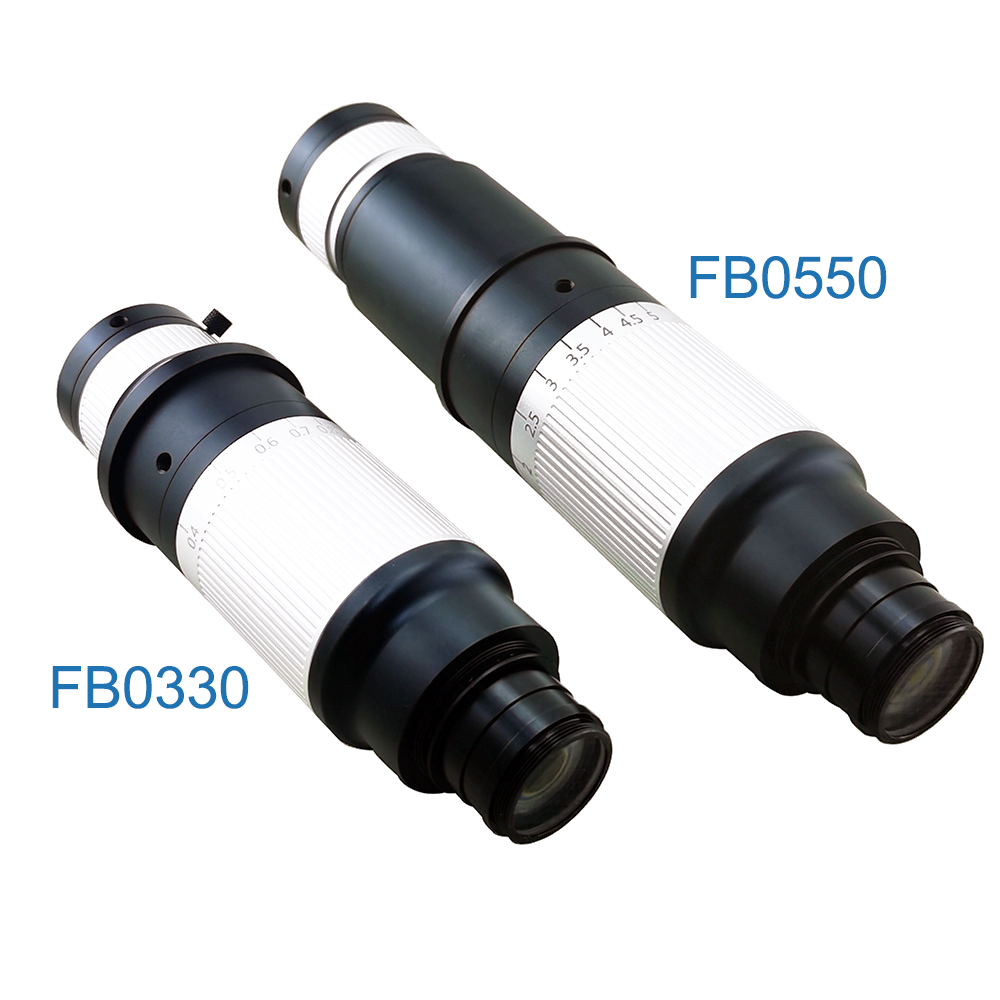

FB0330 0.3-3.0X zoom body, support max sensor size of camera is 2/3 inch.
FB0550 0.5-5.0X zoom body Supports 1inch sensor camera.
Improve FOV more 1.5X than the traditional zoom lens at the same magnification.
Modular design. It can be equipped with functional components such as coaxial lighting, APO objective and objective nosepiece etc.
Using the principle of apochromatic system, the image is perfectly clear without refocusing in different wavelength lighting
situations. Widely used in food, silicon chips, chips, electronic components, biology and other fields of detection and research.
1:10 zoom ratio.0.3-3.0X standard zoom body. User can choose different magnification C mount and objective lens. The expansible
multipliers are shown below：
FB0330 0.3-3.0X zoom body, support max sensor size of camera is 2/3 inch.
FB0550 0.5-5.0X zoom body Supports 1inch sensor camera.
Improve FOV more 1.5X than the traditional zoom lens at the same magnification.
Modular design. It can be equipped with functional components such as coaxial lighting, APO objective and objective nosepiece etc.
Using the principle of apochromatic system, the image is perfectly clear without refocusing in different wavelength lighting
situations. Widely used in food, silicon chips, chips, electronic components, biology and other fields of detection and research.
1:10 zoom ratio.0.3-3.0X standard zoom body. User can choose different magnification C mount and objective lens. The expansible
multipliers are shown below：
|
Model
|
Zoom body
|
C mount
|
Objective
|
magnification
|
WD
|
|||||
|
FB0330
|
0.3-3.0X
|
1X
|
1X
|
0.3-3.0X
|
100mm
|
|||||
|
FB0550
|
0.3-3.0X
|
1.67X
|
1X
|
0.5-5.0X
|
100mm
|
|||||
|
FB0990
|
0.3-3.0X
|
3X
|
1X
|
0.9-9.0X
|
100mm
|
|||||
|
FB10100
|
0.3-3.0X
|
3.33X
|
1X
|
1.0-10X
|
100mm
|
|||||
|
Customized magnification
|
|
|
|
|
|
|||||
|
FB0440
|
0.3-3.0X
|
1.33X
|
1X
|
0.4-4.0X
|
100mm
|
|||||
|
FB0660
|
0.3-3.0X
|
2X
|
1X
|
0.6-6.0X
|
100mm
|
|||||
|
FB0770
|
0.3-3.0X
|
2.33X
|
1X
|
0.7-7.0X
|
100mm
|
|||||
|
FB0880
|
0.3-3.0X
|
2.67X
|
1X
|
0.8-8.0X
|
100mm
|
|||||
FB0550 0.5-5.0X Ultra Resolution 4K Zoom Lens
|
Model
|
FB0550
|
|
|
|
|
|
|||||
|
Magnification
|
0.5X
|
1.0X
|
2.0X
|
3.0X
|
4.0X
|
5.0X
|
|||||
|
Focus distance(mm)
|
45
|
90
|
180
|
270
|
360
|
450
|
|||||
|
Working distance(mm)
|
100
|
100
|
100
|
100
|
100
|
100
|
|||||
|
Depth of field（mm）
|
3.48
|
0.93
|
0.29
|
0.16
|
0.10
|
0.07
|
|||||
|
NA(mm)
|
0.023
|
0.043
|
0.070
|
0.085
|
0.097
|
0.107
|
|||||
|
Resolution(mm)
|
0.015
|
0.008
|
0.005
|
0.004
|
0.003
|
0.003
|
|||||
|
F/#
|
10.9
|
11.6
|
14.3
|
17.6
|
20.6
|
23.4
|
|||||
|
Dist%
|
2.97%
|
1.10%
|
0.20%
|
-0.03%
|
0.13%
|
0.20%
|
|||||
|
CCD
|
1”
|
1”
|
1”
|
1”
|
1”
|
1”
|
|||||
|
Mount
|
C
|
C
|
C
|
C
|
C
|
C
|
|||||
|
F/#
|
21.7
|
11.6
|
7.1
|
5.9
|
5.2
|
4.7
|
|||||
Optional Accessory
|
Model
|
Name
|
Specification
|
|
W4K05
|
0.5X Objective
|
Working distance:180mm
|
|
W4K20
|
2.0Xobjective
|
Working distance：38mm
|
|
C4K10
|
C Mount
|
Standard C mount ，1X
|
|
C4K167
|
C Mount
|
Standard C mount ，1.67X
|
|
C4K30
|
C Mount
|
Standard C mount ，3.0X
|
|
C4K333
|
C Mount
|
Standard C mount ，3.33X
|
|
LC4K16
|
high light coaxial device
|
Light diameter：16mm
|
|
LC4K11L
|
L style coaxial device
|
Light diameter：11mm
|
