Quick Details
-
Measuring Capacitance Range:
-
40nF/400nF/4μF/40μF/100μ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UNI-T
-
Model Number:
-
UT81B
-
Measuring Inductance Range:
-
none
-
Operating Temperature:
-
-40---1000
-
Dimensions:
-
200mm X 100mm X 48 mm
-
Color:
-
RED / GRAY
-
LCD size:
-
60mm X 60 mm
-
Frequency:
-
10Hz-10MHz
Quick Details
-
Measuring Current Range:
-
400μA/40mA/400mA/4A/10A
-
Measuring Voltage Range:
-
400mV/4V/40V/400V/1000V
-
Measuring Resistance Range:
-
400Ω/4KΩ/400KΩ/4MΩ/40MΩ
-
Measuring Capacitance Range:
-
40nF/400nF/4μF/40μF/100μ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UNI-T
-
Model Number:
-
UT81B
-
Measuring Inductance Range:
-
none
-
Operating Temperature:
-
-40---1000
-
Dimensions:
-
200mm X 100mm X 48 mm
-
Color:
-
RED / GRAY
-
LCD size:
-
60mm X 60 mm
-
Frequency:
-
10Hz-10MHz

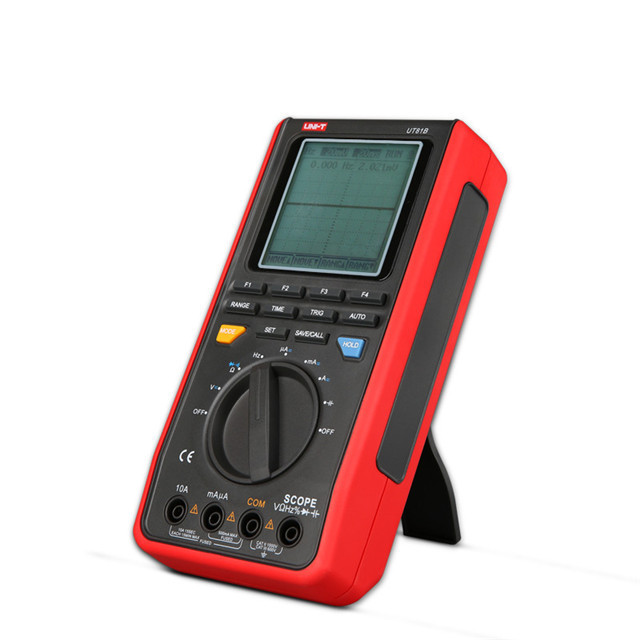

Scope Digital Multimeter UT81A/B (hereafter referred to as "the Meter") is a 3999 counts and 3 3/4 digits
adopting digital control techique with both waveform and multimeter all in one. Scope mode is a complete intelligent measurement system including signal input, sampling, data process, auto search and waveform save and recall.
Ut81 Real-Time Sample Rate LCD Scope Dmm Digital Multimeter parameter:
| Specifications | Range | Best Accuracy |
| Model | UT81B | |
| DMM Specifications | ||
| DC Voltage (V) | 400mV/4V/40V/400V/1000V | ±(0.8%+8) |
| AC Voltage (V) | 4V/40V/400V/750V | ±(1%+15) |
| DC Current (A) | 400μA/4000μA/40mA/400mA/4A/10A | ±(1%+8) |
| AC Current (A) | 400μA/4000μA/40mA/400mA/4A/10A | ±(1.5%+8) |
| Resistance (Ω) | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ | ±(1%+5) |
| Capacitance (F) | 40nF/400nF/4μF/40μF/100μF | ±(3%+8) |
| Frequency (Hz) | 10Hz-10MHz | ±(0.1%+3) |
| Scope Specification | Range | Best Accuracy |
| Bandwidth | 8MHz | |
| Real-Time Sample Rate | Constant sampling rate (peak sampling) | 40MS/s |
| Vertical Accuracy | ±(5%+1) | |
| Input Sensitivity | 20mV/div - 500V/div(1-2-5) | √ |
| Horizontal Accuracy | ±(0.1%+1) | |
| Time-Base Range | 100ns/div - 5s/div(1-2-5) | √ |
| Features | ||
| Display Count | 3999 | |
| Auto Range | √ | |
| Duty Cycle | 0.1 ~ 99.9% | √ |
| Diode | √ | |
| Auto Power Off | Can set their own | √ |
| Continuity Buzzer | √ | |
| Display | 160 x 160 Monochrome | √ |
| Trigger Types | Free Run/Normal/Single Shot | √ |
| Memory | 10 screens and setups | √ |
| Contrast and Bright Setup | √ | |
| Low Battery Indication | √ | |
| USB Interface | √ | |
| LCD Backlight | √ | |
| Input Impedance for DCV | ≥10MΩ | √ |
| General Characteristic | ||
| Power | 1.5V Batteries(R6)X 4 | |
| LCD Size | 60mm X 60 mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 498g | |
| Product Size | 200mm X 100mm X 48 mm | |
| Standard Accessories | Batteries, Test Lead,Alligator Clip,USB Interface Cable,PC Software CD, BNC Probe | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 20 PCs | |
| Standard Carton Measurement | 490mm X 385mm X 510mm (0.096 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 24 Kg | |
| Optional Accessories | Scope Probe,AC Power Adaptor | |
We provide 30 days warranty counting from the arrival date of the item.
If the parts you purchased from us are not of perfected quality or they don't work, please simply return them to us for replacement or refund.
If the part is defective, please notify us within 3 days after arrival.
Any parts must be returned in their original condition to qualify for a refund or replacement.
