Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Deye
-
Model Number:
-
SUN-12/14/16K-SG01LP1
-
Output Voltage:
-
220V/230 L+N+PE
-
Output Frequency:
-
50/60 HZ
-
Size:
-
464*763*282 mm
-
Certificate:
-
CE TUV IEC VDE SAA
-
Warranty:
-
5 Years
-
Weight:
-
52KG
-
Product name:
-

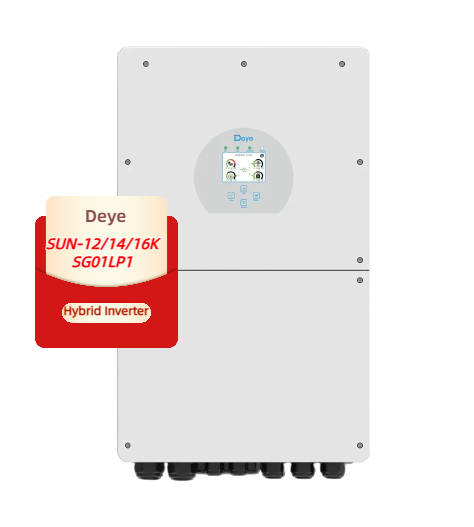

Deye SUN-12/14/16K-SG01LP1 Hybrid Solar Inverter
-
Inverter type:
-
Hybrid Power Inverter
-
Communication:
-
RS485; CAN
-
Rated power:
-
12KW 14KW 16KW
-
Battery type:
-
Lithium-ion
-
Grid Type:
-
Single Phase
-
MPPT Efficiency:
-
99.90%
-
MPPT Range (V):
-
150-425V
-
Battery Voltage Range (V):
-
40-60V
-
Application:
-
Solar Power System
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
97.6%
-
Place of Origin:
-
China
-
Brand Name:
-
Deye
-
Model Number:
-
SUN-12/14/16K-SG01LP1
-
Output Voltage:
-
220V/230 L+N+PE
-
Output Frequency:
-
50/60 HZ
-
Size:
-
464*763*282 mm
-
Certificate:
-
CE TUV IEC VDE SAA
-
Warranty:
-
5 Years
-
Weight:
-
52KG
-
Product name:
-
Deye SUN-12/14/16K-SG01LP1 Hybrid Solar Inverter
-
Inverter type:
-
Hybrid Power Inverter
-
Communication:
-
RS485; CAN
-
Rated power:
-
12KW 14KW 16KW
-
Battery type:
-
Lithium-ion
-
Grid Type:
-
Single Phase
-
MPPT Efficiency:
-
99.90%
-
MPPT Range (V):
-
150-425V
-
Battery Voltage Range (V):
-
40-60V
-
Application:
-
Solar Power System
Product Description
12-16kW | Single Phase | 3 MPPT |
Hybrid Inverter
|
LV Battery Supported
SUN 12/14/16K-SG，hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 12/14/16K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout. It equipped with RS485/CAN port for battery communication
Product Details
Specification
Working Connection Diagram
|
Model
|
SUN-12K-SG01LP1-EU
|
SUN-14K-SG01LP1-EU
|
SUN-16K-SG01LP1-EU
|
|||
|
Battery Input Data
|
|
|
|
|||
|
Battery Type
|
Lead-acid or Lithium-ion
|
|
|
|||
|
Battery Voltage Range (V)
|
40-60
|
|
|
|||
|
Max. Charging Current (A)
|
220
|
250
|
290
|
|||
|
Max. Discharging Current (A)
|
220
|
250
|
290
|
|||
|
Charging Strategy for Li-ion Battery
|
Self-adaption to BMS
|
|
|
|||
|
Number of Battery Input
|
2
|
|
|
|||
|
PV String Input Data
|
|
|
|
|||
|
Max. DC Input Power (W)
|
15600
|
18200
|
20800
|
|||
|
Max. DC Input Voltage (V)
|
500
|
|
|
|||
|
Start-up Voltage (V)
|
125
|
|
|
|||
|
MPPT Voltage Range (V)
|
150-425
|
|
|
|||
|
Rated DC Input Voltage (V)
|
370
|
|
|
|||
|
Max. Operating PV Input Current (A)
|
26+26+26
|
|
|
|||
|
Max. Input Short-Circuit Current (A)
|
44+44+44
|
|
|
|||
|
No.of MPPT Trackers/ No.of String Per MPPT Tracker
|
3/2+2+2
|
|
|
|||
|
AC Input/Output Data
|
|
|
|
|||
|
Rated AC Input/Output Active Power (W)
|
12000
|
14000
|
16000
|
|||
|
Max. AC Input/Output Apparent Power (VA)
|
13200
|
15400
|
17600
|
|||
|
Rated AC Input/Output Current (A)
|
54.5/52.2
|
63.6/60.9
|
72.7/69.6
|
|||
|
Max. AC Input/Output Current (A)
|
60/57.4
|
70/67
|
80/76.5
|
|||
|
Rated Input/Output Voltage/Range (V)
|
220/230 0.85Un-1.1Un
|
|
|
|||
|
Grid Connection Form
|
L+N+PE
|
|
|
|||
|
Warranty
|
5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
|
|
|
|||
