Top Selling Coconut Shell Charcoal Activation Carbon Rotary Kiln Machine

Top Selling Coconut Shell Charcoal Activation Carbon

Rotary Kiln Machine

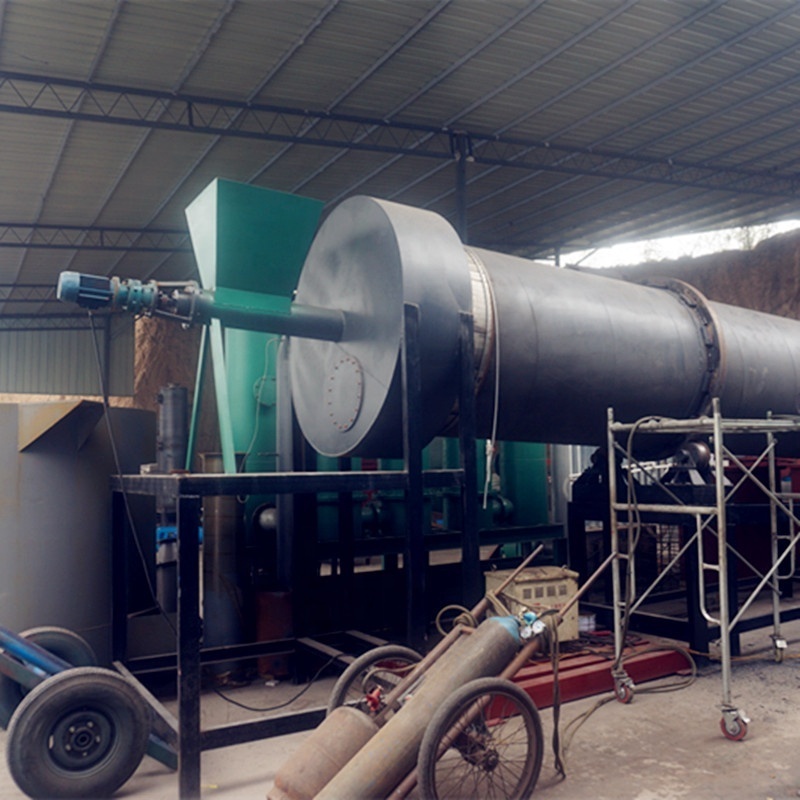

Brief Introduction of Coconut Shell Charcoal Activation Carbon Rotary Kiln Machine

Coconut shell charcoal activation carbon rotary kiln machine used for deal with small size raw material, such as: sawdust, rice husk, Wood chips, jute stick, coconut she ll which after crushing, this is new technology and environment friendly charcoal processing machine, with control cabinet.

Technology Parameter for Coconut Shell Charcoal Activation Carbon Rotary Kiln Machine

Coconut shell charcoal activation carbon rotary kiln machine	Capacity: It could deal with sawdust 1.2-1.5tons/h Deal with coconut shell 1.5-2tons/h Weight: 28tons Carbonization body Diameter: 1.4m                Length: 14m Complete machine size Length: 20m  Width: 2.2m  Height: 3.2m Input raw materials size ≤6cm Function: carbonizing the raw material to charcoal, could carbonize rice husk, sawdust, coconut shell

Coconut Shell Charcoal Activation Carbon Rotary Kiln Machine Material And Product

This machine is very suitable for caronized small size biomass material, such as: sawdust, rice husk, wood chips and etc. It with high efficiency, could carbonized those material totally, the final charcoal could use for making activated carbon.

Coconut Shell Charcoal Activation Carbon Rotary Kiln Machine Main Technology

1 New design, the cabonization furnace body: diameter 1.4m, length 14m w ith three-layer body, the inside is high quality insulating refractory brick, t he middle layer is insulated nanometer materials to to prevent temperature loss, t he outside layer is 12mm steel plate with long life-time.

2 The carbonizaing temperature could reach 600-1000 ℃ and machine working speed is

adjustable, for different materials, we suggest different temperature and working s peed to sure

the material can totally carbonized, get high quality charcoal.

Catalytic Furnace for Coconut Shell Charcoal Activation Carbon Rotary Kiln Machine

1 Match catalytic furnace, put the sawdust to catalytic furnace, then it will deal with s awdust

and producing combustible gas, the combustible gas burning to increase temperature, there is no any smoke and dust producing, when the temperature reach 600-100℃, the carbonization furnace start working.

2 When the catalytic furnace producing gas, it ’ s burning and heating inside of buffer d evice,

there is no light fire producing. It ’ s secure and energy-saving low temperature heat supply equipment.

Smoke Treatment System for Coconut Shell Charcoal Activation Carbon Rotary Kiln Machine

The whole system has 4 functions, removing dust, filtering the tar oil, purify smoke

condensation chemical substances and cooling charcoal. When carbonization machine deal with sawdust, or rice husk those material to making charcoal. It will produce some smoke, dust, tar oil and chemical product, this system is our latest technology to deal with smoke and tar oil, has good environment projection.
