Quick Details
-
Ejector Force(kN):
-
565 kN
-
Theoretical Shot Volume(cm³):
-
43904 cm³
-
Injection Rate (g/s):
-
2200 g/s
-
Injection Weight (g):
-
39953 g
-
Screw diameter (mm):
-
220 mm
-
Weight (KG):
-
220000 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
2000 mm
-
Model Number:
-
HTW F Series 3000
-
Brand Name:
-
HAITAI
-
Power (kW):
-
220 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
Oiltank Cubage:
-
4500L
-
Machine weight:
-
37
-
Machine dimension(L*W*H):
-
22.0*5.50*5.0
-
Heating power:
-
177
-
Pump motor power:
-
55+55+55+55
-
Ejector force:
-
16
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
1750mm
-
Distance between Tie Bars(Height)(mm):
-
1900mm
-
Ejector Stroke(mm):
-
450 mm
-
Ejector Force(kN):
-
565 kN
-
Theoretical Shot Volume(cm³):
-
43904 cm³
-
Injection Rate (g/s):
-
2200 g/s
-
Injection Weight (g):
-
39953 g
-
Screw diameter (mm):
-
220 mm
-
Weight (KG):
-
220000 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
2000 mm
-
Model Number:
-
HTW F Series 3000
-
Brand Name:
-
HAITAI
-
Power (kW):
-
220 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
Oiltank Cubage:
-
4500L
-
Machine weight:
-
37
-
Machine dimension(L*W*H):
-
22.0*5.50*5.0
-
Heating power:
-
177
-
Pump motor power:
-
55+55+55+55
-
Ejector force:
-
16
1 . SPECIFICATIONS

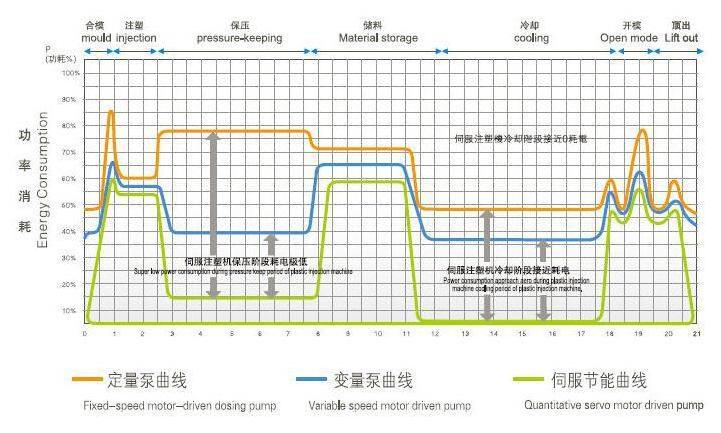

Advantage:
2 . TECHNICAL PARAMETERS
|
SPECIFICATION |
HTW3000 |
|||
|
|
A |
B |
C |
|
|
INJECTION UNIT |
|
|||
|
Screw diameter |
mm |
180 |
210 |
220 |
|
Screw L/D ratio |
L/D |
24 |
24 |
22.9 |
|
Shot volume(theoretical) |
cm3 |
29390 |
40003 |
43904 |
|
Injection weight(ps) |
g |
26745 |
36402 |
39953 |
|
Injection rate |
g/s |
1468 |
2000 |
2200 |
|
Injection pressure |
Mpa |
210 |
155 |
141 |
|
Screw pressure |
rpm |
50 |
||
|
CLAMPING UNIT |
|
|||
|
Clamping force |
kN |
30000 |
||
|
Open stroke |
mm |
2000 |
||
|
Space between tie bars(W×H) |
mm |
1900×1750 |
||
|
Max.Mold height |
mm |
1900 |
||
|
Min.Mold height |
mm |
1000 |
||
|
Ejector stroke |
mm |
450 |
||
|
Ejector force |
kN |
565 |
||
|
OTHERS |
|
|||
|
Max.Pump pressure |
MPa |
16 |
||
|
Pump motor power |
kW |
55+55+55+55 |
||
|
Heating power |
kW |
177 |
||
|
Machine dimension(L×W×H) |
m |
22.0×5.50×5.0 |
||
|
Oiltank cubage |
L |
4500 |
||
|
Machine weight |
t |
220 |
||
| PLATEN DIMENSIONS |
|
| MOULD SPACE DIMENSOINS |
