Hot Selling 63 Tons C Type Design Frame Hydraulic Press Machine
Hot Selling 63 Tons C Type Design Frame Hydraulic Press Machine
Hot Selling 63 Tons C Type Design Frame Hydraulic Press Machine
Hot Selling 63 Tons C Type Design Frame Hydraulic Press Machine
Hot Selling 63 Tons C Type Design Frame Hydraulic Press Machine
Hot Selling 63 Tons C Type Design Frame Hydraulic Press Machine
Hot Selling 63 Tons C Type Design Frame Hydraulic Press Machine
Hot Selling 63 Tons C Type Design Frame Hydraulic Press Machine

Hot Selling 63 Tons C Type Design Frame Hydraulic Press Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $6100
≥3 Sets
US $5600
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
220V
Dimension(L*W*H):
450*566*1120
Motor Power (kW):
5.5
Model Number:
YQ41
Weight (T):
1.6
Marketing Type:
New Product
Product name:
Power Press Machine
Application:
Metal Sheet Stamping
Keyword:
Mechanical Metal Punching Machine
Function:
Steel Metal Punching
Name:
Hydraulic Punch Press Machine
Usage:
Pressing Metal Products
Type:
Multi Functional
Material:
Steel Material
Color:
Grey
Nominal Force (kN):
250

Quick Details

Slide Stroke (mm):
400
Place of Origin:
Shandong, China
Brand Name:
woda
Voltage:
220V
Dimension(L*W*H):
450*566*1120
Motor Power (kW):
5.5
Model Number:
YQ41
Weight (T):
1.6
Marketing Type:
New Product
Product name:
Power Press Machine
Application:
Metal Sheet Stamping
Keyword:
Mechanical Metal Punching Machine
Function:
Steel Metal Punching
Name:
Hydraulic Punch Press Machine
Usage:
Pressing Metal Products
Type:
Multi Functional
Material:
Steel Material
Color:
Grey
Nominal Force (kN):
250

63 ton hydraulic press C type single arm hydraulic press Parts correction drawing hydraulic press
Product Description
This is a multi-function of small and medium-sized hydraulic press, suitable for shaft parts, profile correction and sleeve parts being connected. At the same time also can finish the plate bending parts, stamping, such as tensile set of form, the simple components of the process, can also be used to suppress powder, plastic products is not very strict. This series product is suitable for machine tools, internal combustion engines, textile machinery, shaft, bearing, washing machine, automobile motor, air conditioner, electric appliance, military industrial enterprises, foreign-funded enterprises assembly line and other industries use.
Specification
Unit
63T
63T-k
63T-Z
Nominal force
KN
630
630
630
Ejecting force
KN
200
200
200
Max. pressure of liquid
MPa
25
25
25
Stroke of slider
mm
400
400
400
Max. opening height
mm
700
700
700
Working table size
mm*mm
520X520
520X520
520X520
Ejecting stroke
mm
200
200
200
Speed of slider
Idle speed
mm/s
54
80
150
Working speed
mm/s
15-22
15-22
15-22
Return speed
mm/s
46
80
80
Motor power
KW
5.5
5.5
5.5

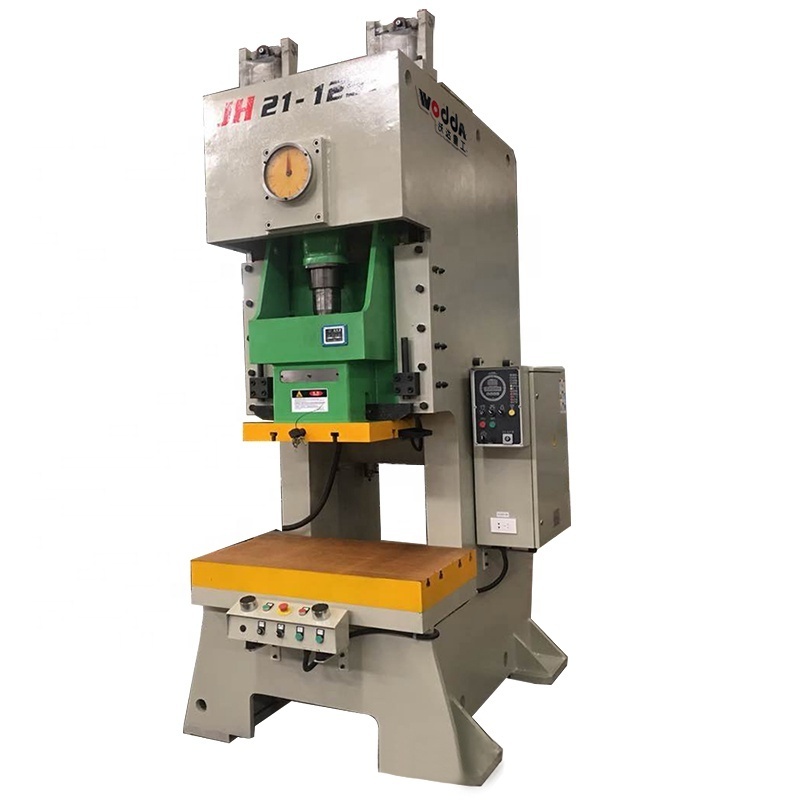

Product pictures
Single arm hydraulic press, the fuselage is C type single arm type structure, using submerged arc welding welding, after welding by vibration processing, to ensure the deformation degree of the fuselage. The hydraulic system inside the fuselage, nice appearance, easy to operate.
Processing site
1. Hydraulic power part, manual and electric
2. Mechanical control part;
3. Working cylinder part;
4. Hydraulic power part;
By hydraulic oil pump. The motor is connected to the plunger pump with an elastic coupling
5. Mechanical control part;
It is controlled by distribution box and combination button switch
6. Tubing part: connected by high pressure seamless steel tube
Company Introduction

Shandong Woda Heavy Industry Machine Tool Co., Ltd.is located in Tengzhou Economic Development Zone, Shandong Province .The company has long been committed to the development of forging machinery and CNC machine tools.
The company is mainly engaged in the development,design,manufacture and technical service of four-column hydraulic press,single-column hydraulic press, gantryhydraulic press,hydraulic stretcher hydraulic cylinder,complete hydraulic system and hydraulicprerss,hydraulic electric controlproduction line .Products are widely used in steel,metallurgy ,light industrial machinery machinery ,chemical machenery ,auto parts ,plastic products and other industries.
Our hydraulic presses are all in accordance with export standards, and we have obtained relevant export certificates and CE certificates International CE certification, Alibaba / China manufacturing network SGS certification.
We go to all kinds of fairs, if you're interested.You can come to China to participate in the exhibition, we will meet here.
Packing&Shipping
1.The four column metal stamping press machine surface with anti-rust treatment,
2.The four column metal stamping press machine inner layer of plastic waterproof packaging,
3.The four column metal stamping press machine outer layer of thick wood or steel frame fixed,And then use a synthetic board
package.
Combined container transport, or separate container transport.
FAQ

Q:How about your machine quality?We are worry about the quality.

A:Woda is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or mor strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.

Q:Why Choose your company?

A:We can provide customized services according to customer requirements. We also have professional R &D team and fast response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly solve any problem you may have in the use.

Q:How to select your machine?

A: you can tell me your specifications ,we can choose the best model for you . we also have some regular model for you to choose.You can also provide the drawings, size , photos of the products, we can design the suitable machine for you according to your requirements. After the machine is finished, you can also provide samples and we will test it for you.
