Quick Details
-
Voltage:
-
380 V
-
Power:
-
16KW
-
Dimension(L*W*H):
-
12.5*2.1*2m
-
Weight:
-
9 Ton
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
AUTOMATIC:
-
YES
Quick Details
-
Production Capacity:
-
45 days
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
NANJIANG
-
Voltage:
-
380 V
-
Power:
-
16KW
-
Dimension(L*W*H):
-
12.5*2.1*2m
-
Weight:
-
9 Ton
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
AUTOMATIC:
-
YES

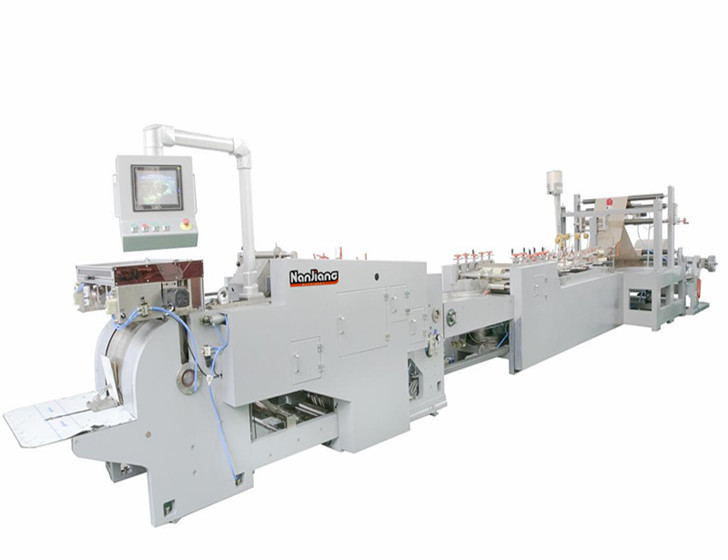

HD- 33 0 Semi Automatic Roll Fed Square Bottom Paper Bag Making Machine
Performance And Characteristics:
HD-330 High-speed Roll Fed Paper Bag Machine is the new generation of high-speed square bottom paper bag machine, it has high speed and high production efficiency, the advantages of a large adjustment range, and with international advanced technology, the material is paper or printed paper by the automatic hydraulic roll loading , bag side glue, form as tube, cut off, bottom crease, bottom glue, bags bottom forming, the finished bags. Central computer control system, human interface touch screen PLC, servo motor controlled by the length of paper bags, produce a variety of dimension of bags. One minute could produce maximum 190 bags which reducing a lot of labor cost, which is your ideal partner in business.
Main Technical Parameter
|
Speed (bag/min.) |
80-190 |
|
Total Power (kw) |
16 |
|
Machine Weight (Ton) |
10 |
|
Machine Dimension (L*W*H) |
12500*2100*2000mm |
|
Paper Roll Width (mm) |
410-990 |
|
Maximum Paper Roll Width (mm) |
1500 |
|
Paper Gram Weight (gsm) |
70-150 |
|
Bag tube length (mm) |
280-600 |
|
Bag Width (mm) |
120-330 |
|
Bag Bottom Width (mm) |
70-150 |
Services Terms:
A. Installation and training are done by our technician(s) at buyer’s factory.
Buyer should send an invitation letter for visa application.
The return flight tickets, accommodation & traffic expenses and service fees at USD100/day/person shall be borne by the buyer.
B. Seller provides 2 years Guarantee period, all spare parts free of charge in one year time.
C. After sale services and component replacement
During the period of quality guarantee, we supply the spare part in free for replacement.
D. Packaging
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
E. Delivery time
Within 90 days after receive 30% advance payment.
F. Payment terms
30% by T/T as advanced payment, 70% by T/T or irrevocable L/C at sight before shipment(After inspection).
