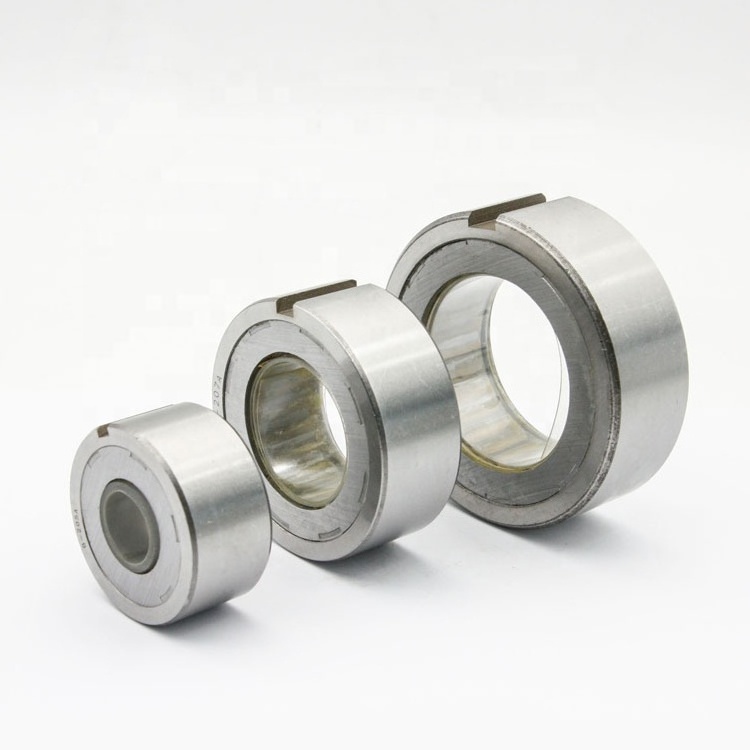

ULK customization high quality one way clutch and cam clutch bearing B 205 B206
ULK customization high quality one way clutch and cam clutch bearing B 205 B206
ULK customization high quality one way clutch and cam clutch bearing B 205 B206
ULK customization high quality one way clutch and cam clutch bearing B 205 B206
ULK customization high quality one way clutch and cam clutch bearing B 205 B206
ULK customization high quality one way clutch and cam clutch bearing B 205 B206
ULK customization high quality one way clutch and cam clutch bearing B 205 B206
ULK customization high quality one way clutch and cam clutch bearing B 205 B206

ULK customization high quality one way clutch and cam clutch bearing B 205 B206

FOB Reference Price: Get Latest Price
≥100 Pieces
US $5
≥1000 Pieces
US $4.6
≥5000 Pieces
US $4.4
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Material:
Chrome Steel GCR15
Model:
B 203~ B 214
Application:
Automobile
Structure:
roller type
CERTIFICATE:
ISO9001:2015
Package:
Customizable
OEM:
Accept
Sample:
Avaliable
Delivery Time:
According to quantity

Quick Details

Place of Origin:
Shaanxi
Warranty:
12 Months
Product name:
one way clutch and cam clutch bearing B 205 B206
Material:
Chrome Steel GCR15
Model:
B 203~ B 214
Application:
Automobile
Structure:
roller type
CERTIFICATE:
ISO9001:2015
Package:
Customizable
OEM:
Accept
Sample:
Avaliable
Delivery Time:
According to quantity
Product Description
Product Description
Product Name
one way clutch bearing B 205 B206
Material
Chrome Steel
Size
Standard sizes
Color
Industrial Nature
Model Number
B 203~ B 214
Service
OEM custom service
Application
Machinery
Shipping Info
By sea, by air, express and so on
Cetification
ISO9001:2008
Sample
Available
Model
Tolerance of housing bore (mm)
B 203, B204
+0 to +0.025
B 205, B206, B 207, B208
+0 to +0.030
B 210, B211, B 212, B213
+0 to +0.035
B 214
+0 to +0.040
ONE WAY CLUTCH Installation and Usage 1.200 Series Cam Clutches are shaft mounted, so the shaft on which the clutch is mounted must be hardened to RC56-60 and 1.5mm case depth after grinding. Grind to 1.5 S (16micro-inch) finish. The taper of this shaft should not exceed 0.01 mm per 50mm. 2. For installation of the clutch, mount the clutch with bearings at both sides or on one side in order to obtain concentricity between the shaft and the clutch outer race and to take up radial or thrust loads which may work on the outer race or the shaft. See the Installation example. 3. The clutch should be mounted on the shaft. See the installation example. 4. The clutches have the same outside diameters as the bearings shown in the table above. Bore tolerance of the housing in which the clutch is assembled should be within the range shown in the table below. 5. For indesing, oil lubrication in recommended. 6. Concentricity of the housing bore and shaft should be within 0.05mm.
7. Plate key.

Products Show
Product Paramenters
PS: Please contact us if didn't find the bearing number you need~
Our Company

Factory

Workshop


Workshop


Test machine


Packing & Delivery

Packing Details : Box+carton+pallet
Delivery Details : 5-30 days according order quantity.
Generally it is 5-7 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock.

Our Service
FAQ


1. How to deal with defects?

Before your shipment ,we will inspect carefully and make sure the product is perfect.

And we will provide t wo year warranty so please kindly to purchase.

2. Can you offer OEM &ODM?

Our company accept OEM&ODM, if your need it, please inform us of your specific requirements.

3. What is the MOQ of your product?

MOQ=500PCS

Small quantity negotiable

4. What's your mode of transportation/shipping?

By DHL, FedEx, UPS, TNT ,EMS EXPRESS ,By sea, By air etc.

Of course, you can also specify the mode of transportation, then tell us your specific requirements.

5. Payment Terms

T/T, L/C, Western Union, Paypal . If you need to pay by other ways, please negotiate with us.

6. Delivery time

7-30days after we receive your prepayment or L/C

7. I don't trust your products quality, can you provide samples?

Yes, we can offer you free samples, but you need to pay the freight.after your first order,the sample freight fee will refund to you.

8. Are you a factory or a trade company?

We are both factory and trade company, welcome to visit our factory at any time.


We will offer what you want, solve the problems what you have, just don't hesitate to contact us!
