Quick Details
-
Model Number:
-
HPD-L-4112
-
Product Name:
-
Gas Cooker Top Plate parts mould
-
Material:
-
Stainless steel 304, 430
-
Mold material:
-
SKD11
-
Cavity:
-
Single Cavities
-
Design software:
-
UG PROE CAD
-
Mould life:
-
1 millionshots
-
Certification:
-
ISO9001:2008
Quick Details
-
Shaping Mode:
-
Punching Mold
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hiparter
-
Model Number:
-
HPD-L-4112
-
Product Name:
-
Gas Cooker Top Plate parts mould
-
Material:
-
Stainless steel 304, 430
-
Mold material:
-
SKD11
-
Cavity:
-
Single Cavities
-
Design software:
-
UG PROE CAD
-
Mould life:
-
1 millionshots
-
Certification:
-
ISO9001:2008
55*60, 60*60, 60*90 Gas Cooker Top Plate Stamping Die/ Stamping Tool
1. 13 years experiences in manufacturing gas cooker top plate stamping dies.
2. Complete die design from prototype to 2D,3D drawings, mold manufacturing and final trial out.
3. 23 personals Design engineers, 10 personals q uality engineer. Design by UG, PROE.
4. Top plate with 4 sides bending or drawings.
5. Indepedent quality inspection department, with CMM, Projector, Depth Gauge, and other measuring equipments.
6. Moulds exported to EGYPT, NEW ZEALAND, THAILAND, VIETNAM, MEXICO, TURKEY etc.
5 Burners Gas Cooker Stamping Dies, 60*90

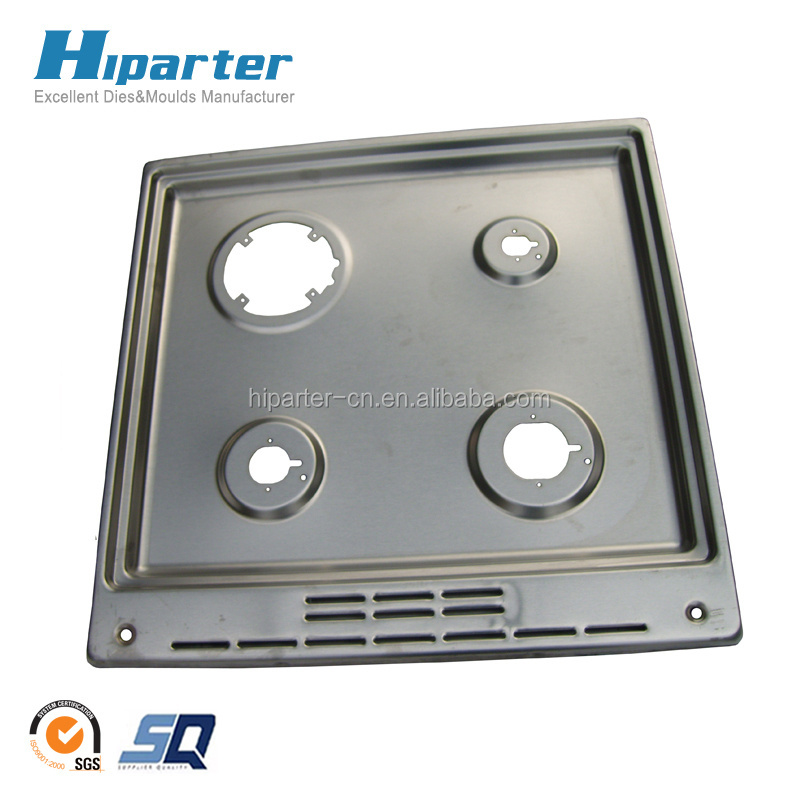

4 Burners Gas Cooker Stamping Dies, 60*60, 60*55, 55*50
3 Burners Gas Cooker Top Plate Stamping Die
| Product Name | Gas Cooker Top Plate Stamping Die/ Stamping Molds |
| Product Description | gas cooker top plate/ top panel, working plate |
| Capabilities Applied/Processes | Tool Design and Manufacturing, Testing, Batch production |
| Press for Mould trial | 800 ton Press |
| Part Dimensions |
Max Length: 3500mm
Max Width: 1500mm Max Height: 550 mm |
| Tightest Tolerances | ±.01mm |
| Die material | SKD11, SKH-9,D2, 1.2379 |
| Material Finish | Tempering, Hardening, TD, PVC, Ti plating, |
| In Process Testing/Inspection Performed | CMM, Vision Projector, Callipers |
| Mould spare parts | PUNCH, MISUMI, FIBRO, DME, KALLER, DANLY, FESTO |
| Industry for Use | Washing machine, air conditioner, freezer, microwave oven, gas cooker, LED Tv etc. |
| Standards Met | 2D(DXF,DWG),3D Drawing(STP, IGS) |
1- Tool designing: with 23 senior engineers, we can offer mould analysis and drawing designing by ourselves
Technical drawings in hard and electronic format.
2- Advanced tool machining: 80 sets of equipment with CNC, WEDM-LS, Engraving, EDM, Milling machine, Grinding machine, Sparks, we can offer the precision refrige stamping tool fabrication
3- Tool trial: we can make tool trial in our own stamping workshop, with machines from 80t -1300t.
4- Moulds shipping & exporting: our factory has the right of independent importing & exporting. We can deliver the refrige stamping tools to our customers’ office, any place in the world.
Our moulds are exported over 30 countries: Germany, Japan, USA, Argentina, Ecuador, South Africa, Italy, England and so on.
