Quick Details
-
Warranty:
-
2 years
-
Brand Name:
-
OEM or AHONY
-
Model Number:
-
eGo S60w
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
540x625x3mm
-
Product name:
-
60w semi flexible solar panel for golf cart yach
-
style:
-
thin film ETFE flexible
-
colour:
-
white
-
surface:
-
etfe
-
application:
-
camping rv marine boat yacht balcony
-
Certificate:
-
CE ROHS ISO SGSIEC
Quick Details
-
Cell size:
-
125mmx125mm
-
Type:
-
PERC
-
Panel Efficiency:
-
24.4%
-
Warranty:
-
2 years
-
Brand Name:
-
OEM or AHONY
-
Model Number:
-
eGo S60w
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
540x625x3mm
-
Product name:
-
60w semi flexible solar panel for golf cart yach
-
style:
-
thin film ETFE flexible
-
colour:
-
white
-
surface:
-
etfe
-
application:
-
camping rv marine boat yacht balcony
-
Certificate:
-
CE ROHS ISO SGSIEC

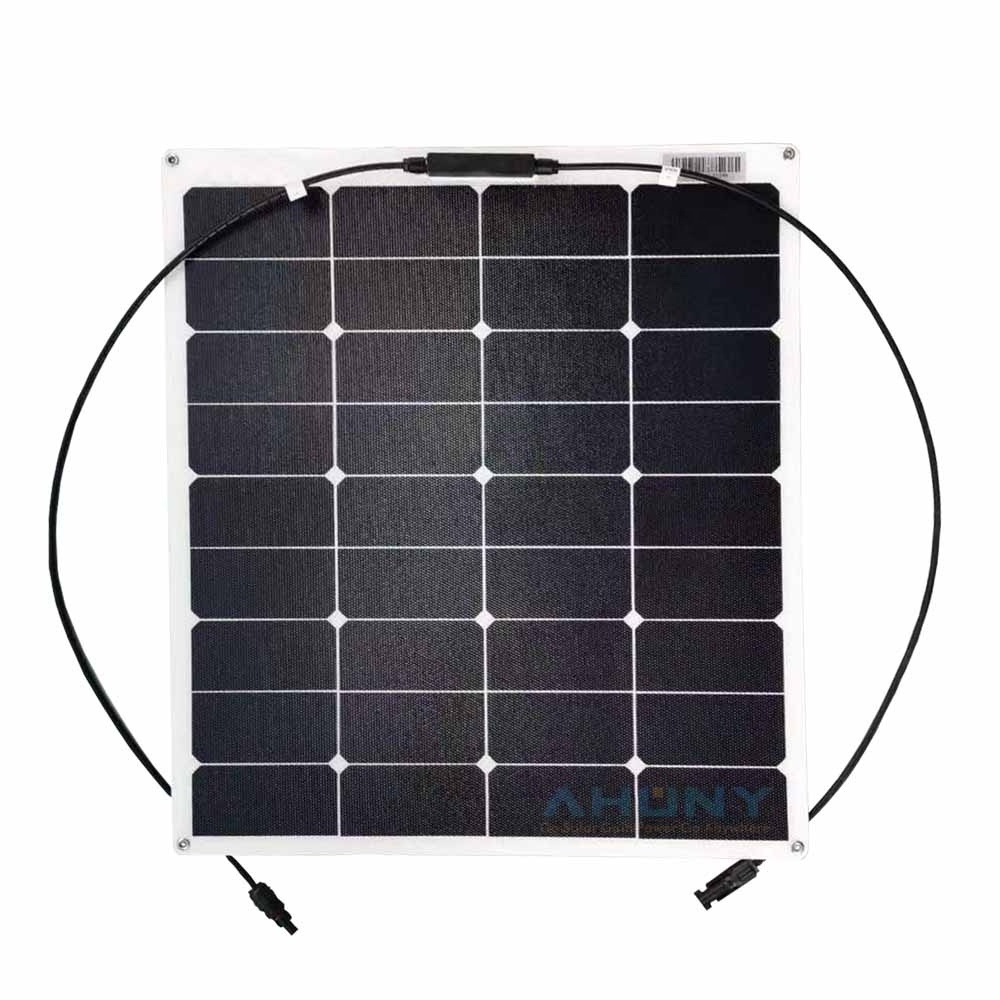

Flexible solar panel
| Model No. | eGo S60w |
| Description | Good supplier factory direct 60w semi flexible solar panel thin film bendable back contact sunpower cell for golf cart yach |
| Product Name | Semi-Flexible Solar Panel |
| Maximum Power[Wp] | 60 |
| Solar Cell | SunPower Maxeon Gen III Back Contact Cell |
| Cell Array[Pcs] | 4*9 |
| Cell Efficiency | 22.60% |
| Size[mm] | 540x625x3 |
| Max Power Voltage Vmp[V] | 20.90 |
| Max Power Current Imp[A] | 2.87 |
| Open Circuit Voltage Voc[V] | 24.66 |
| Short Circuit Current Isc[A] | 3.10 |
| Net.Weight[kg] | 1.1 |
| Power tolerance[%] | ±5% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 100 V |
| Maximum Reverse Current[V] | 10A |
| Certification | CE ROHS |
| Surface/Backsheet | Japan ETFE/white plastic |
| Maximum bend radius(θ) | 30° |
| Cables and Connectors | Jbox IP65,0.9m cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Other notes | round corner R10,with eyelets |
- ETFE MATERIAL:Different from PET solar panel,the transmitance of ETFE material as high as 95%,better at high temperature resistance,easier to clean
- HIGH EFFICIENCY: Sunpower solar cell,the conversion up to 23.5%,with excellent weak light sensitivity,the internal blocking diode which prevents reverse current drain at night
- GOOD BENDABILITY: The solar panel can be curved to a maximum 30 degree arc,allowing to be mounted on an RV, boat, cabin, tent, car, trucks, trailers or any other irregular surface
- SUPERIOR DURABILITY: This solar panel is made of advanced water resistant material,the junction box is sealed and waterproof,the copper wire is protected by 3-layers plastic film
- EASY INSTALLATION:Only 0.1 in thick and weighs only3.8 lbs,this solar panel is easy to transport,hang,and remove,8 stainless eyelets at the edges for easy installation;can be easily affixed by adhesives,silicon glues,double sticky tape,zip ties or velcro
