Quick Details
-
Size:
-
L12500*W4000*H3000mm
-
Material:
-
galvanized steel/stainless steel
-
Warranty:
-
3 Year
-
Product name:
-
Tunnel Car Wash Machine
-
Model:
-
High Pressure Steam Tunnel Car Washing Machine
-
Water consumption:
-
80-150L/car
-
Electricity consumption:
-
0.6 degree/car
-
Power:
-
25KW
-
Power resource:
-
380V 50HZ 20KVA
-
Air Supply:
-
Pressure 0.75-0.9Mpa
-
Installation Ground Flatness:
-
deviation≤20mm
-
Wash Time:
-
2.5-3min/car
-
Shinewash car wash machine service life:
-
>15 years
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shinewash
-
Model Number:
-
Q9
-
Size:
-
L12500*W4000*H3000mm
-
Material:
-
galvanized steel/stainless steel
-
Warranty:
-
3 Year
-
Product name:
-
Tunnel Car Wash Machine
-
Model:
-
High Pressure Steam Tunnel Car Washing Machine
-
Water consumption:
-
80-150L/car
-
Electricity consumption:
-
0.6 degree/car
-
Power:
-
25KW
-
Power resource:
-
380V 50HZ 20KVA
-
Air Supply:
-
Pressure 0.75-0.9Mpa
-
Installation Ground Flatness:
-
deviation≤20mm
-
Wash Time:
-
2.5-3min/car
-
Shinewash car wash machine service life:
-
>15 years
Shinewash high pressure car washer machine self service car wash equipment set fully automatic tunnel car wash machine price
Product Features:
* Fully automated
* Efficient washing,safe and convenient
* Intelligent and efficient control
* Control it yourself remotely
* Up to complete washing 60 vehicles per hour
* Fully automated
* Efficient washing,safe and convenient
* Intelligent and efficient control
* Control it yourself remotely
* Up to complete washing 60 vehicles per hour
*
With three-in-one maintenance function of foam, water wax and coating
Washing mode：
Firstly:high pressure washing
Secondly:Non-stick sand brush cleaning
Secondly:Non-stick sand brush cleaning
Applicable Vehicles:
Small vehicles such as sedans, SUV etc.

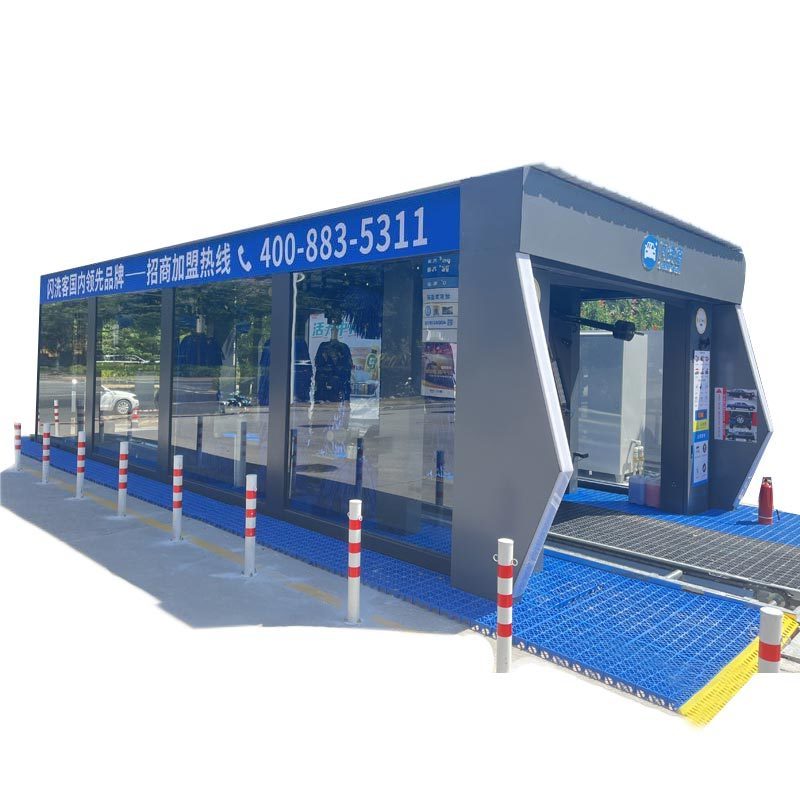

Shinewash car washer high pressure steam cleaning machine fully automatic tunnel car wash machine
Main Accessories Show:
PLC Control Systerm
Fully automatic Mitsubishi PLC computer control
system,faster operation speed,lower failure rate, and can be upgraded remotely.
Frequency Converter
Siemens brand
SITI Moter
SITI brand,Stable performance and less failure.
Photoelectric Sensor
Banner Brand,from
America
Type:S186E/S18SN6R
New Intelligent Air drying Control System
22KW high power Air drying system show
Quality EVA Brush
5 Foam brush(1 vertical lift top brush + 2 small vertical brushes + 2 large vertical brushes), not hurt the car
Product Paramenters
|
Shinewash car washer high pressure steam cleaning machine fully automatic tunnel car wash machine technical data,any other requirements can be customized.
|
|
|
|
|
||||
|
Machine Size (m)
|
L10*W4*H3
|
|
|
|
||||
|
Installation Size (m)
|
L22*W4.5*H3.2
|
|
|
|
||||
|
Washing Size (m)
|
L≤unlimited*W≤2.3H≤2.1
|
|
|
|
||||
|
Shipping Volume
|
15.6 m³
|
|
|
|
||||
|
Shipping Weight
|
5.5 ton
|
|
|
|
||||
|
Moving Speed
|
frequency control
|
|
|
|
||||
|
Power
|
20KW
|
|
|
|
||||
|
Voltage
|
380V 50Hz
|
|
|
|
||||
|
Compressed Air Supply
|
0.75~0.9Mpa air flow rate≥0.6m^3/min
|
|
|
|
||||
|
Water Supply
|
DN25mm water flow rate≥200L/min
|
|
|
|
||||
|
Water Consumption
|
80-150L/car
|
|
|
|
||||
|
Electricity Consumption
|
0.6KWH/Car
|
|
|
|
||||
|
Shampoo Consumption
|
7ML/Car
|
|
|
|
||||
|
Water Wax Consumption
|
12ML/Car
|
|
|
|
||||
|
Wash Cost
|
Approx. 1.5 yuan/car
|
|
|
|
||||
|
Top Brush
|
1
|
|
|
|
||||
|
Big Vertical Brush
|
4
|
|
|
|
||||
|
Skirt Brush
|
2
|
|
|
|
||||
