- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
BT40-ER32-70
-
Product name:
-

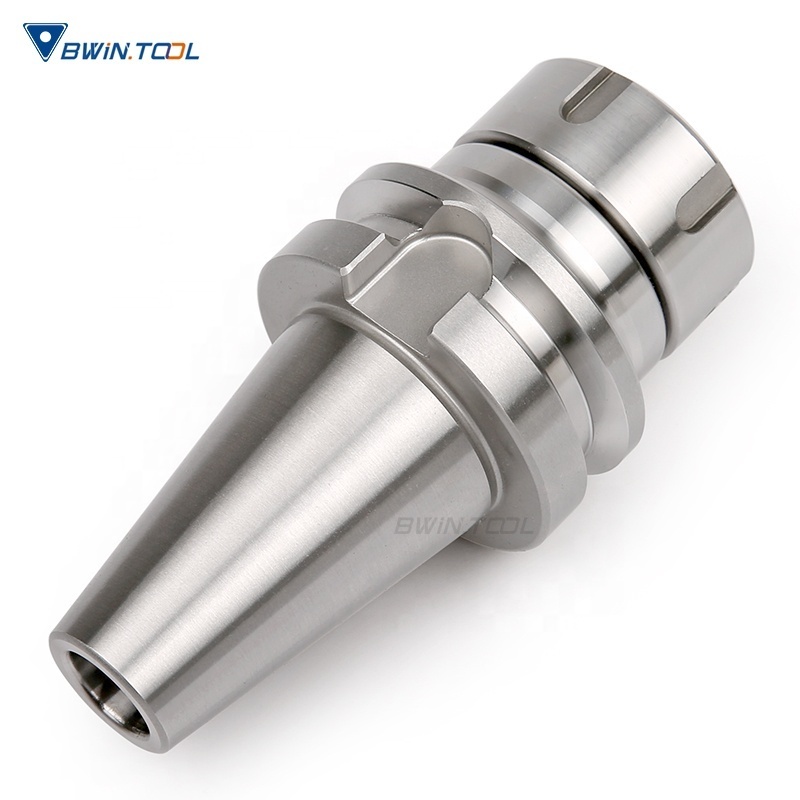

BT40 Tool Holder
-
Size:
-
BT40-ER32-70
-
Material:
-
20CrMnTi
-
Hardness:
-
HRC48-52
-
Clamping range:
-
1-20
-
Precision:
-
0.005mm
-
Inspection:
-
100% inspection
-
Customized:
-
available
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Applicable Industries:
-
CNC Machining Center
-
Brand Name:
-
Bwin
-
Model Number:
-
BT40-ER32-70
-
Product name:
-
BT40 Tool Holder
-
Size:
-
BT40-ER32-70
-
Material:
-
20CrMnTi
-
Hardness:
-
HRC48-52
-
Clamping range:
-
1-20
-
Precision:
-
0.005mm
-
Inspection:
-
100% inspection
-
Customized:
-
available
1.Made of special elastic steel:40Cr or 20CrMnTi
2.Hardness:HRC48-55
3.Mode: ISO milling chuck arbors
4.Accuracy: Higher precision also can be made by your demand.
5.Packaging:Paper case or plastic case
|
Product Name
|
BT40 High quality ER chuck BT40-ER32-70 Toolholder
|
|
Material
|
20CrMnTi
|
|
Size
|
BT40-ER32-70
|
|
Standard
|
MAS 403
|
|
Hardness
|
HRC48-52
|
|
Clamping Range
|
1-20
|
|
Use
|
Clamping tools with straight shank in Collets of DIN6499
|
|
Model
|
L
|
L1
|
d1
|
Suitable nut
|
Suitable Wrench
|
Suitable Collet
|
Clamping range
|
|
BT30-ER16-70L
|
70
|
40
|
28
|
ER16A
|
ER16A
|
ER16
|
1-10
|
|
BT30-ER16-100L
|
100
|
80
|
28
|
ER16A
|
ER16A
|
ER16
|
1-10
|
|
BT30-ER20-70L
|
70
|
40
|
34
|
ER20A
|
ER20A
|
ER20
|
1-13
|
|
BT30-ER20-100L
|
100
|
80
|
34
|
ER20A
|
ER20A
|
ER20
|
1-13
|
|
BT30-ER25-70L
|
70
|
40
|
41.5
|
ER25UM
|
ER25UM
|
ER25
|
1-16
|
|
BT30-ER25-100L
|
100
|
80
|
41.5
|
ER25UM
|
ER25UM
|
ER25
|
1-16
|
|
BT30-ER32-70L
|
70
|
40
|
49.5
|
ER32UM
|
ER32UM
|
ER32
|
1-20
|
|
BT30-ER32-100L
|
100
|
80
|
49.5
|
ER32UM
|
ER32UM
|
ER32
|
1-20
|
|
BT40-ER16-70L
|
70
|
45
|
28
|
ER16A
|
ER16A
|
ER16
|
1-10
|
|
BT40-ER16-100L
|
100
|
75
|
28
|
ER16A
|
ER16A
|
ER16
|
1-10
|
|
BT40-ER20-70L
|
70
|
45
|
34
|
ER20A
|
ER20A
|
ER20
|
1-13
|
|
BT40-ER20-100L
|
100
|
75
|
34
|
ER20A
|
ER20A
|
ER20
|
1-13
|
|
BT40-ER25-70L
|
70
|
45
|
41.5
|
ER25UM
|
ER25UM
|
ER25
|
1-16
|
|
BT40-ER25-100L
|
100
|
75
|
41.5
|
ER25UM
|
ER25UM
|
ER25
|
1-16
|
|
BT40-ER32-70L
|
70
|
45
|
49.5
|
ER32UM
|
ER32UM
|
ER32
|
1-20
|
|
BT40-ER32-100L
|
100
|
75
|
49.5
|
ER32UM
|
ER32UM
|
ER32
|
1-20
|
|
BT40-ER40-80L
|
80
|
45
|
63
|
ER40UM
|
ER40UM
|
ER40
|
1-25
|
|
BT40-ER40-100L
|
100
|
75
|
63
|
ER40UM
|
ER40UM
|
ER40
|
1-25
|
