Quick Details
-
Item:
-
DC 12v 24v Ceiling Mounted 360 Degree PIR Motion Sensor
-
Working Voltage:
-
DC 12v to 24v
-
Working current:
-
40mA
-
Detection Angle:
-
360 Degree 12m*12m
-
Alarm Output:
-
NC/NO ; 2A/24V
-
Install high:
-
2.2m-4m
-
Pet Immune:
-
10kg
-
Installation:
-
Ceiling Mounted
-
Alarm time:
-
2s/30s/ 1 min/ 5 min
-
Size:
-
125mm*50mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SICUREZZA
-
Model Number:
-
HS-208P
-
Item:
-
DC 12v 24v Ceiling Mounted 360 Degree PIR Motion Sensor
-
Working Voltage:
-
DC 12v to 24v
-
Working current:
-
40mA
-
Detection Angle:
-
360 Degree 12m*12m
-
Alarm Output:
-
NC/NO ; 2A/24V
-
Install high:
-
2.2m-4m
-
Pet Immune:
-
10kg
-
Installation:
-
Ceiling Mounted
-
Alarm time:
-
2s/30s/ 1 min/ 5 min
-
Size:
-
125mm*50mm
Product Paramenters
DC 12v 24v Ceiling Mounted 360 Degree PIR Motion Sensor For Security Alarm System
- Two levels of detection sensitivity can be selected
- Anti-pet up to 15 kg
-Adopt fully sealed relay
-Unique full temperature compensation technology
-Anti EMI
-Anti white light interference
-31 beams Fresnel lens with down-view window
-Fully sealed optical Accessories
-Detection angle:360 degree
-Detection distance:12m*12m
- Anti-pet up to 15 kg
-Adopt fully sealed relay
-Unique full temperature compensation technology
-Anti EMI
-Anti white light interference
-31 beams Fresnel lens with down-view window
-Fully sealed optical Accessories
-Detection angle:360 degree
-Detection distance:12m*12m
|
Specification for 360 Degree PIR Motion Sensor
|
|
|
|
Operation Voltage
|
DC 12v to 24v
|
|
|
Operation Current
|
15mA stand by
|
|
|
Detection range
|
12m*12m 360 degree
|
|
|
Installation Height
|
2.2m-4m
|
|
|
Alarm time
|
2s/30s/1min/5min
|
|
|
Detect speed
|
0.3m/s to 1.5m/s
|
|
|
Installation
|
Ceiling mounted
|
|
|
Anti RFI/EMI
|
0.1-500MHz/3V/m
|
|
|
Anti-white light
|
>10000LUX
|
|
|
Alarm Output
|
NC/NO Output; 2A/24V
|
|
|
Tamper Output
|
NC; 200mA/125V
|
|
|
Pet immune
|
15kg
|
|
|
Operation Temperature
|
-10℃/+55℃
|
|
|
Sensitivity
|
High and low two levels optional
|
|
|
Humidity(RH)
|
95%
|
|
|
Size
|
125mm*50mm
|
|
Packing & Delivery
|
Packing Details for 360 Degree PIR Motion Sensor
|
|
|
|
PACKING
|
Neutral color box or customer's packing
|
|
|
PCS/CARTON
|
100PCS
|
|
|
GW/CARTON
|
19.0KG
|
|
|
CARTON SIZE
|
54*45*34CM
|
|

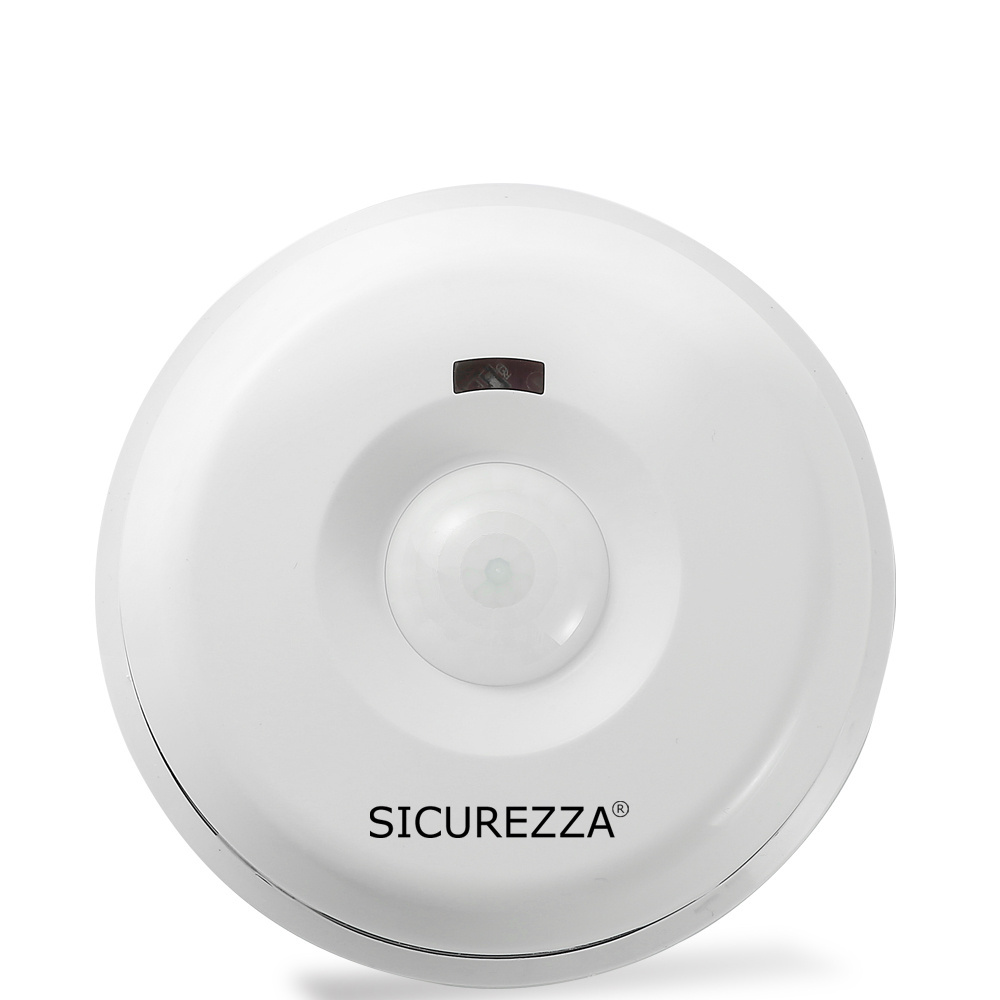

Products Description
Indoor 360 Degree C
eiling
PIR Motion Sensor
DC 12v-24v Powered / Detection Range 12m / Relay Output NC NO
Ultra-wide Detection, Excellent Presentation
360°wide angle makes the detection distance reach to 12 meters.
Intelligent Recognition and Pet-proof
Adopt Fresnel optical lens and advanced multi-grades digital signal processing detection technology
to prevent false alarms caused by small pets under 15KG
