Quick Details
-
Brand Name:
-
SUHUA Steel Ball
-
Model Number:
-
AISI 304
-
Size Range:
-
1mm-180mm stainless steel ball
-
Hardness:
-
25-39HRC stainless steel ball
-
Grade:
-
G10-1000 stainless steel ball
-
Surface:
-
High Polished stainless steel ball
-
Application:
-
Valves, finger pumps,
-
Certifications:
-
ISO/TS16949
-
Package:
-
Plastic Bag + Cardboard Box + Wooden
-
Characteristic:
-
Good resistance to corrosion
-
Magnetic:
-
Much little
Quick Details
-
Applicable Industries:
-
Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Construction works
-
Material:
-
Stainless steel
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUHUA Steel Ball
-
Model Number:
-
AISI 304
-
Size Range:
-
1mm-180mm stainless steel ball
-
Hardness:
-
25-39HRC stainless steel ball
-
Grade:
-
G10-1000 stainless steel ball
-
Surface:
-
High Polished stainless steel ball
-
Application:
-
Valves, finger pumps,
-
Certifications:
-
ISO/TS16949
-
Package:
-
Plastic Bag + Cardboard Box + Wooden
-
Characteristic:
-
Good resistance to corrosion
-
Magnetic:
-
Much little
Changzhou Huari Steel Ball Co., Ltd is an ISO9001: 2015 and IATF16949: 2016 certified professional manufacturer of steel balls with experience of more than 30 years. We owns more than 500 sets advanced production equipment and more than 100 sets of testing devices to ensure the quality of the steel balls.
Custom service to meet our customers' needs are our core strength.
Sizes & Material
The factory produces ball sizes from 0.5mm to 250mm .
Stainless steel balls: AISI304, 304L, 316, 316L(G100-G1000),AISI420, 420C, 440, 440C(G10-G1000) .

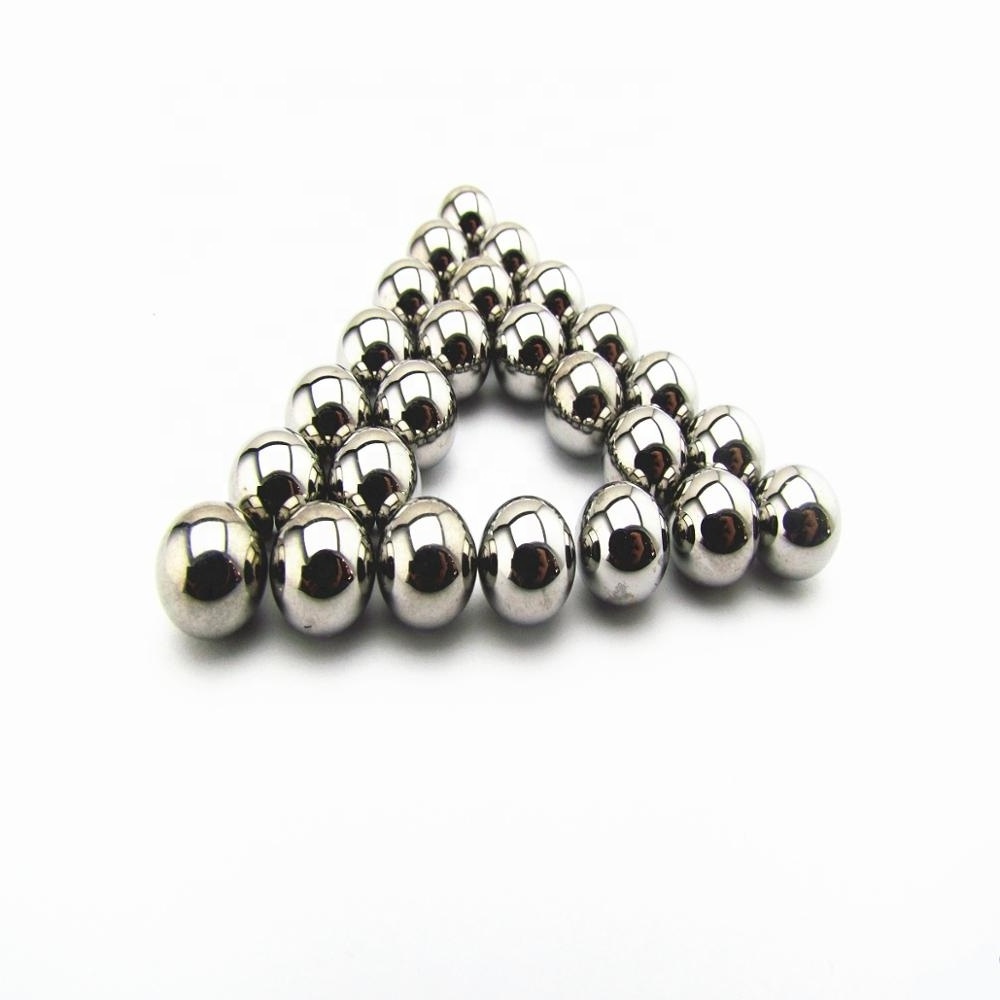

AISI304/304L G40 5mm Stainless Steel Ball
| China | Japan | U.S. | Germany | Hardness |
| OCr18Ni9 | SUS304 | AISI304 | 1.4301 | HRC 25-39 |
| 00Cr19Ni10 | SUS304L | AISI304L | 1.4307 | HRC 25-39 |
| 0Cr17Ni12Mo2 | SUS316 | AISI316 | 1.4401 | HRC 25-39 |
| 0Cr19Ni12Mo2 | SUS316L | AISI316L | 1.4404 | HRC 25-39 |
| 3Cr13 | 420J2 | AISI420 | 1.4028 | HRC 48-58 |
| 4Cr13 | - | AISI420C | 1.3541, 1.4034 | HRC52-56 |
| 9Cr18 | - | AISI440 | HRC57-61 | |
| 9Cr18Mo | SUS440C | AISI440C | 1.4125 | HRC58-64 |
| Material | CHEMICAL COMPOSITION % | ||||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | Ti | |
| AISI304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0-11.0 | 18-20 | ||
| AISI304L | ≤0.03 | ≤1.0 | ≤2.00 | ≤0.045 | ≤0.03 | 9.0-12.0 | 18-20 | ||
| AISI316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 10.0-14 | 16.0-18.5 | 2.0-3.0 | |
| AISI316L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0-14 | 16.0-18 | 2.0-3.0 | |
| AISI420(3Cr13) | 0.26-0.35 | ≤1.0 | ≤1.0 | ≤0.04 | ≤0.035 | ≤≤0.60% | 12.0-14.0 | ||
| AISI420C(4Cr13) | 0.36-0.45 | ≤0.60 | ≤0.8 | ≤0.035 | ≤0.03 | ≤0.6 | 12.0-14.0 | ||
| AISI440 (9Cr18) | 0.9-1 | ≤0.8 | ≤0.8 | ≤0.035 | ≤0.80 | ≤0.60 | 17.0-19.0 | ≤0.75 | |
| AISI440C (9Cr18Mo) | 0.9-1 | ≤0.8 | ≤0.8 | ≤0.035 | ≤0.03 | ≤0.60 | 16.0-18.0 | ≤0.75 | |
| Grade: G10 to G1000 | |||||
| Grade | ball diameter | spherical | surface | lot diameter | nomainal ball |
| variation | deviation | roughness | variation | deviation tolerance | |
| Vdws | Sph | Ra | Vdwl | Tdn | |
| not over | |||||
| μm | |||||
| 10 | 0.25 | 0.25 | 0.02 | 0.5 | * |
| 16 | 0.4 | 0.4 | 0.025 | 0.8 | * |
| 20 | 0.5 | 0.5 | 0.032 | 1 | * |
| 24 | 0.6 | 0.6 | 0.04 | 1.2 | * |
| 28 | 0.7 | 0.7 | 0.05 | 1.4 | * |
| 40 | 1 | 1 | 0.06 | 2 | * |
| 60 | 1.5 | 1.5 | 0.08 | 3 | * |
| 100 | 2.5 | 2.5 | 0.1 | 5 | ±12.5 |
| 200 | 5 | 5 | 0.15 | 10 | ±25 |
| 500 | 12.5 | 12.5 | * | 25 | ±50 |
| 1000 | 25 | 25 | * | 50 | ±125 |
Application of stainless steel balls.
AISI304, 304L, 316, 316L: strong anti-rust performance, can be in direct contact with neutral liquids. Special bearings, water pumps, valves, aerosols, dispensers, food machinery, medical, cosmetics and other fields.
AISI420, 420C, 440, 440C: precision bearings, auto parts, bicycles, mixers, slide rails, conveyor belts, skateboards, casters, valves, etc.
