Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TAVOL
-
Warranty:
-
13Month
-
Weight (KG):
-
8000 kg
-
Product Name:
-
China Profesional Gantry Crane Manufacturer
-
Overseas Installation:
-
Available
-
Quick Wear Parts:
-
Free
-
Accurate CAD Drawingg:
-
Available
-
Control Method:
-
Cabin or Remote
-
Working duty:
-
A5~A8
-
Main electrical parts:
-
Siemens
-
Industry working voltage:
-
According to your demand to design
-
Painting colour:
-
According to your demand
-
Customised Design:
-
Available
Quick Details
-
Max. Lifting Height:
-
40M
-
Max. Lifting Load:
-
20t
-
Span:
-
from 3-60m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TAVOL
-
Warranty:
-
13Month
-
Weight (KG):
-
8000 kg
-
Product Name:
-
China Profesional Gantry Crane Manufacturer
-
Overseas Installation:
-
Available
-
Quick Wear Parts:
-
Free
-
Accurate CAD Drawingg:
-
Available
-
Control Method:
-
Cabin or Remote
-
Working duty:
-
A5~A8
-
Main electrical parts:
-
Siemens
-
Industry working voltage:
-
According to your demand to design
-
Painting colour:
-
According to your demand
-
Customised Design:
-
Available
Product Overview
Electric Single Girder Overhead Crane Price 10 ton
Overhead crane 10 ton consists of one girder beam supported on each side by an end truck. The wire rope electric hoist is underhung--meaning they run on the bottom flange of the single girder. And this kind of overhead crane is suitable for the workshop where there are column beams and runway beams.
These overhead crane 10 ton are for our Indonesia client. And they deal with steel coils, coated coils and steel bar by these overhead crane 10 ton. Now we are the important and closed business partner for each other.
FEATURES AT A GLANCE
Project Story
We have worked with this Indonesia client since from 2014 and till now they have already purchased 15 sets of overhead crane 10 ton from us. Though almost 6 years past, these overhead crane are working very well in their workshop.
Our client prefers low headroom electric hoist because its compact design compared with the normal CD MD model wire rope electric hoist. We gave lifting, cross travelling and long travelling frequency inverter control to get fast and slow speed to meet customer's different requirements.
In the year of 2017, when we went to Indonesia to attend fair, we visited our client. They spoke highly of our overhead crane and promised that they will buy more cranes from us. Here we shared the pictures when we visited them.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
|
||
|
1
|
Lift capacity
|
10T
|
|
|
||
|
2
|
Span
|
10M
|
|
|
||
|
3
|
Lift height
|
6M
|
|
|
||
|
4
|
Work duty
|
A4
|
|
|
||
|
5
|
Control method
|
Wireless remote
|
|
|
||
|
6
|
Electrical parts
|
Schneider
|
|
|
||
|
7
|
Lift motor
|
13KW, lift speed 0.7~7M/Min
|
|
|
||
|
8
|
Cross travel motor
|
0.8KW X 2, travel speed 2~20M/Min
|
|
|
||
|
9
|
Long travel motor
|
1.5KW X 2, travel speed 2~20M/Min
|
|
|
||
|
10
|
Bus bar with accessories
|
4P X 16MM
2
|
|
|
||
|
11
|
Runway with accessories
|
P24
|
|
|
||
|
12
|
Control voltage
|
AC 36V
|
|
|
||
|
13
|
Power supply
|
380V/50Hz/3P
|
|
|
||
Main Girder
End Truck
Low Headroom Electric Hoist
Control Panel with Frequency Inverter
Bus Bar & Runway
C Steel Trolley for Flat Cable
Company Introduction
Shandong Tavol Machinery Co., Ltd has been specialized in delivering one stop overhead crane solutions to worldwide customers for 30 years. Our high quality products include single girder overhead crane, double girder overhead crane, single girder gantry crane, double girder gantry crane, etc.
Product innovation, quality assurance and customer satisfaction are our long term commitment to all of our partners. All of our products passed ISO9001, CE and PVC.
Office Building
Workshop
Blasting
Engineers
Inside Workshop
Installation Site
Container Packing
Plywood Box Pack
Woven Bag Pack
Container Fixing
Successful Project
Project in Bangladesh
Project in USA
Project in Philippines
FAQ

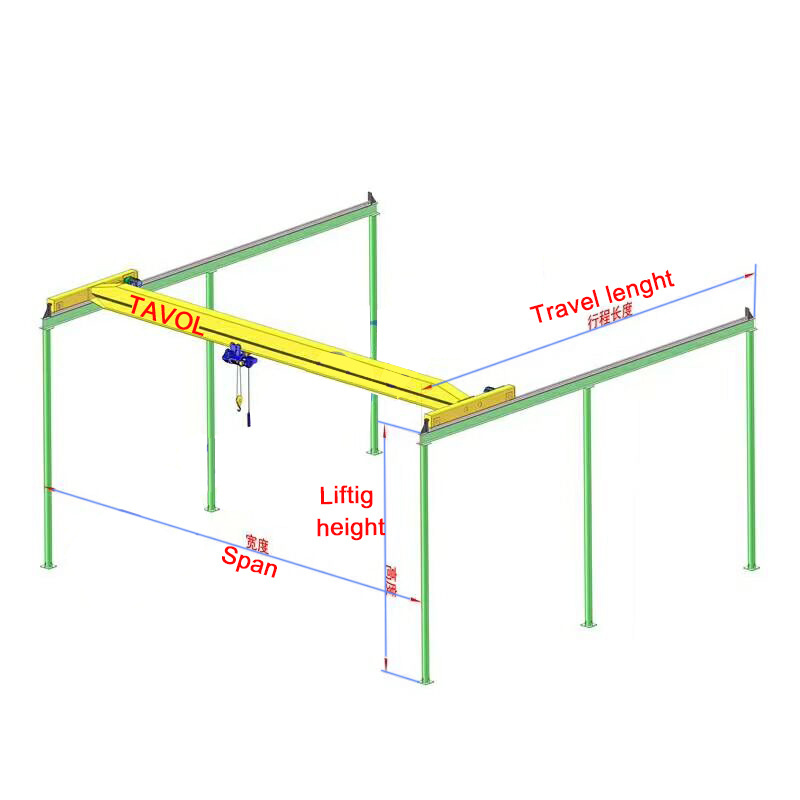

If you want to get a price of our Overhead Crane 10 ton, please help to confirm the details as below:
1. What kind of materials will this overhead crane deal with?
2. Lift capacity? 3 ton, 5 ton, 10 ton or 16 ton?
3. Span? Or your can tell us width of your workshop, then we will design?
4. Lift height? 6 meters, 9 meters or 12 meters?
5. Travel length? Or you can tell us length of your workshop, then we will design?
6. Power supply in your local? Is 380V/50Hz/3P?
7. Nearest sea port? We will quote you a CFR price for your reference.
