Quick Details
-
Grade:
-
1.4301 1.4307 1.4401 1.4404 1.4541 1.4550
-
Surface Finish:
-
2B
-
Invoicing:
-
by actual weight
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
No brand
-
Model Number:
-
Welded
-
Application:
-
Industry
-
Outer Diameter:
-
38.1mm
-
Certification:
-
ISO
Quick Details
-
Type:
-
Welded
-
Steel Grade:
-
301L, S30815, 301, 304N, 310S, S32305, 410, 204C3, 316Ti, 316L, 441, 316, L4, 420J1, 321, 410S, 410L, 436L, 443, LH, L1, S32304, 314, 347, 430, 309S, 304, 439, 204C2, 425M, 409L, 420J2, 436, 445, 304L, 405, 370, S32101, 904L, 444, 301LN, 305, 429, 304J1, 317L
-
Tolerance:
-
±5%
-
Grade:
-
1.4301 1.4307 1.4401 1.4404 1.4541 1.4550
-
Surface Finish:
-
2B
-
Invoicing:
-
by actual weight
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
No brand
-
Model Number:
-
Welded
-
Application:
-
Industry
-
Outer Diameter:
-
38.1mm
-
Certification:
-
ISO

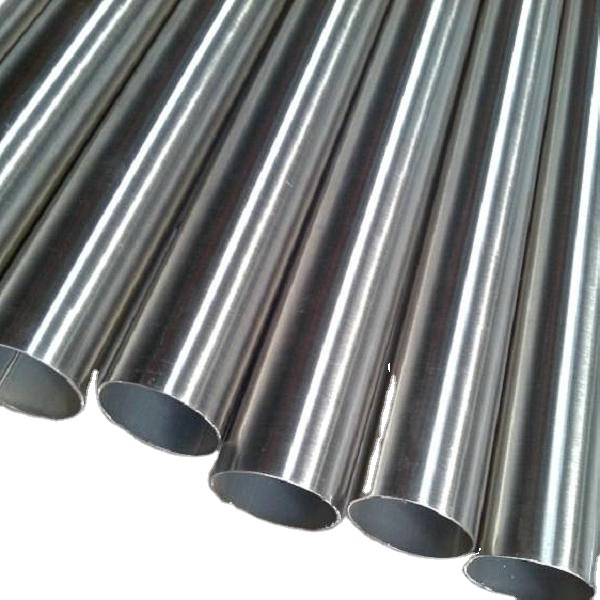

EN10217 1.4301 1.4307 1.4401 1.4404 1.4541 1.4550 Austenitic Stainless Steel Pipe
| Dimension tolerance | ||||
| Standard |
Outside Diameter
mm |
Thickness
mm |
Length
mm |
|
| ASTM A312 | ≤48.26 | +0.40 -0.80 | -12.50% |
+6.4
-0 |
| >48.26~114.30 | +0.80 -0.80 | |||
| >114.30~219.08 | +1.60 -0.80 | |||
| >219.08~457.20 | +2.40 -0.80 | |||
| >457~660 | +3.20 -0.80 | |||
| >660~864 | +4.00 -0.80 | |||
| >864~1219 | +4.48 -0.80 | |||
| JIS G3459 | <30.00 ±0.30 | <2.00 ±0.20 | ||
| ≥30.00 ±1.00% | ≥2.00 ±10% | |||
| GB/T 12771 | <13.00 ±0.20 | ≤4.00 +0.50 |
+20.00
-0 |
|
| 13.00~40.00 ±0.30 | ||||
| ≥40.00 ±0.80% | >4.00 ±10% | |||
| EN10217-7 | D1±1.50% with ±0.75mm(min) | T1±15% with ±0.60mm(min) |
≤6000 +5.00
-0 |
|
| D2±1% with ±0.50mm(min) | T2±12.5% with ±0.40mm(min) | |||
| D3±0.75% with ±0.30mm(min) | T3±10% with ±0.20mm(min) |
6000~12000 +10.00
-0 |
||
| D4±0.50% with ±0.10mm(min) | T4±5% with ±0.10mm(min) | |||
| EN ISO1127 | EN ISO1127 | |||
