- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SAMYON
-
Model Number:
-
MCL-5
-
Product name:
-
Magnetometer
-
Measurement range:
-
-80000nT-+80000nT
-
resolution:
-
1 nT
-
Remeasure error:
-
≤ 10nT
-
Memory:
-
5000 points
-
Work cost:
-
200mA-290mA
-
Temperature factor:
-
0 PPM/℃
-
Work temperature:
-
-10℃~+50℃
-
MOQ:
-
1
-
Packing:
-
Carton
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
SAMYON
-
Model Number:
-
MCL-5
-
Product name:
-
Magnetometer
-
Measurement range:
-
-80000nT-+80000nT
-
resolution:
-
1 nT
-
Remeasure error:
-
≤ 10nT
-
Memory:
-
5000 points
-
Work cost:
-
200mA-290mA
-
Temperature factor:
-
0 PPM/℃
-
Work temperature:
-
-10℃~+50℃
-
MOQ:
-
1
-
Packing:
-
Carton

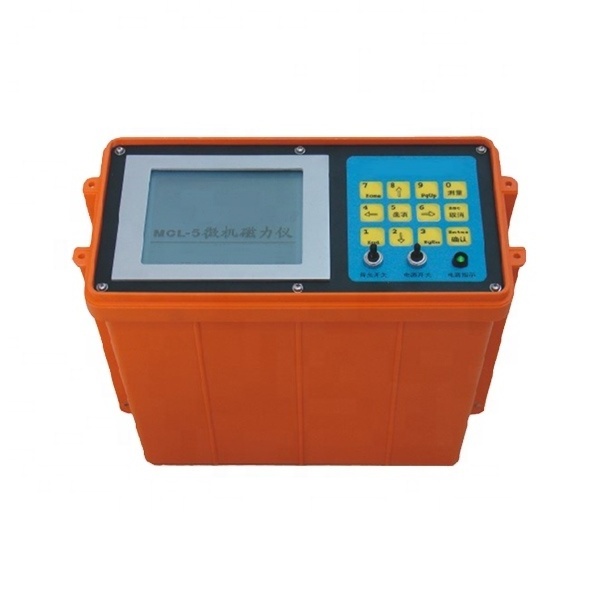

MCL-5 Fluxgate Magnetometer
Product Description
MCL-5 is new Total field Magnetometer to fluxgate rule and controlled by computer, mainly used for iron ore exploring. It can measure two parameters: Total field and Vertical field. When measuring the total field, the back shelf is backing on body to measure, operation conveniently.
Specification
|
Measurement range
|
-80000nT-+80000nT
|
Remeasure error
|
≤ 10nT
|
|
resolution
|
1 nT
|
Temperature factor
|
10 PPM/oC
|
|
Sensor
|
Vertical component over cross error≤±30nT
|
Total field
|
Over cross error(sensor slope≤30o
|
|
Memory
|
5000 points
|
Display
|
160*128 LCD
|
|
Power
|
8V4AH lithium battery
|
Work temperature
|
-10oC~+50oC
|
|
Work cost
|
200mA-290mA
|
Host Dimension
|
225×180×80(mm)
|
|
Sensor dimension
|
125×75(mm)
|
Sensor weight
|
1kg
|
