Quick Details
-
Model Number:
-
WD-2900-24P4X, WD-2900-24T4X, WD-2900-24S8C4X, WD-2900-48T4X, WD-2900-48P6X
-
Place of Origin:
-
Guangdong, China
-
Input:
-
100-220V AC
-
UNI:
-
8 GE
-
Uplink:
-
2 GE
-
POE/ Type:
-
L-3 lite switch
-
Size:
-
280*180*44
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Brand Name:
-
WODATA
-
Model Number:
-
WD-2900-24P4X, WD-2900-24T4X, WD-2900-24S8C4X, WD-2900-48T4X, WD-2900-48P6X
-
Place of Origin:
-
Guangdong, China
-
Input:
-
100-220V AC
-
UNI:
-
8 GE
-
Uplink:
-
2 GE
-
POE/ Type:
-
L-3 lite switch
-
Size:
-
280*180*44

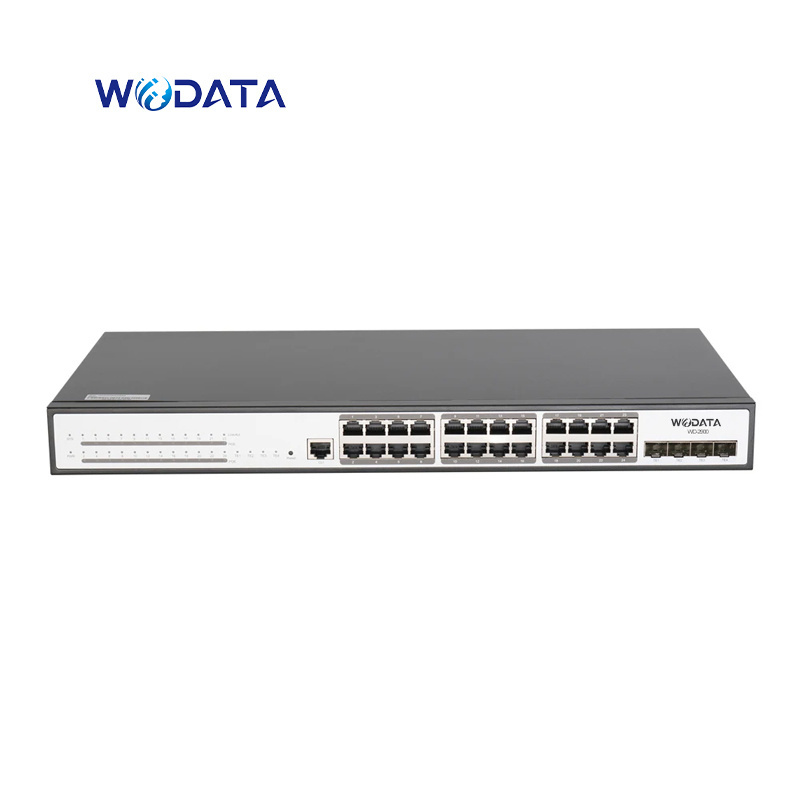

Innovative Virtual Cluster Switching Technique
WD2900 L3-lite Series is a next-generation aggregation 10GE switch int roduced by Wodata. It is targeted at the IP MAN (metropolitan area network), government and enterprise networks, Internet café and disk less working environment. It is developed on the basis of high performance hardware and BDROS software platform with Wodata own independent intellectual property rights. It supports functions such as powerful ACL, flflexible QinQ, 1:1 or N:1 VLAN switching, Ethernet
OAM, carrier-level QoS and industry-level 10GE Ether-ring, ensuring this switch series meets application requirements in all kinds of complicated sites. It also supports layer-3 routing protocol.
OAM, carrier-level QoS and industry-level 10GE Ether-ring, ensuring this switch series meets application requirements in all kinds of complicated sites. It also supports layer-3 routing protocol.
WD2900 L3-lite Series virtualizes multiple physical devices into one. The performance, reliability and management of the virtual system are superior to the physical ones. Improved Performance: BVSS makes full use of each link in the physical devices, which avoids STP blocking the link and protects the original link to the maximum extent. High Reliability: Based on the advanced distribution mechanism and effificient cross-physical link aggregation link function, the logic control plane, service control plane and service data plane are separated. Thus, WD2900 L3-lite Series can support continuous layer-3 routing forwarding, avoiding service interruption as a result of a single point of failure. Easy Management: BVSS realizes single IP management, greatly improving the networking effificiency and lowering the operating cost.
WD-2900-24P4X
WD-2900-24S8C4X
WD-2900-24T4X
WD-2900-48T4X
WD-2900-48P6X
|
Item
|
WD-2900-24T4X
|
WD-2900-24S8C4X
|
WD-2900-24P4X
|
WD-2900-48T6X
|
WD-2900-48P6X
|
|||||
|
Interface
|
24 GE TX
4 10GE/GE SFP+ |
16 100/1000M SFP
8 GE SFP/TX combo
4 10GE/GE SFP+
|
24 GE POE
410GE/GE SFP+
|
48 GE TX
6 10GE/GE SFP+ |
48 GE TX
6 10GE/GE SFP+ |
|||||
|
Console(RJ45)
|
1
|
1
|
1
|
1
|
1
|
|||||
|
Backplane(Gbps)
|
128
|
128
|
128
|
216
|
216
|
|||||
|
Forwarding rate
|
96
|
96
|
96
|
162
|
162
|
|||||
|
Package（mm）
|
500x320x80
|
576x448x94
|
555x295x88
|
576x448x94
|
576x448x94
|
|||||
|
Weight(KG)
|
3.9
|
5.2
|
4.1
|
5.5
|
6.1
|
|||||
|
Power supply
|
45W
|
45W
|
410W
|
50W
|
450W
|
|||||
|
Total output BTU
|
153.58
|
153.58
|
1392.49
|
163.82
|
1535.84
|
|||||
|
Fan number
|
/
|
2
|
2
|
2
|
2
|
|||||
|
Noise(dBA)
|
0
|
45
|
37.5
|
45
|
45
|
|||||
|
MTBF(H)
|
>200,000
|
>200,000
|
>200,000
|
>200,000
|
>200,000
|
|||||
|
Flash (MB)
|
16
|
|
|
|
|
|||||
|
MAC
|
16K
|
|
|
|
|
|||||
|
Buffer size(MB
|
1.5
|
|
|
|
|
|||||
|
Interface vlan
|
64
|
|
|
|
|
|||||
|
Routing table
|
512
|
|
|
|
|
|||||
|
Ordering Information
|
|
|
|
|
|
|||||
|
WD-2900-24T4X
|
Ethernet Layer-3 lite switch with 24 GE and 4 10GE ports (1 Console port, 24 GE TX ports, 4 10GE/GE SFP+ ports; 100 to 240 VAC input, 60 HZ , fanless, 1U, standard 19-inch rack-mounted installation)
|
|
|
|
|
|||||
|
|
Ethernet Layer-3 lite switch with 24 GE and 4 10GE ports (1 Console port, 16 100M/1000M SFP ports, 8 GE SFP/TX combo ports, 4 10GE/GE SFP+ ports; 100 to 240 VAC input, 60 HZ, the cooling fan, 1U, standard 19 inch rack-mounted installation)
|
|
|
|
|
|||||
|
|
Ethernet Layer-3 lite POE switch with 24 GE ports and 4 10GE ports (1 console port, 24 GE POE TX ports, 4 10GE/GE SFP ports; standard AC220V power supply, 370W POE power, the cooling fan; 1U; standard 19-inch rack-mounted installation)
|
|
|
|
|
|||||
|
|
Ethernet Layer-3 lite switch with 48 GE and 6 10GE/GE SFP+ ports (1 Console port, 48 GE TX ports, 6 10GE/GE SFP+ ports; 100 to 240 VAC input, 60 HZ, the cooling fan, 1U, standard 19 inch rack mounted installation)
|
|
|
|
|
|||||
|
WD-2900-48P6X
|
Ethernet Layer-3 lite POE switch with 48 GE ports and 6 10GE/GE ports (1 console port, 48 GE POE TX ports, 6 10GE/GE SFP+ ports; standard AC220V power supply, 370W AC POE power, 740W DC POE power, the cooling fan; 1U; standard 19-inch rack-mounted installation)
|
|
|
|
|
|||||
