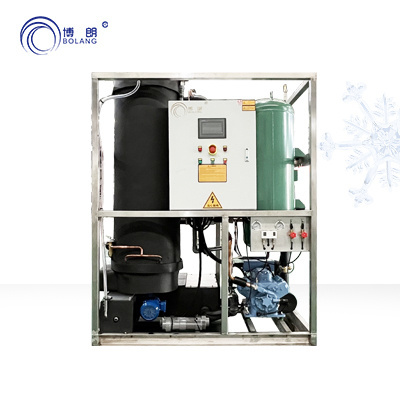

BLG ice machine 5 ton per day quality energy-saving Automatic 5000kg ice tube maker tube ice machine BOLANG water cooling

BLG ice machine 5 ton per day quality energy-saving Automatic 5000kg ice tube maker tube ice machine BOLANG water cooling

FOB Reference Price: Get Latest Price

≥1 Pieces

US $16900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Ice storage capacity:: Other

Place of Origin:: Jiangsu, China

Brand Name:: BOLANG

Dimension(L*W*H):: various

Weight:: 2300 KG

Product:: 5ton

Cooling way:: Air Cooling Water Cooling

Ice Type:: Tube Shape

Refrigerant:: R507/R404A

Material:: Stainless Steel 304

After-sales Service Provided:: Online Technical Support

After Warranty Service:: Within One Year

Certification:: CE ISO

Compressor:: Germany Brand Bitzer

Ice Storage:: Avaible

Quick Details

Ice Shape:: tube ice

Voltage:: 380V/50HZ/3p

Power:: 380v

Ice storage capacity:: Other

Place of Origin:: Jiangsu, China

Brand Name:: BOLANG

Dimension(L*W*H):: various

Weight:: 2300 KG

Product:: 5ton

Cooling way:: Air Cooling Water Cooling

Ice Type:: Tube Shape

Refrigerant:: R507/R404A

Material:: Stainless Steel 304

After-sales Service Provided:: Online Technical Support

After Warranty Service:: Within One Year

Certification:: CE ISO

Compressor:: Germany Brand Bitzer

Ice Storage:: Avaible

FEATURES AT A GLANCE

* The technical data based on

30°C ambient temp

20°C water inlet temp. * The evaporating / condensing temp.:-15C/40°C(Air-cooled) 38°C(Water cooled) * Power supply: 3P/380V/50HZ(3P/220/60HZ,3P/380V/60HZ,3P/460V/60HZ Optional) * Refrigerant: R404A(R22 R17 R507 is optional) * Ice tube diameter: Φ22,Φ29,Φ34,Φ42 is optional

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

Item	Item Name			Parameters
1	Name			ice tube machine
2	Model			BL-G50
3	Quantity			1 Pcs.
4	Daily output			1 ton/day
5	Weight			2300kg
6	Dimension			1900mm×1240mm×2400mm
	Ice dimension			ϕ19，ϕ22，ϕ28，ϕ34
7	Refrigerant			R404a
8	Evaporating temp.			-15℃
9	Condensation temp.			+40℃
10	Necessary cooling capacity			51.0 kW
11	Input water temp.			16~21℃
12	Ambient temp.			+43℃
13	Compressor	Model	Semi-hermetic Piston type
		Brand name	Bitzer/Refcomp
		Type	6HE-28Y(28HP)/SP6L2700（27HP）
		Amount & Power	1Pcs*21.6 kW
14	Circulation Pump Power			0.55 kW
15	Ice cutting motor Power			2.2 KW
16	Fan power(Air condenser)			0.75 kW
17	Total input power			1.1 KW
18	Voltage			33 kW
19	Control system			PLC Germany Siemens

Ancillary Equipment

Water Filter,Packing machine,Cold room

FAQ

1. What if I buy your ice machine, but I cannot find the solution for the problem? All Bolang ice plants come out with 12 months full warranty. If the machine breaks down in 12 months, Bolang will send the parts for free. 2. Whats the deliver time of your machine? Leadtime is 6 weeks upon the receipt of down payment.(based on the electricity 380V/50Hz/3p, some special design lead time will be longer) 3. Whats the payment method you accept? Pay via Alibaba, T/T, LC, In Cash, Western Union, Money Gram. 50% TT prepaid and the balance paid before shipment .50% Down payment should be remitted by T/T in five days against the date of contract; 50% payment should be remitted by T/T 4. How to install the machine ? a. manual book and video will be provided to guide you how to install the machine, and also our service online b. technician can be sent to customer's site too, while the round ticket, visa, accommodation is at customer cost, Installation fee 100 USD/day/person. Local labors are necessary to support our technician's work. 5. Failure Claim procedures a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure. b. Relevant pictures are required for failure confirmation. c. BOLANG engineering and after-sales service team will check and form a diagnosis report. d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
