Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SIGNAL
-
Model Number:
-

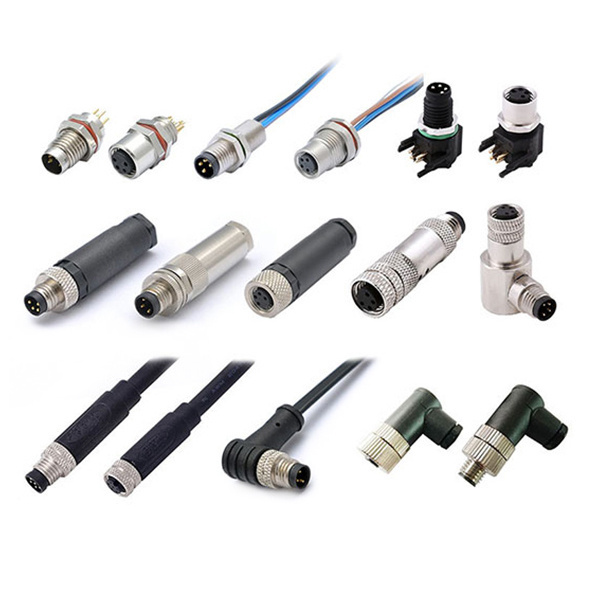

M8 Series Connectors(waterproof)
-
Coding:
-
A,B,D
-
Certification:
-
CE,RoHs,UL,IP68
-
Locking type:
-
Assembly,over-molded,panel mount
-
Rated voltage:
-
Normal low voltage
-
Number of contacts:
-
3pin,4pin,5pin,6pin,8pin
-
Material:
-
Plastic,metal
-
Contact Plating:
-
Gold
Quick Details
-
Type:
-
Assembly
-
Application:
-
factory automation, process control, industrial instrumentation
-
Gender:
-
Male or female,Male to Female,Male to Male,Female to Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SIGNAL
-
Model Number:
-
M8 Series Connectors(waterproof)
-
Coding:
-
A,B,D
-
Certification:
-
CE,RoHs,UL,IP68
-
Locking type:
-
Assembly,over-molded,panel mount
-
Rated voltage:
-
Normal low voltage
-
Number of contacts:
-
3pin,4pin,5pin,6pin,8pin
-
Material:
-
Plastic,metal
-
Contact Plating:
-
Gold
Products Description
Product Parameters
|
Number of contacts
|
3
|
4
|
4A-coding
|
4D-coding
|
5
|
6
|
8
|
||||||
|
Termination
|
solder / PCB / moulded on cable / screw clamp
|
|
|
|
|
|
|
||||||
|
Wire gauge
|
0.14/0.25/0.34 mm
2
/ (26/24/22 AWG)
|
|
|
|
|
|
|
||||||
|
Cable OD
|
3~7.2mm
|
|
|
|
|
|
|
||||||
|
Operating temperature
|
-25°C~+85°C
|
|
|
|
|
|
|
||||||
|
Mechanical operation
|
＞100mating cycles
|
|
|
|
|
|
|
||||||
|
Rated voltage
|
50V AC/60V DC/60V/30V
|
|
|
|
|
|
|
||||||
|
Rated current
|
3A / 4A / 1.5A
|
|
|
|
|
|
|
||||||
|
Protection degree
|
IP67 / IP68
|
|
|
|
|
|
|
||||||
|
Contact resistance
|
＜5mΩ
|
|
|
|
|
|
|
||||||
|
Insulation resistance
|
≥100mΩ
|
|
|
|
|
|
|
||||||
|
Pin contact
|
CuZn
|
|
|
|
|
|
|
||||||
|
Socket contact
|
CuSn
|
|
|
|
|
|
|
||||||
|
Contact platimg
|
Au
|
|
|
|
|
|
|
||||||
