Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HON MING
-
Dimension(L*W*H):
-
760*455*235mm
-
Weight (KG):
-
38 KG
-
Product name:
-
HON MING Brand Central air conditioner fan coil
-
Function:
-
Cooling and heating
-
Fan type:
-
Horizontal ceiling concealed mounted
-
Air flow:
-
170-340m3/h
-
Noise:
-
37-52dB(A)
-
Heat exchanger:
-
Hydrophilic aluminum foil fins
-
Weight:
-
12Kg
-
Keyword:
-
Fan coil unit
-
Heating capacity:
-
2700W
-
Cooling capacity:
-
1800W
Quick Details
-
Type:
-
Fan Coil Unit
-
Mounting:
-
Ceiling Mount
-
Airflow:
-
300m³/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HON MING
-
Dimension(L*W*H):
-
760*455*235mm
-
Weight (KG):
-
38 KG
-
Product name:
-
HON MING Brand Central air conditioner fan coil
-
Function:
-
Cooling and heating
-
Fan type:
-
Horizontal ceiling concealed mounted
-
Air flow:
-
170-340m3/h
-
Noise:
-
37-52dB(A)
-
Heat exchanger:
-
Hydrophilic aluminum foil fins
-
Weight:
-
12Kg
-
Keyword:
-
Fan coil unit
-
Heating capacity:
-
2700W
-
Cooling capacity:
-
1800W

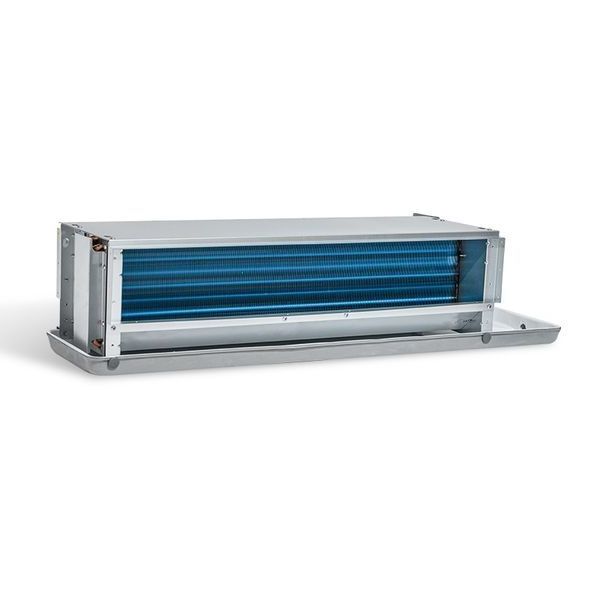

Fan Coil
HON MING horizontal concealed fan coil units are mainly composed of power module, control module, drive module,brushless DC motor coil heat exchangers. It is a high-tech energy-saving product, which is quiet, comfortable, energy-saving, environmental protection, especially suitable for high-end hotels.
One product can meet the national standards of electromagnetic compatibility and power factor, easily realize digital control and adapts to the current international development trend of energy saving and environmental protection.
It is the terminal device of the central air conditioning system . And t he fan sends indoor air or outdoor mixed air through the air cooler to be cooled or heated, then sends the air into the room to lower or raise the indoor temperature to meet people's comfort requirements.
Fan coil design condition:
1.Cooling capacity as following.
1)Water temperature: 7 C( inlet )/12C ( outlet) or customized
2)Air entering condition: 27 C DB/19.5C WB or customized
2.Heating Capacity as following(with same water flow rate as cooling cycle):
1)water temperature: 60C( inlet) or customized
2)Air entering condition: 21C DB or customized
3.The air volume is tested under entering air condition of 20 C DB and dry coil condition.
4.The sound pressure level is based on 11.5d B(A)anechoic room background noise.
5.The manufacturer reserves the rights to make changes to the above specification without notice.
| Model | Air flow (m3/h) | Cooling power (w) | Heating power (w) |
| FP-200 | 340 | 1800 | 2700 |
| FP-300 | 510 | 2700 | 4050 |
| FP-400 | 680 | 3600 | 5400 |
| FP-500 | 850 | 4500 | 6750 |
| FP-600 | 1020 | 5400 | 8100 |
| FP-800 | 1360 | 7200 | 10800 |
| FP-1000 | 1700 | 9000 | 13500 |
| FP-1200 | 2040 | 10800 | 16200 |
| FP-1400 | 2380 | 12600 | 18900 |
HON MING Brand Central air conditioner fan coil HON MING Brand Central air conditioner fan coil
HON MING Brand Central air conditioner fan coil HON MING Brand Central air conditioner fan coil
Main Features
1) Simple structure&easy installation
2) Adopt advanced world famous brand components
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution.
