- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
4250*1900*2700mm
-
Weight:
-
3600 KG
-
Product name:
-
drum branch crusher organic fertilizer diesel wood chipper shredder
-
Raw material:
-
Straw Grass Wood Branches
-
Application:
-
Cutting Forestry Wood Log Waste
-
Capacity:
-
4000-5000kg/h
-
Keywords:
-
Large forestry machinery
-
Blades:
-
6 Alloy Steel Blades
-
Max. log diameter:
-
30cm
-
Feature:
-
Petrol wood crusher machine
-
Chips size:
-
1-3cm
-
Advantage:
-
Low Power Consumption
Quick Details
-
Use:
-
wood chipper
-
Place of Origin:
-
China
-
Brand Name:
-
zhangsheng
-
Dimension(L*W*H):
-
4250*1900*2700mm
-
Weight:
-
3600 KG
-
Product name:
-
drum branch crusher organic fertilizer diesel wood chipper shredder
-
Raw material:
-
Straw Grass Wood Branches
-
Application:
-
Cutting Forestry Wood Log Waste
-
Capacity:
-
4000-5000kg/h
-
Keywords:
-
Large forestry machinery
-
Blades:
-
6 Alloy Steel Blades
-
Max. log diameter:
-
30cm
-
Feature:
-
Petrol wood crusher machine
-
Chips size:
-
1-3cm
-
Advantage:
-
Low Power Consumption

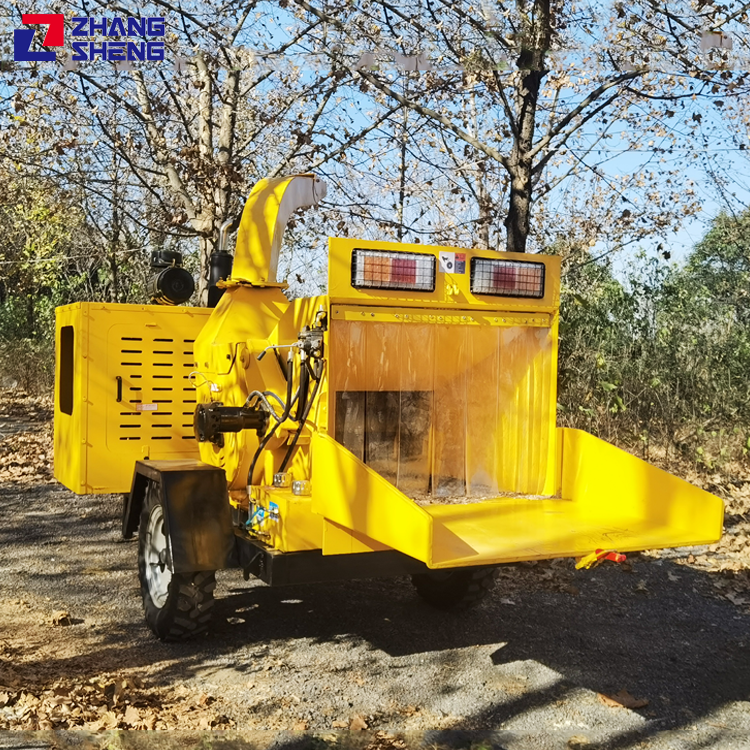

As one of our best sellers, this 1050/1063 model wood chipper has a large diameter drum rotor, which can directly process wood near to 30cm diameter. The discharge port can be adjusted to face any direction within 360 degrees, and the discharge spray distance can reach 3m. Finished wood chips can be sprayed directly onto trucks. Equipped with a 2-inch tow ball and all-steel car wheels, a 4ton equipment can be easily towed by a small car. The hydraulic feeding system can reduce the occurrence of feeding phenomenon and make feeding safer and more efficient. The 1000 model wood chipper can produce wood chips up to 5 tons per hour.
|
Items
|
800
|
1050
|
1063
|
1263
|
1585
|
1585X
|
|||||
|
Max. wood log diameter (mm)
|
150
|
250
|
300
|
350
|
430
|
480
|
|||||
|
Engine type
|
Diesel engine/Motor
|
|
|
|
|
|
|||||
|
Diesel Engine Power
|
54HP4 cyl.
|
102HP
4 cyl.
|
122HP
4 cyl.
|
184HP
6 cyl.
|
235HP
6 cyl.
|
336HP
6 cyl.
|
|||||
|
Cutting Drum Size（mm）
|
Φ350*320
|
Φ480*500
|
Φ630*600
|
|
Φ850*700
|
|
|||||
|
Blades qty. on cutting drum
|
4pcs
|
4pcs
|
6pcs
|
6pcs
|
9pcs
|
9pcs
|
|||||
|
Feeding Type
|
Manual feed
|
|
|
|
Metal conveyor
|
|
|||||
|
Shipping way
|
5.8 cbm by LCL
|
9.7 cbm
by LCL
|
10.4 cbm
by LCL
|
11.5 cbm
by LCL
|
20ft container
|
|
|||||
|
Packing way
|
plywood case
|
Heavy Plywood case+steel frame
|
|
|
no
|
|
|||||
With hydraulic forced feeding system, The feeding speed can be adjusted to meet the crushing of materials with different diameters. The higher the gear, the faster the speed and the higher the output
Automatically monitor the work load of crushing mechanisms. When the load exceeds the alarm value, automatically reduce the feeding speed or stop feeding to avoid the stuck.
Through the operating lever, you can manually control the press roll forward, backward and stop. If plugging occurs in the crushing work, the feed can be stopped at any time or spit/backward discharge, to ensure the safety of use
The intelligent operation panel displays the operating conditions of the whole machine (oil volume, water temperature, working hours, etc.) in time to find abnormalities and reduce maintenance. Reliable and convenient starting at the turn of a key.
Equip good Chinese local brand 102 HP, 4 cyl. diesel engine. We also support Cummins & Perkins brand diesel engine. EPA Tier 3 or tier 4 also available.
Equipped with 360°adjustable chute and 2.5m discharge distance, allowing users to directs the flow of chips where they want.
1.The machine's discharge nozzle, tires and other parts that are easily reinstalled will be disassembled to reduce the transportation volume and save transportation costs.
2.The machine body will be wrapped with wrapping film to prevent moisture and scratches, and to assist in fixing the machine.
3.The packing box has a built-in iron frame to improve the loading strength and prevent the goods from being crushed due to stacking.
4.The parts in the wooden box will be individually reinforced to avoid collisions.
Installation and maintenance guidance videos, product operation manuals and online guidance services will be provided to allow you to install and use the product without worry.
The product warranty period is one year. For the failure caused by the quality defect of the equipment itself, we provide free replacement parts service within 1 year (except for wearing parts). After 1 year, wearing parts and accessories will be provided at preferential agency prices.
Established in 2005, Henan Zhangsheng Environmental ProtectionEquipment Company is headquartered in Zhengzhou City,HenanProvince.,and obtained both lSO and CE certification.The productshave been widely exported to more than 60 countries and get a lot of praise from customers. Our main product is wood recycling equipment. including wood chipper shredders, wood crushers,feed pellet machine,wood pellet machine,horizontal grinder, tub grinder etc.
3 sets of high-power laser cutting machines can meet the material preparation work of 1,000 sets per month.
5 imported CNC lathes, with fast processing speed and high precision of workpieces.
Five dynamic balancing machines ensure that the rotors of each crusher are accurately calibrated.
Has an assembly workshop of 5,000 square meters Meet the monthly production task of 1,000 units.
As a professional OEM and exporter of wood chippers, Zhangsheng has exported to more than 45 countries. We have the entire series of Diesel Powered wood drum chippers. From the feeding mode, we have self-feeding wood chipper and hydraulic feeding wood chipper. All wood chippers have CE certification of TUV-SUD and TUV-Rheinland. The total number of wood chippers exported to Europe and North America each year is more than 1000 units.
Q1:What payment methods do you accept?
Q3:What if the machine is damaged?
One-year warranty and comprehensive after-sales service. After this period, we will charge a lower fee to maintain after-sales service.
Q4:Where is the market for the product and where is the market advantage?
Our market covers the entire Middle East and European and American countries, and exports to more than 34 countries. In 2019, domestic sales exceeded RMB 23 million. The export value reached 12 million U.S. dollars. Moreover, sales have increased for three
consecutive years. The product quality and new product research and development capabilities of Zhangsheng Machinery are worthy of your trust. And the perfect TUV-CE certificate and reliable pre-sales and after-sales service are what we have been working hard to do.
We support various payment methods, we can accept 20% or 30% as deposit. If it is a return order, we can receive 100% payment by copy B/L.
Q2:How long is your delivery time?
We have more than 1500 square meters of spot inventory workshop, and it usually takes 5-10 days for goods with sufficient inventory. If you need to customize the equipment, it takes 20-30 days. We will do our best to deliver as soon as possible.
Q2:How long is your delivery time?
We have more than 1500 square meters of spot inventory workshop, and it usually takes 5-10 days for goods with sufficient inventory. If you need to customize the equipment, it takes 20-30 days. We will do our best to deliver as soon as possible.
Q3:What if the machine is damaged?
One-year warranty and comprehensive after-sales service. After this period, we will charge a lower fee to maintain after-sales service.
Q4:Where is the market for the product and where is the market advantage?
Our market covers the entire Middle East and European and American countries, and exports to more than 34 countries. In 2019, domestic sales exceeded RMB 23 million. The export value reached 12 million U.S. dollars. Moreover, sales have increased for three
consecutive years. The product quality and new product research and development capabilities of Zhangsheng Machinery are worthy of your trust. And the perfect TUV-CE certificate and reliable pre-sales and after-sales service are what we have been working hard to do.
