Quick Details
-
Panel Size:
-
35 X 30CM
-
Light Color:
-
pink off white on
-
Brightness:
-
above 75CD
-
Thickness:
-
0.2-0.5mm
-
Lifetime:
-
above 8000hrs
-
Certificate:
-
CE & ROHS & SGS
-
Working voltage:
-
110V-240V
-
Green product:
-
no radialization and no heat
Quick Details
-
Model Number:
-
EL backlight panel, EL backlight
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
shengfeng
-
Panel Size:
-
35 X 30CM
-
Light Color:
-
pink off white on
-
Brightness:
-
above 75CD
-
Thickness:
-
0.2-0.5mm
-
Lifetime:
-
above 8000hrs
-
Certificate:
-
CE & ROHS & SGS
-
Working voltage:
-
110V-240V
-
Green product:
-
no radialization and no heat

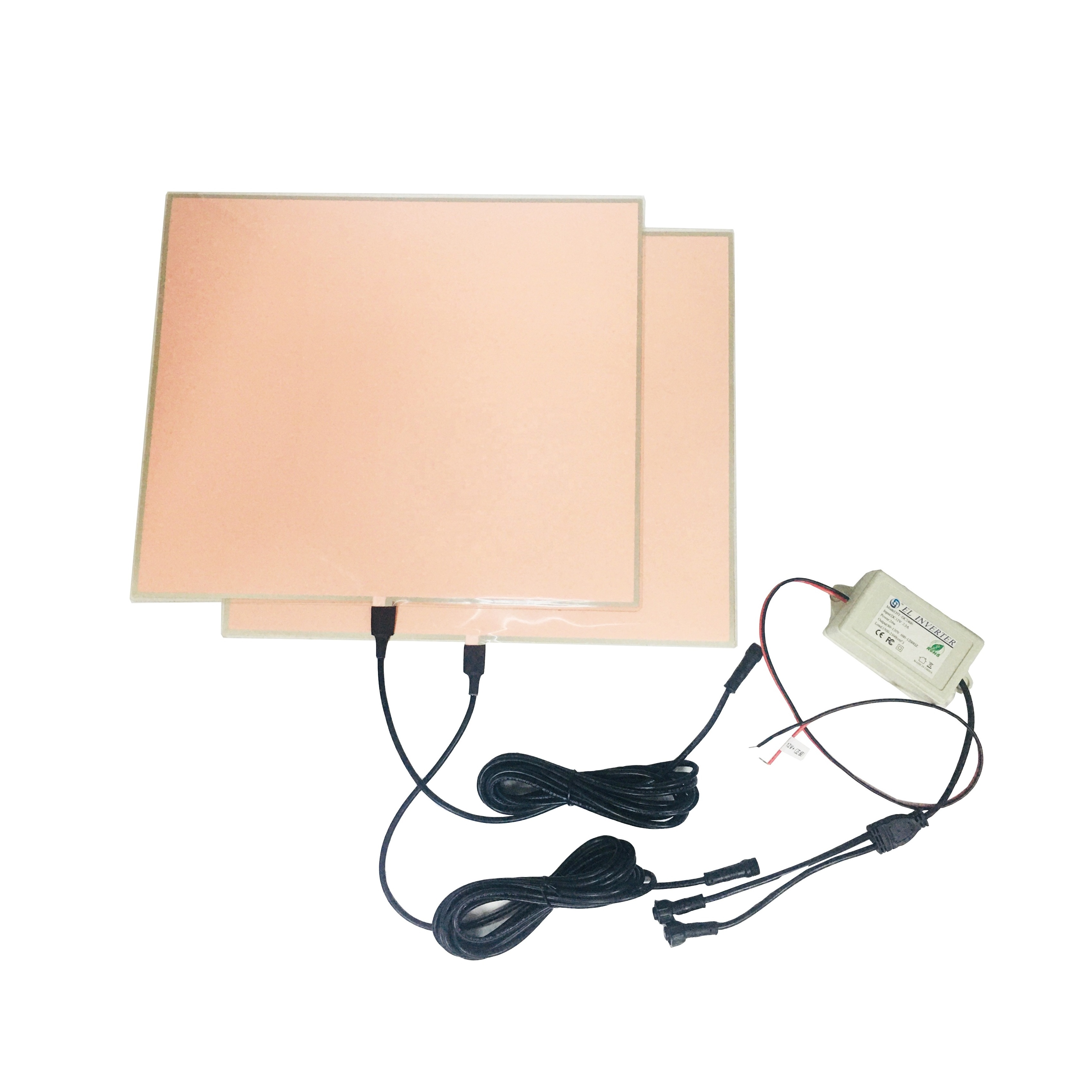

Product photo:
Specifications
1,El Backlight 2,high brightness:80-150cd/sq.cm 3,green product,no radialization 4,size:A0 A1 A2 A3 A4 A5,custom 5,CE,SGS
Custom High brightness El Backlight
Advantages of Electroluminescent backlight:
Flexible
Size and shape can be customized
Super thin<0.5mm
No heat generate when working
Soft light,harmless to eyes
No radiation,eco-friendly
Long working life time:more than 8,000 - 10,000 hours
Low power consumption,smaller than LED
Stable penetrability,visible from a great distance
Any designs,different shapes are available
On/Off switch,sound activated or movement control
Specification of the el backlight :
Material: ROHS material,free from ultraviolet radiation
Luminance: 100-150cd/m2
Voltage: Input DC12V,DC24V,AC110-240V
Size:according to customer's requirement
Thickness:according to customer's requirement(about 0.3-0.5mm,minimum can be<0.1mm
Shape: customized
Working temperature: -30 degree to 50 degree
Bending range:rolled in diameter of 10 cm (minimum)
Feature of the el backlight:
Wide viewing angle and plane solid light origin
Ultra-thin&light weight.Thickness is less than 0.5mm
Bendable-it can still give off light even under the bending situation (10cm in diameter)
Rich in color - different colors are available
Low power consumption and long life span-not heat is generated with the cold light
Flexibility - it can be made into many shapes
High visibility:even under smoky and foggy situation.And no ultraviolet radiation is generated
Tender light - its gentle light won't do harm to your eyes
the parameter of el backlight
|
A thickness |
0.20 ~ 0.45 mm |
|
A current |
less than 0.2 mA / 2 cm |
|
A capacitance |
0.20 ~ 0.65 nf/cm 2 |
|
A life |
5000-15,000 Hrs (shine). |
|
A brightness and wavelength |
110V: AC / 400Hz conditions |
|
COLOR |
BLUE, Blue green,Green,Yellow green,White |
|
the best working voltage |
AC 60 ~ 110V |
|
the best work power |
400-1000HZ |
|
working temperature |
- 30 °c ~ + 65 ° c |
|
storage temperature |
- 65 °c ~ + 85 ° c |
