Quick Details
-
Product name:
-

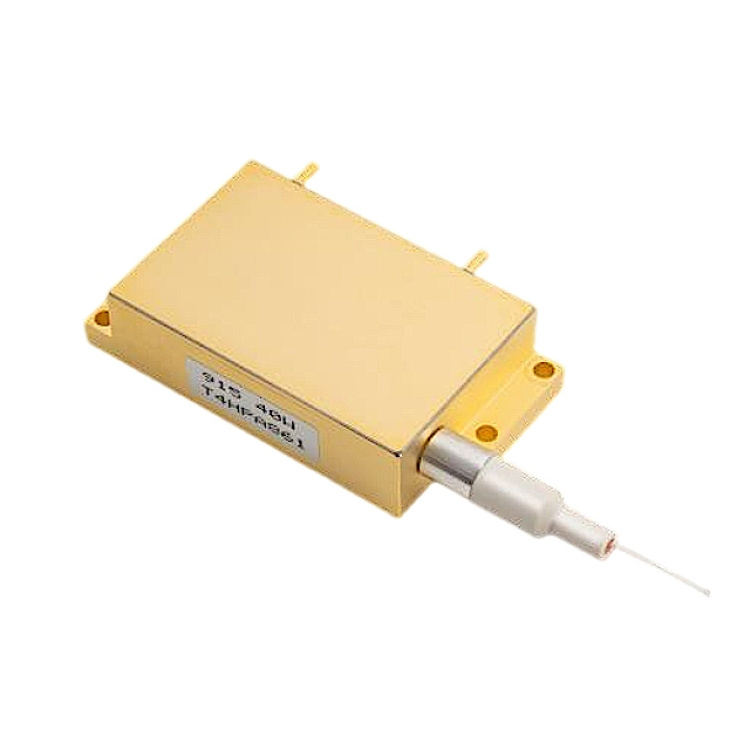

Uncooled Multimode Laser Diode Module
-
Application:
-
Pump source material processing
-
Output power (W):
-
10W/20W/30W/40W/60W
-
Local Service Location:
-
None
-
warranty period:
-
1 year
-
After Warranty Service:
-
Online support Spare parts Field maintenance and repair service
Quick Details
-
Place of Origin:
-
Hubei, China
-
Spare Parts Type:
-
Diode Module
-
Weight (KG):
-
0.5 KG
-
Product name:
-
Uncooled Multimode Laser Diode Module
-
Application:
-
Pump source material processing
-
Output power (W):
-
10W/20W/30W/40W/60W
-
Local Service Location:
-
None
-
warranty period:
-
1 year
-
After Warranty Service:
-
Online support Spare parts Field maintenance and repair service
Product i ntroduction
Fiber coupling diode lasers. Such diode lasers can be widely applied to numerous fields, such as fiber laser pump source, solid laser pump source, industrial processing, cosmetic plastic surgery, night vision lighting, testing and scientific research. The optical output diode laser as based on multi-coupling technical schemes and thermal control can satisfy users’ special requirements for power, brightness, wavelength control and power-weight ratio. The product covers a wavelength of 792nm~975nm, and is provided with wide optional power range.
Product a pplication
Medical Printing Lighting pump source Material processing
Product specification
| Output Power(CW) | 10 | 20 | 30 | 40 | 60 | 60 | W |
| Centre Wavelength | 792-975 | 792-975 | 792-975 | 808 | 808 | 915-975 | nm |
| Spectral Width(FWHM) | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | nm |
| Operating Current | <12.5 | <12.5 | <12.5 | <12 | <12 | <13 | A |
| Operating Voltage | 1.7 | 3.6 | 5.4 | 9.0 | 12.5 | 10.5 | V |
| Threshold Current | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | A |
| Convention Efficiency | 45 | 45 | 45 | 45 | 45 | 45 | % |
| Slop Efficiency | 0.9 | 0.8 | 2.6 | 3.5 | 4.5 | 5.4 | W/A |
| Core Diameter | 105 | 105 | 105 | 200 | 200 | 105 | μm |
| Numeric Aperture | 0.15,0.22 | 0.15,0.22 | 0.15,0.22 | 0.22 | 0.22 | 0.22 | |
| Fiber length | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | M |
| Proestion Tube | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | nm |
| Fiber Bend Radius | 37.5 | 37.5 | 37.5 | 50 | 50 | 37.5 | nm |
| Package | T1 | T3 | T3 | T5 | T8 | T60W | |
| Operating Temperature | 15-35 | ℃ | |||||
| Storage Temperature | -30_70 | ℃ | |||||
| Humidity | 5-85 | % | |||||
| Wavelength shift vs. Temperature | 0.3 | nm/℃ | |||||
| Wavelength shift vs.Current | 0.7 | nm/A | |||||
