Quick Details
-
Brand Name:
-
Xindray
-
Model Number:
-
XR-EEG9
-
Sampling Rate:
-
200 Hz
-
Input Impedance:
-
More Than 10
-
Magnification Multiple:
-
10000
-
Power Supply:
-
220V, 50kHz
-
Display Speed:
-
5, 10, 15, 30, 60, 120 mm/S
-
ODM:
-
Available
-
Filter constant:
-
All digital and free enactment
-
A/D transformation:
-
12 bits
-
After-Sales Service:
-
Whole Using Lifetime
-
OEM:
-
Available
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Free spare parts
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xindray
-
Model Number:
-
XR-EEG9
-
Sampling Rate:
-
200 Hz
-
Input Impedance:
-
More Than 10
-
Magnification Multiple:
-
10000
-
Power Supply:
-
220V, 50kHz
-
Display Speed:
-
5, 10, 15, 30, 60, 120 mm/S
-
ODM:
-
Available
-
Filter constant:
-
All digital and free enactment
-
A/D transformation:
-
12 bits
-
After-Sales Service:
-
Whole Using Lifetime
-
OEM:
-
Available

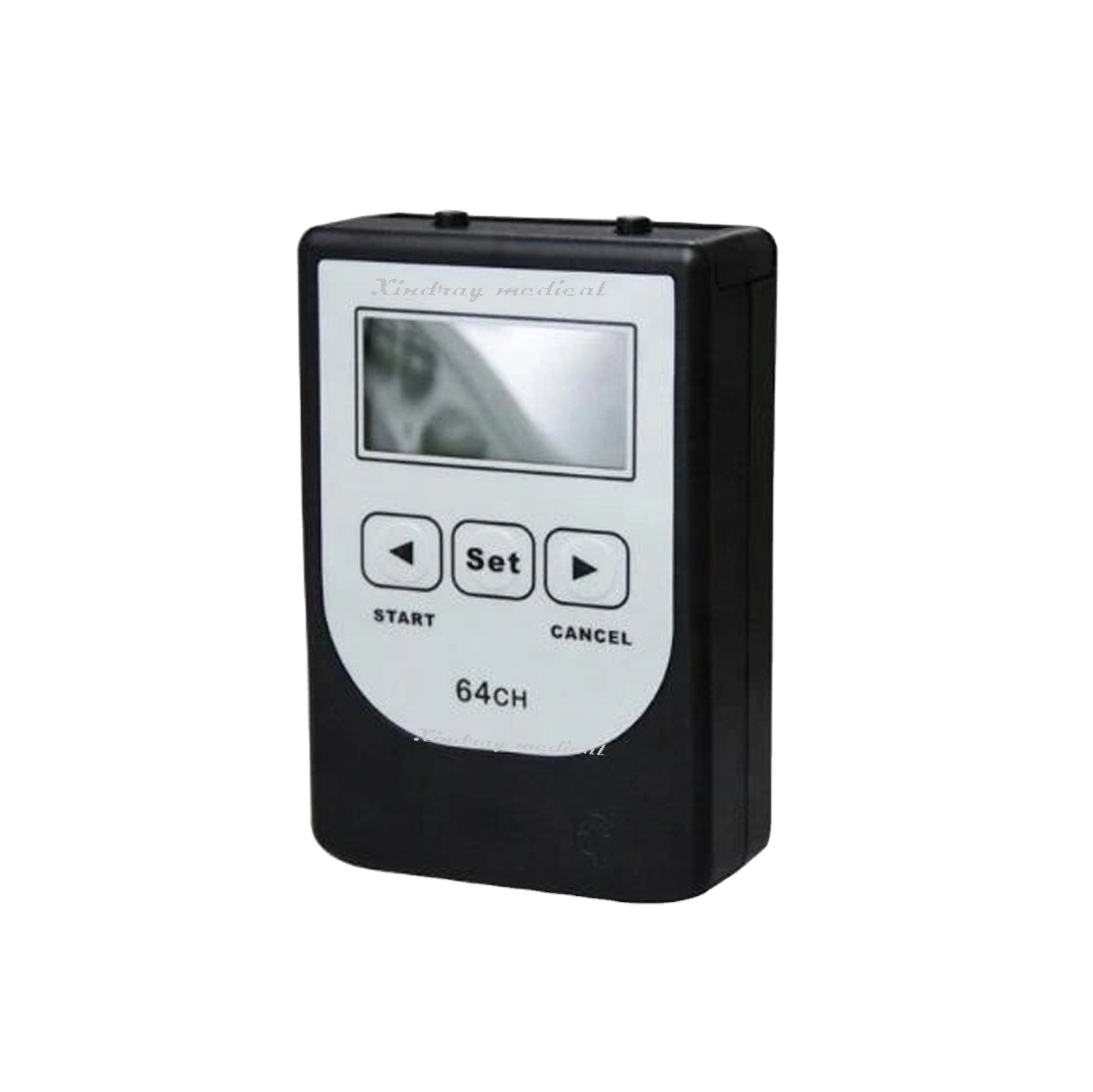

Full Digital Cheap Medical Digital Electroencephalogram EEG Price
Features:
1.Compact design - portable and easy to carry.
3.User-friendly operation.
4.Low power consumption - capable of supporting up to 72 hours recording with four AA batteries.
5.Supports real-time EEG waveform recording, display via Wi-Fi.
6.Dynamic recording with Flash memory card.
7.All-in-one electrode cable for easy connection.
8.Use of DC power supply:
Eliminates risk of electric shock to patients
Prevents signal interference
Removes the need to use ground wire or other shielding features
9.Fast data uploading capability - stored data in Flash memory card can be quickly transferred to the computer through USB2.0/USB 1.1 Interface.
Specifications:
1.Color of waveforms is in accordance to color of events.
2.Instant event-marking with hot keys.
3.EEG channels can be arbitrarily set-up - customizable channels layout during collection process and playback analysis.
4.Channel Customization - Simple and intuitive.
5.Events markers during recording - for timing of seizures and abnormal wave occurrences.
6.Event localization during playback - marked events are listed and can be traced.
7.Real-time EEG tendency chart synchronized with EEG waveform acquisition.
8.EEG Tendency Chart with the following parameters displayable:
Energy curve Energy peak frequency
Peak value frequency Relative Energy
Side frequency index Absolute Energy
Medium frequency index Coma Index
Channel: Different 24,32,64,128,256 channels of EEG+optional 5 channels of multi-parameter (1channel of ECG+ 1channel of EMG+ 2 channels of EOG +1channel of Breath)(multi-parameter are optional)
Sampling rate: 200 Hz
A/D transformation: 12 bits
Input impedance: ≥ 10MΩ
Patient leak current: < 10µ A
Noise level: ≤ 5µ Vp-p
CMRR: ≥ 90dB
Magnification multiple: 10000
Filter constant: All digital and free enactment
Display speed(paper speed): 5, 10, 15, 30, 60, 120 mm/s
Amplitude: 1, 1.5, 2, 3, 5, 7.5, 10, 12, 15, 20, 30, 50 mm/50µ V
Playback speed: 1 time, 2 times, 3 times, 10 times, 20 times, 40 times, 60 times
50Hz interference suppression: ≥ 30dB
Safety type: Class II, type BF applied part
