Quick Details
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
9000
-
Drive Wheel:
-
4X2
-
Place of Origin:
-
Hubei, China
-
Product name:
-
HOMAN tipper truck, HOMAN dump truck, HOMAN dumper truck
-
Engine:
-
YUCHAI, 129HP, 160HP
-
Loading capacity:
-
3 tons, 4T, 5 tons, 8 tons, 10 tons or more.
-
Transmission:
-
Manual Control, 8 forwards, 1 reverses
-
Drive type:
-
4x2, 4X4 6 wheels, 6 wheeler
-
Drive Model:
-
Right Hand drive, RHD; Left hand drive, LHD
-
Tipper Volume:
-
6M3, 8M3, 10M3, 12cbm, 18cbm, 20cbm etc
-
Emission:
-
Euro-2, Euro-3, Euro-4, Euro-5 etc
-
Cabin:
-
With 1, 2 sleeper Bed, or Without Sleeper Bed
-
Hydraulic System:
-
HYVA brand or Chinese Famous Brand
Quick Details
-
Condition:
-
New
-
Horsepower:
-
150 - 250hp
-
Emission Standard:
-
Euro 3
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
9000
-
Drive Wheel:
-
4X2
-
Place of Origin:
-
Hubei, China
-
Product name:
-
HOMAN tipper truck, HOMAN dump truck, HOMAN dumper truck
-
Engine:
-
YUCHAI, 129HP, 160HP
-
Loading capacity:
-
3 tons, 4T, 5 tons, 8 tons, 10 tons or more.
-
Transmission:
-
Manual Control, 8 forwards, 1 reverses
-
Drive type:
-
4x2, 4X4 6 wheels, 6 wheeler
-
Drive Model:
-
Right Hand drive, RHD; Left hand drive, LHD
-
Tipper Volume:
-
6M3, 8M3, 10M3, 12cbm, 18cbm, 20cbm etc
-
Emission:
-
Euro-2, Euro-3, Euro-4, Euro-5 etc
-
Cabin:
-
With 1, 2 sleeper Bed, or Without Sleeper Bed
-
Hydraulic System:
-
HYVA brand or Chinese Famous Brand
Sinotruk HOMAN 4x2 Small dumper Tipper Dump Truck For Sale , Sinotruk HOMAN 4x2 5 tons 6 wheels dumper Tipper Dump Truck price
Cabin:1880 cabin with one sleeper
without A/C
Engine: YC4102ZLQ-129HP
, Euro
Ⅱ emission standard
Gearbox: WLY145H 5 forwards &1 reverse Front axle:1090N 3tons drum brake
Rear axle:153AS 9tons drum brake Tire: 8.25R20,with one spare tire Without ABS
With cargo body
With 110 double lifting cylinder Size:3850×2100×800mm
Bottom:4mm Side:3mm
|
Item No. |
Parameters |
|
Overall Dimension |
6295x2386x2850 mm |
|
Gross Vehicle Weight |
4290 kg |
|
Curb weight |
2600 kg |
|
Loading capacity |
8000-10000 kg |
|
Front axle loading capacity |
1x2630 kg |
|
Rear axle loading capacity |
1x6095 kg |
|
Max Driving Speed |
75 km/h |
|
Engine |
YN4102QBZL, 116HP, YUNNEI Engine, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
Engine horsepower |
116 HP |
|
Emission Standard |
Euro II |
|
Displacement |
3.76L |
|
Gear Box |
WLY145H, Manual control, 5 Forwards gear & 1 reverse gear |
|
Fuel Tank |
200L Aluminum alloy fuel tank |
|
Cabin |
Right hand drive , with air conditioner, 70° hydraulically tillable to the front. |
|
Tire |
8.25R16LT Tire , 6 pieces with one spare |
|
Brake |
Service brake: dual circuit compressed air brake Parking brake: spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|
Dump Body Size |
Size: 3850x 2200 x 8 0 0mm, Q345/B High Tension Steel Dump Body, Steel Thickness: bottom 4mm, side & front 3 mm , |
|
Tipping hydraulics |
Middle Tipping, Complete set of Chinese Famous Brand Hydraulics System |

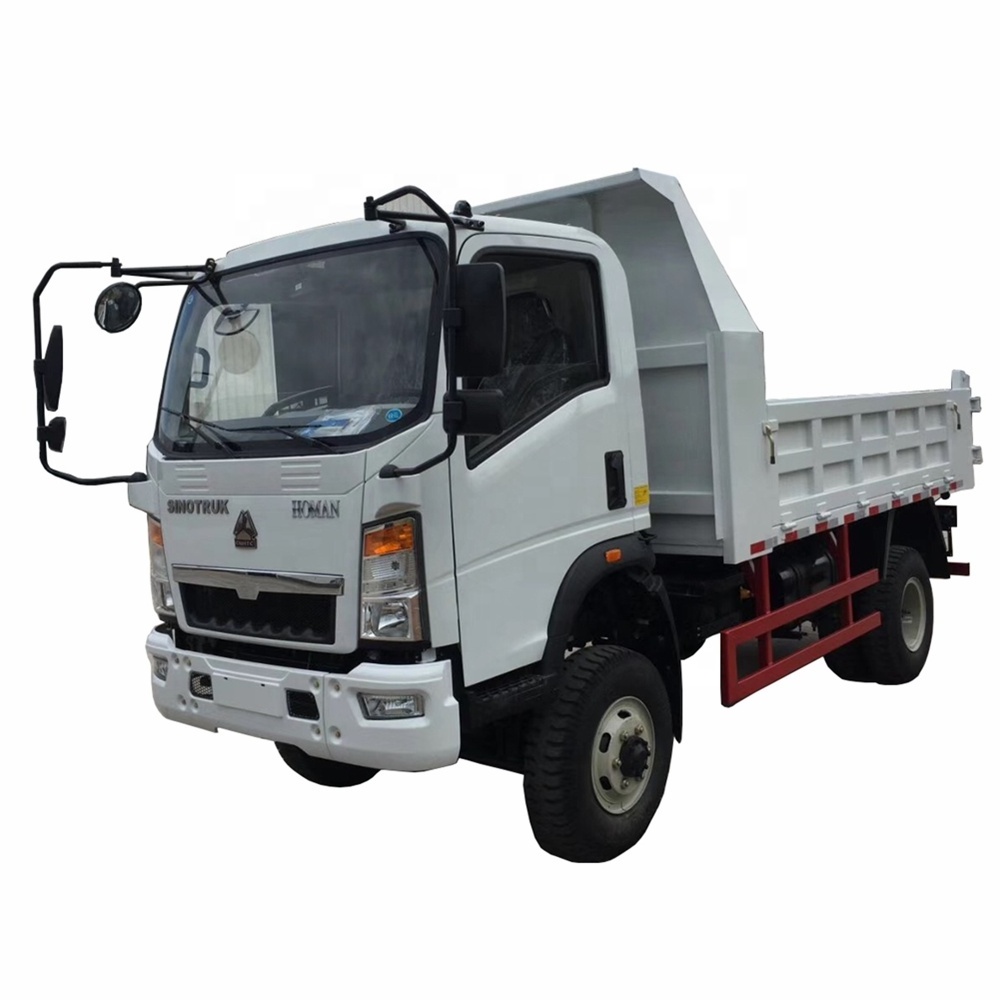

The pictures of Sinotruk HOMAN 4x2 5 tons 6 wheels dumper Tipper Dump Truck price
Why Choose HOMAN Dump Truck?
1. Oil Saving--two kinds of technology route (electric control common rail and EGR), engine characteristic performance curve Improvement, entire car optimizing assembly, empty / full load switch, the latest streamline driving cab reducing wind resistance effectively, reducing self weight by 200--500kg, and etc.
2. Safety--drum brake, tubeless tire, exhaust valve brake technique application, rear axle brake shoe widening, and etc.
3. Driving comfort-- New style air bag seat, four point floating suspension with anti-roll bar, damping device for the cab, double locking seat belt, outside sun shade, drum brake solving brake sway in case of over load, and etc
4. Reliability--all the assembly has passed extremely harsh condition experiments and the verification of over 2 years in bad use condition.
5. Low application cost--large use quantity, complete service and accessory networks and low price.
