Two-vane, semi-open, solids handling impeller handles up to 3" (76 mm) diameter solids, various capacity and delivery head, suitable for different working conditions.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SUOTO
-
Model Number:
-
T
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
1~200HP
-
Cable Length:
-
NA
-
Outlet Size:
-
50~300mm
-
Power:
-
NA, Electric or Diesel
-
Fuel:
-
Diesel
-
Standard or Nonstandard:
-
Standard
-
Usage:
-
Water
-
Theory:
-
Centrifugal Pump
-
Model:
-
T, U, Super T
-
MOQ:
-
1 Set
Quick Details
-
Application:
-
Industrial Utilities, Irrigation and Agriculture, Mining industry
-
Pressure:
-
0.6MPA, Low Pressure
-
Voltage:
-
220V/380V/415V
-
Brand Name:
-
SUOTO
-
Model Number:
-
T
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
1~200HP
-
Cable Length:
-
NA
-
Outlet Size:
-
50~300mm
-
Power:
-
NA, Electric or Diesel
-
Fuel:
-
Diesel
-
Standard or Nonstandard:
-
Standard
-
Usage:
-
Water
-
Theory:
-
Centrifugal Pump
-
Model:
-
T, U, Super T
-
MOQ:
-
1 Set
Products Description

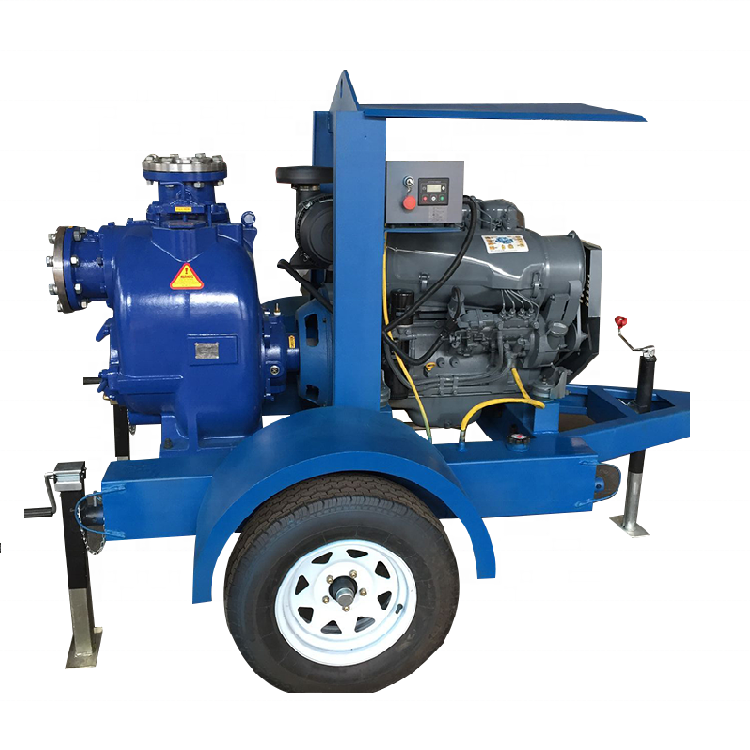

T Series Gorman-rupp Self-priming Trash Pump with Diesel Engine, 2(4) Wheels Trailer Optional
T series self-priming trash pump is our latest generation product base on US technology and craftwork. It is designed for economical & trouble-free operation in handling solid-laden liquids and slurries.
The trash pump is the standard for industrial and sewage applications. The heavy duty construction and easy-to-service
design have made T Series pumps the standard in the industry. The combination of different sized pumps, impeller trims and speed variations ensure that the correct capacity pump will be matched to the exact requirements of your system, whether it's a small sub-division or a large waste collection system. These pumps feature a large volute design that allows them to re-priming automatically in a completely open system without the need for suction or discharge check valves - and they can do it with the pump casing only partially filled with liquid and a completely dry suction line.
The trash pump is the standard for industrial and sewage applications. The heavy duty construction and easy-to-service
design have made T Series pumps the standard in the industry. The combination of different sized pumps, impeller trims and speed variations ensure that the correct capacity pump will be matched to the exact requirements of your system, whether it's a small sub-division or a large waste collection system. These pumps feature a large volute design that allows them to re-priming automatically in a completely open system without the need for suction or discharge check valves - and they can do it with the pump casing only partially filled with liquid and a completely dry suction line.
Main Character
1. beautiful shape and fine structure, reliable performance
2. with strong capacity of self priming, no need to equip with flap valve
3. non-clog , and with powerful capacity of passing big solid
4. The unique lubrication oil mechanical seal cavity makes the performance more reliable
5. The hole can make sure that stronger sewage can be cleaned quickly when pump is jammed.
6. When operate, the pump can self-priming with gas and liquid at the same time.
7. Low rotary speed, reliable operation, long useful life, easily maintenance.
8. Very competitive price, high quality, small MOQ, fast delivery, OEM required, exporting plywood case.
1. beautiful shape and fine structure, reliable performance
2. with strong capacity of self priming, no need to equip with flap valve
3. non-clog , and with powerful capacity of passing big solid
4. The unique lubrication oil mechanical seal cavity makes the performance more reliable
5. The hole can make sure that stronger sewage can be cleaned quickly when pump is jammed.
6. When operate, the pump can self-priming with gas and liquid at the same time.
7. Low rotary speed, reliable operation, long useful life, easily maintenance.
8. Very competitive price, high quality, small MOQ, fast delivery, OEM required, exporting plywood case.
Product Paramenters
|
Inlet/Outlet
|
2”(50mm), 3"(80mm), 4"(100mm), 6"(150mm), 8"(200mm), 10"(250mm), 12"(300mm)
|
|
|
|
Impeller Diameter
|
158.74mm-457.2mm
|
|
|
|
Rotary Speed
|
550RPM-2150 RPM
|
|
|
|
Flow Rates
|
8m3/h-1275m3/h
|
20GPM-5500GPM
|
|
|
Head
|
6m-63m
|
|
|
|
Horsepower
|
1HP-125HP
|
|
|
|
N. W
|
92KG-998KG
|
|
|
|
G. W
|
114KG-1066KG
|
|
|
|
Solid Passing
|
20.63mm-76.2mm
|
|
|
|
Material
|
cast iron, ductile iron, stainless steel, cast steel, aluminum, bronze
|
|
|
|
Diesel Driving
|
Water cooled or air cooled
|
|
|
|
Method of Connection
|
Self-priming pumps are available as basic units or may be flex-coupled, V-belt drivenor engine mounted.
|
|
|
|
Drive Variation
|
Cummins, Deutz, Ricardo, or Chinese Diesel, Electric Motor
|
|
|
|
Skid Mounted on Trailer
|
2 wheels or 4 wheels Trailer/Trailor
|
|
|
|
Package
|
Exporting plywood case
|
|
|
Product Advantages
2"~12" Trash Pumps
Famous Brand Diesel Engine
We have CUMMINS, DEUTZ, HANDA, etc. and other good quality China brand, with different price level for your choice.
Common Base Plate
Cast steel base plate, also used as oil tank. reduce pump set space, compact structure.
Control Panel and Gauges
Smart control panel, with Manual/Auto, Start/Stop buttons. Various gauge for easy operation.
Accessories
Pipes, fittings, valves, battery, etc. all compacted in the pump set, the pump can be used directly after delivery.
Carefully Testing
Each pump set is tested with water before delivery, ensure 100% good quality.
FAQ
Q: Can I chat with you online? What is your company official website?
A: Yes. Our ID is WhatsApp/Wechat: 0086 18301893622, Email/ Skype: info@suotopump.com or Alibaba trade messenger. Our company official website is www.suotopump.com.
Q: What type of company SUOTO is?
A: SUOTO is a manufacture and trading company, has factories in Shanghai and Zhejiang, with export and import license.
Q: What kinds of pumps do you supply?
A: Our products including self-priming trash pump, centrifugal pump, diaphragm pump, submersible pump, chemical pump, oil pump, diesel pump, fire fighting pump, etc.
Q: What is your payment terms?
A: Alibaba Trade Assurance, Western Union, Paypal, T/T, L/C, etc.
Q: Can you provide OEM, ODM service?
A: Yes. We have factories in Shanghai and Zhejiang, we can make products according to your requirements.
Q: Why should we buy from you?
A: We are committed to provide best quality products at minimum delivery time and competitive price. We believe this is what customer wants. We are satified until customers are.
Q: What is your warranty period?
A: We provide one year of unconditional warranty on our products for the manufacturing defects.
Q: What about delivery time?
A: Normally our production time is within two weeks. Please confirm before order.
A: Yes. Our ID is WhatsApp/Wechat: 0086 18301893622, Email/ Skype: info@suotopump.com or Alibaba trade messenger. Our company official website is www.suotopump.com.
Q: What type of company SUOTO is?
A: SUOTO is a manufacture and trading company, has factories in Shanghai and Zhejiang, with export and import license.
Q: What kinds of pumps do you supply?
A: Our products including self-priming trash pump, centrifugal pump, diaphragm pump, submersible pump, chemical pump, oil pump, diesel pump, fire fighting pump, etc.
Q: What is your payment terms?
A: Alibaba Trade Assurance, Western Union, Paypal, T/T, L/C, etc.
Q: Can you provide OEM, ODM service?
A: Yes. We have factories in Shanghai and Zhejiang, we can make products according to your requirements.
Q: Why should we buy from you?
A: We are committed to provide best quality products at minimum delivery time and competitive price. We believe this is what customer wants. We are satified until customers are.
Q: What is your warranty period?
A: We provide one year of unconditional warranty on our products for the manufacturing defects.
Q: What about delivery time?
A: Normally our production time is within two weeks. Please confirm before order.
